Replacing the Starter Rope
and Rewind Spring

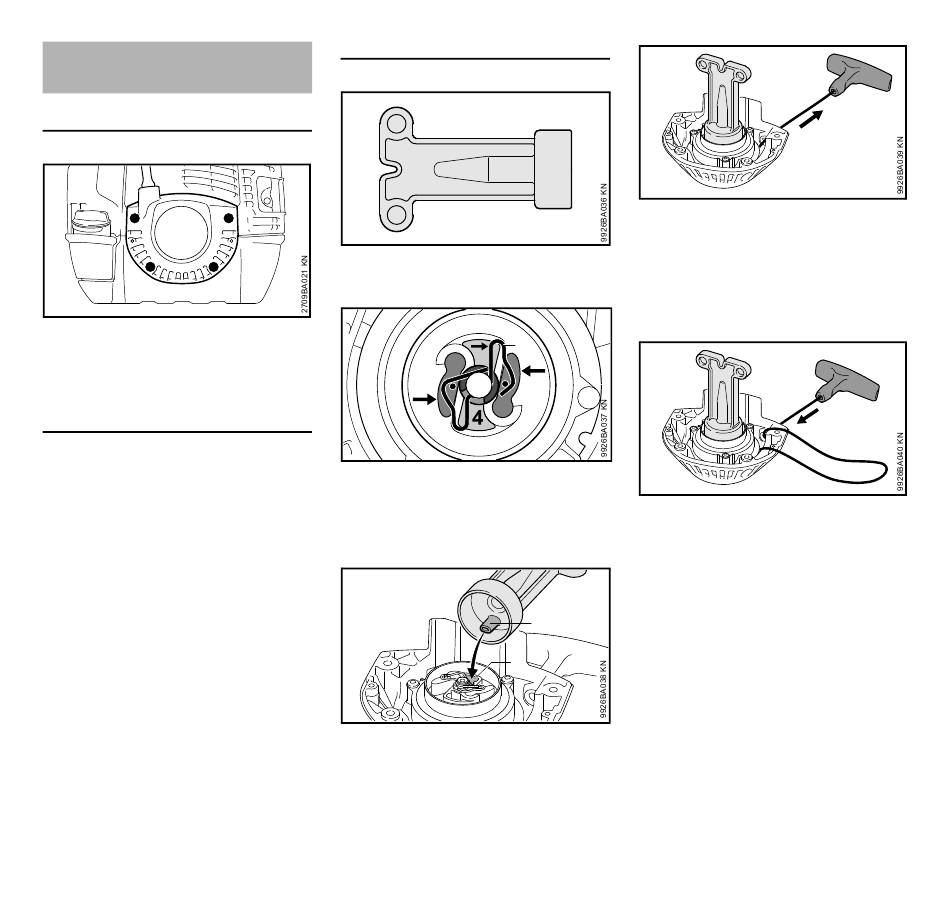

Removing the Rewind Starter
1
1 1
Take out the screws (1).
N
Lift away the rewind starter.
N
Replacing the Starter Rope and Rewind
Spring
If either the starter rope or rewind
N
spring is broken, continue with
"Removing the Rope Rotor".
If either the starter rope or rewind
N
spring are being replaced as a
precautionary measure, continue
with the following chapter.
FS 510 C-M, FS 560 C-M
Releasing Tension on Rewind Spring
1
Use the tensioning wrench. It is
N
available as a special accessory.
If necessary, swing the pawls (2)
N
inwards.
Rotate the spring clip (3) out of the
N
recesses (4) in the carrier (5).
Position the tensioning wrench in
N
the carrier so that the peg (6)
engages one of the recesses (4).
3
2
2
5
6
4
Use starter grip to pull out the starter
N
rope as far as stop.
Hold the tensioning wrench and the
N
starter mechanism steady so that
the rope does not rewind onto the
rope rotor.
Grip the rope inside the housing,
N
pull it out to its full length and make
a loop.
Allow tensioning wrench to rotate
N
slowly and thus release spring
tension – the rope winds itself
around the tensioning wrench in this
process until the spring is no longer
under tension.
Remove the tensioning wrench from
N
the carrier.
