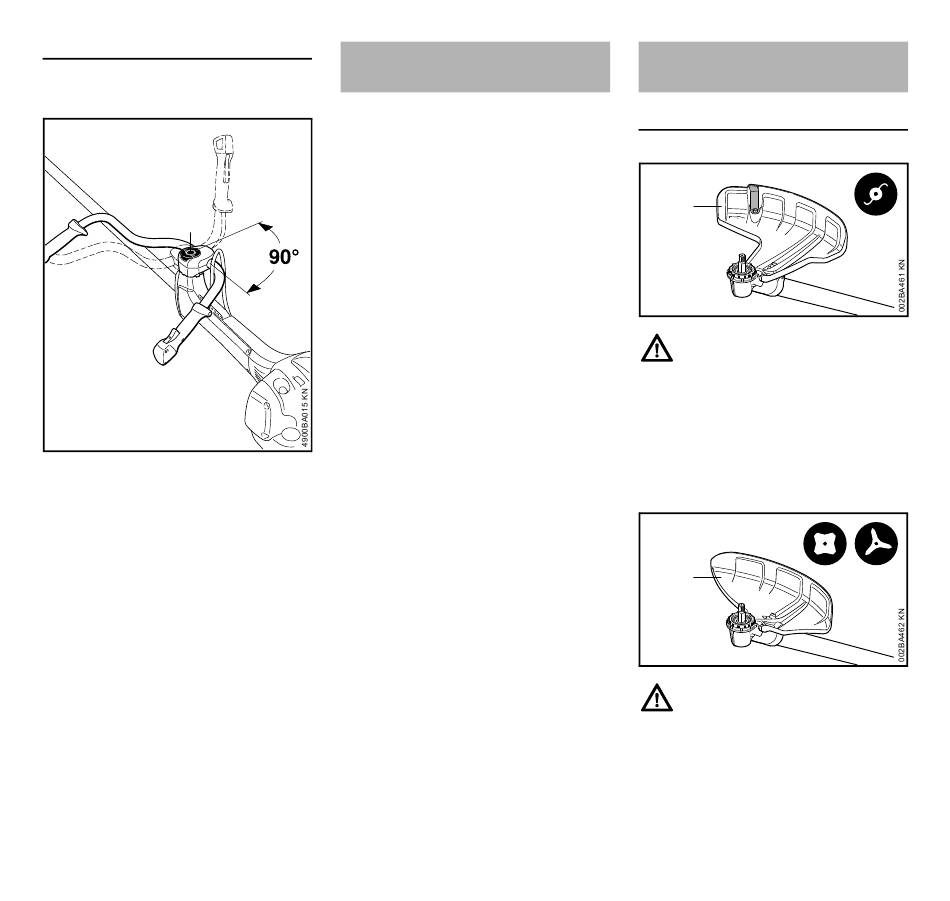

Swiveling the Handlebar
Transport position
2
8
Loosen the wing screw (8) and
N
unscrew it until the handlebar (2)
can be turned clockwise.
Turn the handlebar 90° and then
N
swing the handles down.
Tighten down the wing screw (8)
N
firmly.
Working position
Reverse the sequence described
N
above to swing the handles up and
turn the handlebar
counterclockwise.
FS 510 C-M, FS 560 C-M

Adjusting the Throttle Cable

Correct adjustment of the throttle cable
is a preconditon for correct operation of
the machine in all modes, from starting
to full throttle.
It may be necessary to readjust the
throttle cable after assembling the
machine or after a prolonged period of
operation.
The throttle cable can checked and
–
adjusted by the user: see
"Inspection and Maintenance by
User".
The throttle cable can be checked
–
and adjusted by your dealer. Have
the machine repaired by your
servicing dealer. STIHL
recommends a STIHL servicing
dealer.

Mounting the Deflector

Use the Right Deflector
1
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head.
Recommendation: Use mowing heads
with a grass shield on the gearbox, see
chapters on "Mounting the Deflector" /
"Mounting the Grass Shield".
2
Deflector (2) is approved for grass
cutting blades and brush knives only and
must therefore be mounted before fitting
a grass cutting blade or brush knife.
