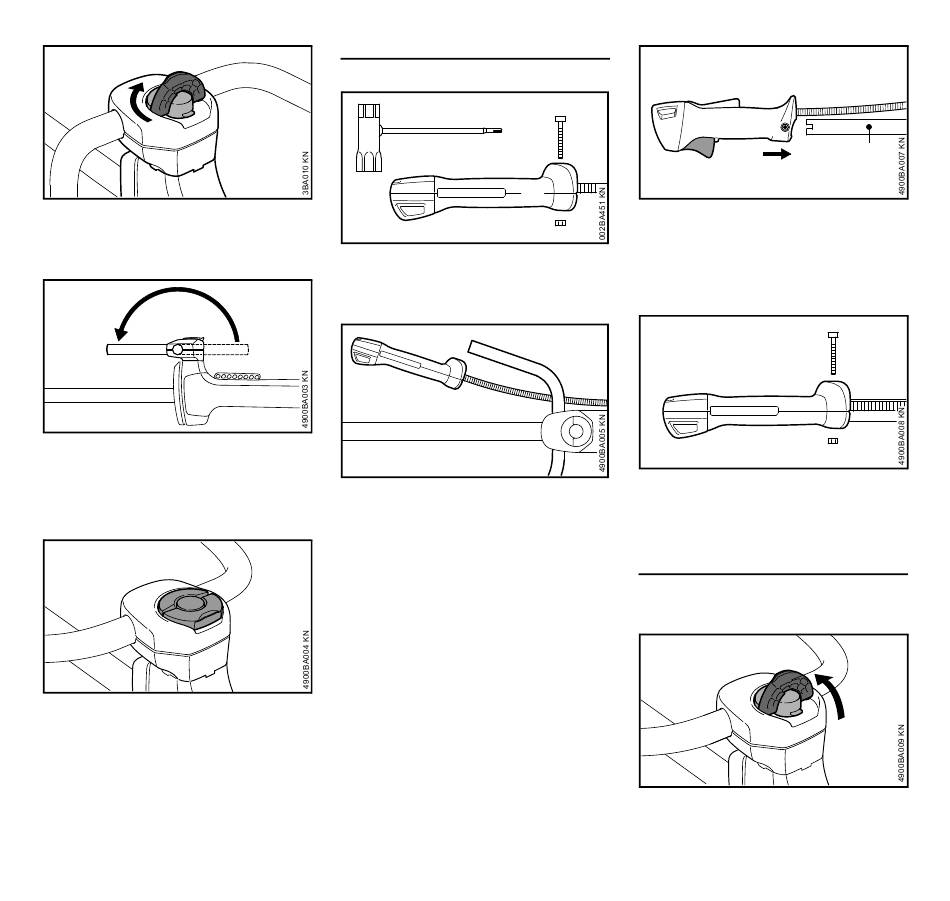

Rotate wing screw clockwise until
N
the lower clamp molding (6) butts
against the handle support (7).
2
Swing the handebar (2) forwards
N
through 180°.
Only tighten the wing screw
N
moderately.
Fold the grip of the wing screw down
N
so that it is flush.
FS 510 C-M, FS 560 C-M
Mounting the Control Handle
Take out the screw (11) and remove
N
the nut (12) from the control handle
(1).
2
13
Hold the control handle in front of
N
the right-hand end of the handlebar
so that the throttle cable (13) is on
the inboard side of the handlebar
(2).
11
14
1
Push the control handle (1) in this
12
N
position onto the end of the
handlebar (2) until the holes (15)
line up – throttle trigger (14) facing
down.
Fit the nut (12) in the control handle,
N
insert the screw (11) and tighten it
down firmly.
Adjusting the Handlebar
Opening the wing screw
Raise the grip of the wing screw to
N
the upright position.
