niveau limitation intensité LAD stop
Avec ce paramètre, le niveau de courant des fonctions
LA Stop et LD Stop sont activées.
Plage de réglage:
10--150 %
LA Stop protège le variateur de fréquence contre les
mises en sécurité par surintensité pendant l'accélération.
LD Stop protège le variateur de fréquence contre les
mises en sécurité par surintensité ou surtension pendant
la décélération.
Le niveau de tension est ajusté par P.14. La sélection
des fonctions pouvant être activées est donnée par
P.13.
fonction U/f
Cette fonction permet à l'utilisateur de déterminer si la
caractéristique U/f est effective dès le démarrage, à
l'inversion du sens de rotation ou après Low Speed, ou
si la tension s'établit par rapport à la limitation de
courant jusqu'à ce que la caractéristique U/f soit
rattrapée.
U/f
f
u
U 0, d.2
I
U/f
d.2
I
I max
t
t
f
u
t
t
COMBIVER
COMBIVERT F0
COMBIVER
T F0
T F0
T F0
COMBIVER
COMBIVER
T F0
LAD stop load level
With this parameter the current level, from which the LA-
Stop or LD-Stop function shall be active, is adjusted.
Adjustment range:
LA-stop protects the frequency inverter against switch-
off caused by overcurrent during acceleration.
LD-stop protects the frequency inverter against switch-
off caused by overcurrent or overvoltage during
deceleration.
The voltage level is adjusted with P.14. The selection of
the functions that shall be activated is done with P.13.

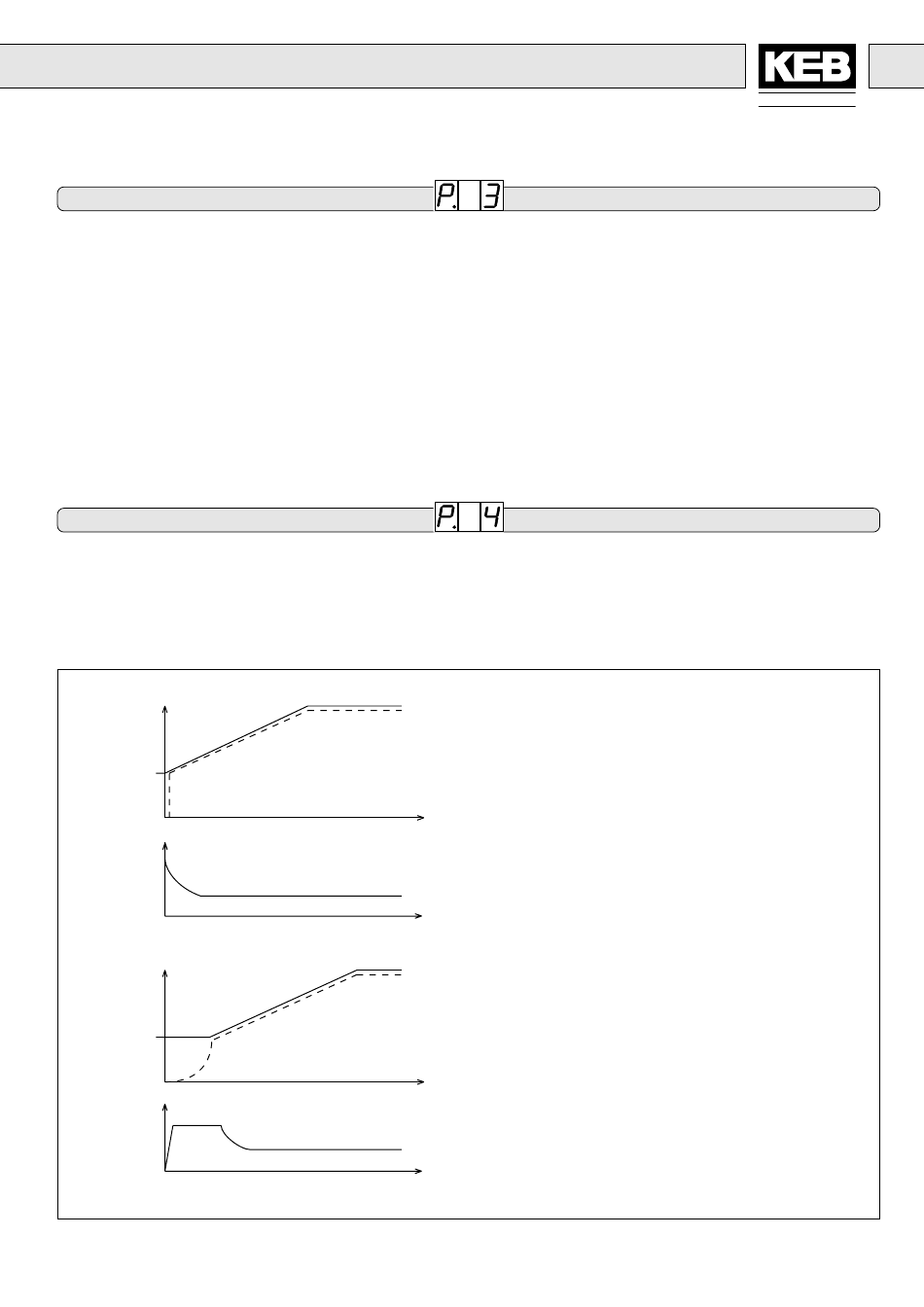

U/f function
This function permits the user to determine whether the
V/Hz characteristic becomes valid immediately at the
start, the reversal or after Low-Speed or whether the
voltage is increased along the current limit until the V/Hz
characteristic is reached.
Parameter P.4 = oFF
Parameter P.4 = oFF
Parameter P.4 = oFF
Parameter P.4 = oFF
Parameter P.4 = oFF
Le variateur démarre directement à la fréquence de sortie
minimum d.2 et la tension U
0
U/f. Le courant augmente très rapidement et peut provoquer
éventuellement un défaut OC.
Inverter starts with the minimum output frequency d.2 and the
voltage U
according to V/Hz characteristic. At that the output
0
current I rises abruptly and could cause an OC error.
Parameter P.4 = on
Parameter P.4 = on
Parameter P.4 = on
Parameter P.4 = on
Parameter P.4 = on
Le variateur démarre directement à la fréquence de sortie
minimum d.2 et augmente progressivement la tension de
sortie en vérifiant que le courant ne dépasse pas la limite
jusqu'à ce que d.2 soit atteint (par ex. démarrage en douceur).
Inverter starts with the minimum output frequency d.2 and
slowly drives up the output voltage at the current limit until d.2
is attained (e.g. for smooth starting).
ANTRIEBSTECHNIK
S O C I E T E
F R A N C A I S E
10—150 %
en fonction de la caractéristique
47
