DRY CONTACTS IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V1.0.0

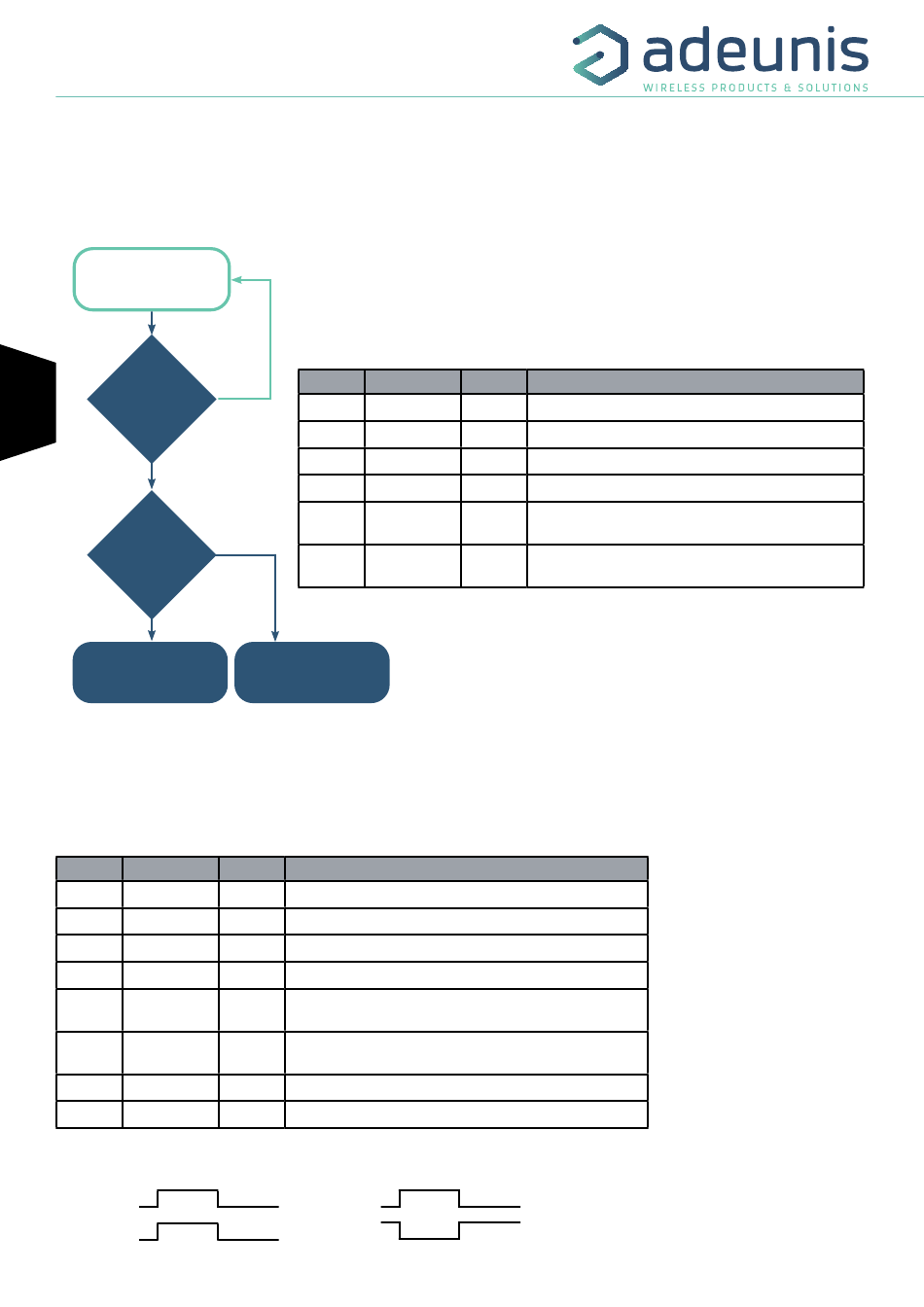

2.5. Application operation - output control

2.5.1 Output(s) linked to an input state - output function

The device enables to configure the control of an output depending of the state of an other input. The device will change the output state if an
event is detected on the linked input.
FR
Product in standby
Change of
EN
state on the
input?
Yes
Impulse of
xx ms con-
figured ?
Yes
Change of state on
the linked output
for xxx ms
To do so, the associated parameters are:
• Correspondence between an output and an input c (registers S344 to S347)
• Configuration of the output modification state (registers S348 to S351)
• Inversion configuration for each channel (registers S352 to S355)
Example:
Register Encoding
S344 Decimal
S345 Decimal
S346 Decimal
S347 Decimal
S348 Decimal
S351 Decimal
S352 Decimal
S355 Decimal
In this example when the input 2 is at 1 the Output 1 is at 1 too, and when the input 3 is at 1 the output 4 is at 0.
Channel 1
Channel 2
Associated parameters for this mode are:
• Configurations of the inputs/outputs (registers S320 to S323)
• Correspondence between an output and an input c (registers S344 to S347)
• Configuration of the output modification state (registers S348 to S351)
Example:
Register Encoding
No
S344 Decimal
S345 Decimal
S346 Decimal
S347 Decimal
S348 Decimal
No
S351 Decimal
In this example the device will change the state of the output 1 during 10 seconds if an event is
Change of state on
the linked output
Value Result
0x02 The output 1 depends on the input 2 state.
0x00 The channel 2 has no dependence with an other channel.
0x00 The channel 3 has no dependence with an other channel.
0x03 The output 4 depends on the input 3 state.
The output 1 will change of state during 10 seconds if an
0x64
event is detected on the input 2.
The output 4 will permanently change of state if an event is
0x00
detected on the input 3.
0x00 The output 1 is in the same state of the input 2
0x01 Le output 4 is inverted compared to the input 3
Channel 3
Channel 4
Value Result
0x02 The output 1 depends on the input 2 state.
0x00 The channel 2 has no dependence with an other channel.
0x00 The channel 3 has no dependence with an other channel.
0x03 The output 4 depends on the input 3 state.
The output 1 will change of state during 10 seconds if an
0x64
event is detected on the input 2.
The output 4 will permanently change of state if an event
0x00
is detected on the input 3.
detected on the channel 2 set as an input. It will also permanently change the
state of the output 4 if an event is detected on the channel 3 set as an input.
It is also possible to specify if the output must be in an inverted state regarding
the linked input state.
