2.5.2 Output commands of the product, change the output state

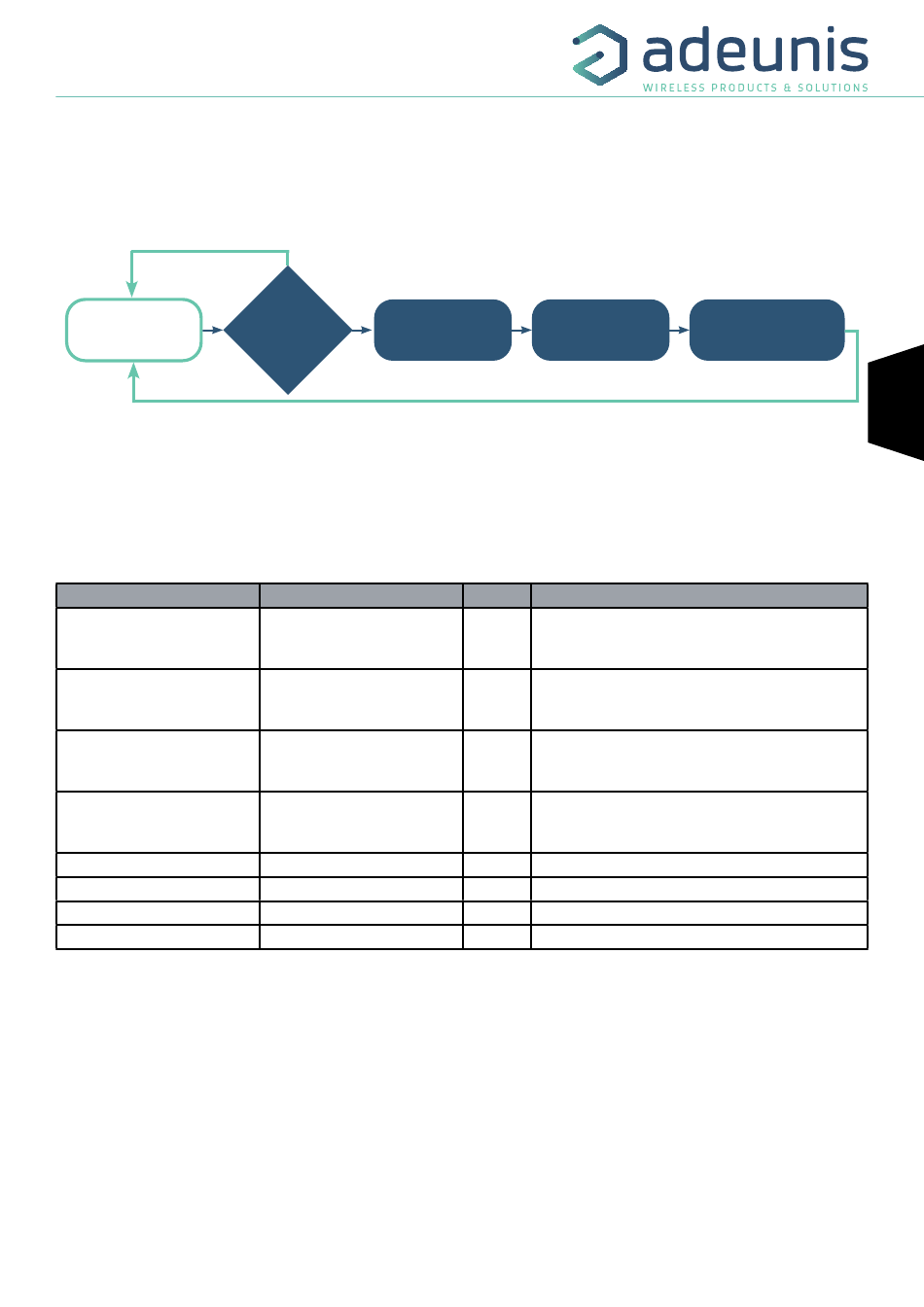

The product enables to configure all or one channel in output state and to pilot it from the network through a 0x06 downlink frame.
For this mode the associated parameters are:
Product in standby
• Configuration of the channels (registers 320 to 323)
• State of the channel configured as output (registers 330 to 333)
Example:
Register
S320
S321
S322
S323
S330
S331
S332
S333
In this example the Channel 2 is configured as an output with a closed state. Thanks to the 0x06 frame the user can open the output remotely.
IMPORTANT NOTE: the state of the output is lost if the product died because of low battery.
No
Event or
Yes
Send a frame 0xXX
waiting
period ?
Encoding value
Hexadecimal
Hexadecimal
Hexadecimal
Hexadecimal
Decimal
Decimal
Decimal
Decimal
Receive 0x06
Value Result
0x73 Configuration of the channel 1:
• Count openings and closings of the dry contact
• Debounce time* of 1 second
0x04 Configuration of the channel 2:
• Output
• No debounce time*
0xB4 Configuration of the channel 3:
• Count closings only
• Debounce time* of 20 seconds
0x32 Configuration of the channel 4:
• Count openings only
• Debounce time* of 50 ms
0 Channel 1 configured as an input
1 Channel 2 configured as an output: state closed
0 Channel 3 configured as an input
0 Channel 4 configured as an input
