Telcoma T600 Notice D'emploi page 49

3e
M1
4a
M1
4b
M1
4c
M1
4d
M1
5
M1
6a
M1
6b
M1
6c
M1
6d
M1
6e
M1 FINE PROG.

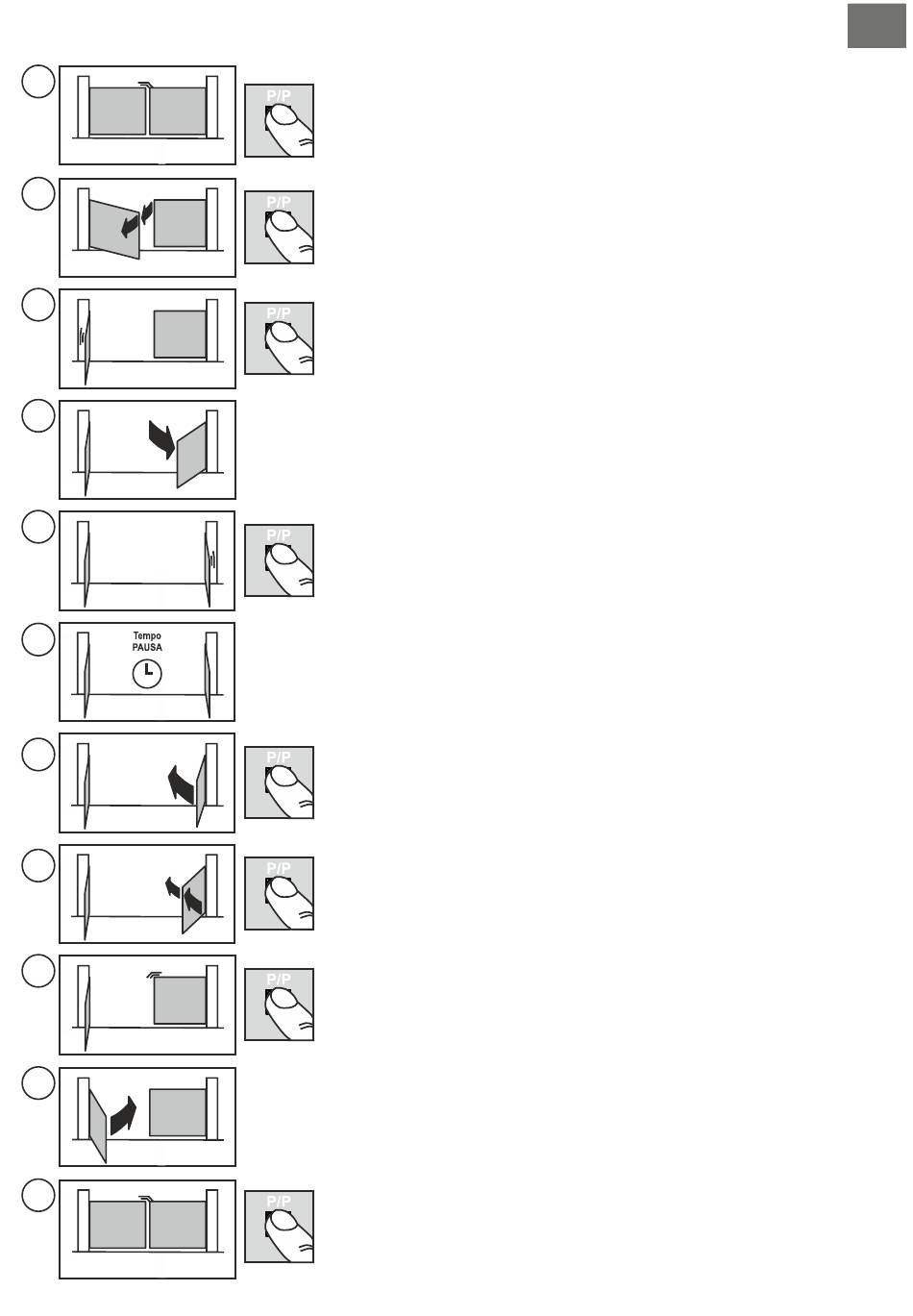

Once M1 has reached the completely closed position, press P/P, the motor will
stop and begin to open automatically.
M2
Press P/P again when M1 has reached the desired gate delay angle, the motor will
stop for a second and then begin to open again.
At this point you must manually insert the DECELERATION start point using
P/P if DIP 9 is set to ON. The motor will stop for a second and then begin to
M2
move again.
When the gate with M1 has opened completely (reaching the mechanical stop)
press P/P to stop the motor, the other motor (M2) will then start to open
automatically.
At this point you must manually insert the DECELERATION start point using
M2
P/P if DIP 9 is set to ON. The motor will stop for a second and then begin to
move again.
M2
When the gate with M2 has opened completely (reaching the mechanical stop)
press P/P to stop the motor, pause time memorisation will start (if automatic
reclosing is not being used you may move directly to point (6a).
M2
M2
Once the desired pause time has elapsed, press button P/P and motor M2 will
begin to close.
M2
Press P/P again when M2 has reached the desired gate delay angle, the motor will
stop for a second and then begin to close again.
At this point you must manually insert the DECELERATION start point using
P/P if DIP 9 is set to ON. The motor will stop for a second and then begin to
M2
move again.
When the gate with M2 has closed completely (reaching the mechanical stop)
press P/P to stop the motor, the other motor (M1) will begin to close.
At this point you must manually insert the DECELERATION start point using
M2
P/P if DIP 9 is set to ON. The motor will stop for a second and then begin to
move again.
M2
When the gate with M1 has completely closed, press P/P, the motor will stop, led
LD1 will switch off and the ECU will quit the programming mode.
Checks: force, times and stopping points. We advise you to consider inserting
deceleration points (DIP 9 set to ON) to reduce impact against the travel limits so
reducing wear and tear on the mechanical parts.
M2
Repeat programming if you have modified the mechanical travel limits.
