Operation
Base mode
After switching on the device and initializing the software,
the start page of the last active operating mode appears.

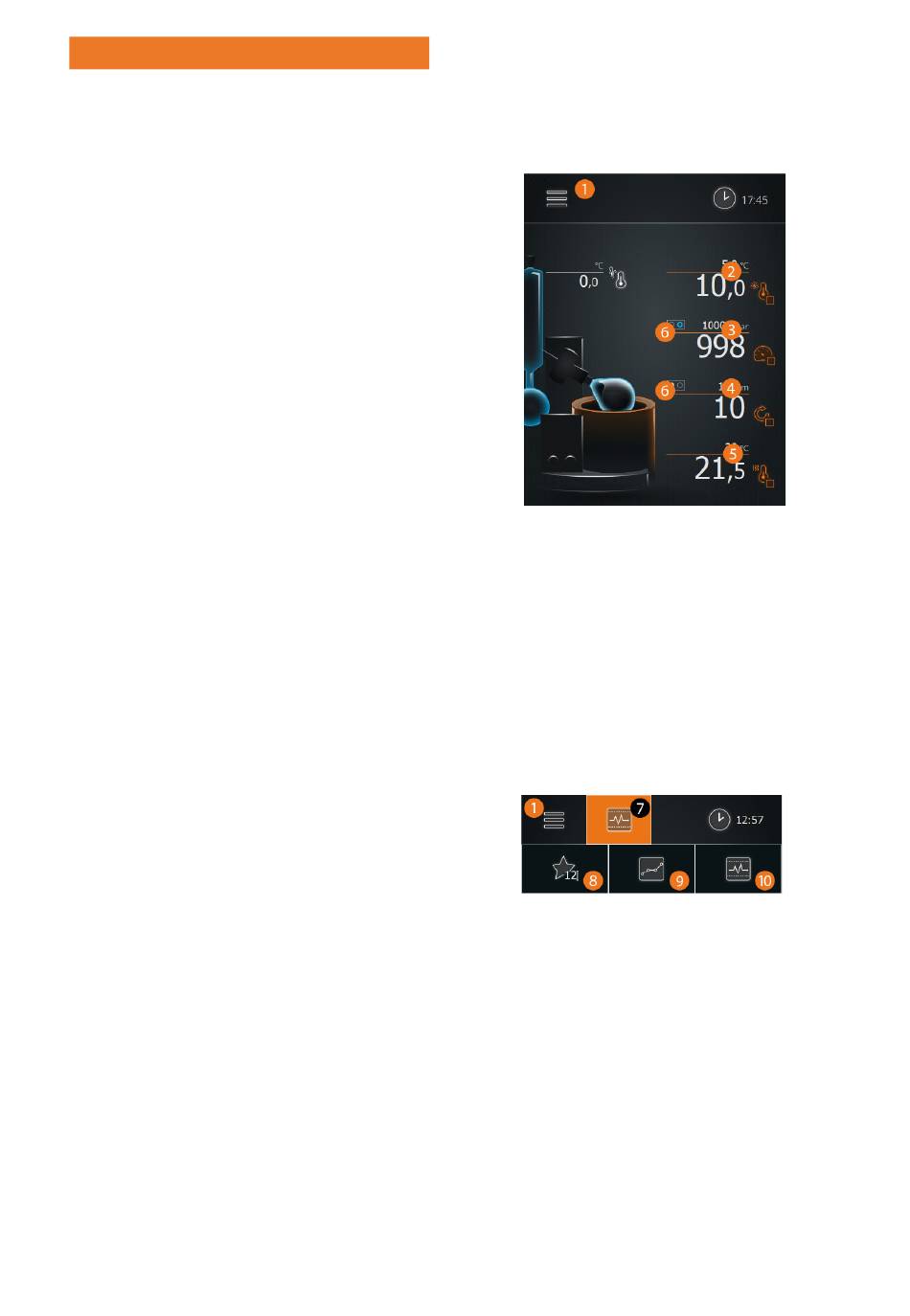

Open the [Main menu] (1), touch the [Applications] function
button and activate the operating mode [Basic].
In the [Basic] mode, the operating parameters vacuum
pressure, rotational speed and heating bath temperature
are entered manually by the operator.
➜
Touch a parameter's field to open the on-screen
keyboard and set a desired value. The input values are
accepted without a security prompt:
–
Coolant temperature (2), -10 – 20 °C
–
Vacuum pressure (3), 1 – 1,400 mbar
–
Rotation speed (4), 10 – 280 rpm
–
Heating bath temperature (5), 20 – 80 °C)
➜
Touch the icons of the parameter displays [Coolant temperature] (2), [Vacuum pressure]
(3), [Rotation] (4) and [Heating bath temperature] (5) to activate (icon changes from
white to yellow) or to deactivate (icon changes from yellow to white) the assigned process
independently of the other processes.
➜
Touch the [Start process] button in the footer to start all processes with the displayed
setpoints at the same time.
–
The function button switches to [Stop process].
➜
Touch the [Stop Process] button in the footer to stop all ongoing processes at the same
time.
–
The function button switches to [Start process]
Operating mode Advanced
After switching on the device and initializing the
software, the start page of the last active operating
mode appears. Open the [Main menu] (1), touch the
[Applications] function button and activate the operating
mode [Advanced].
In the operating mode [Advanced], the following modes can be selected via the function button
[Operating mode] (7) (in the example, Dynamic AUTOaccurate): Favourites (8), ramp profiles
(9) and Dynamic AUTOaccurate (10).
Here, the last active profile or the last active favorite will be loaded by default!
98
