Device description
Device description
Mechanical design
Front view
The Hei-VAP Expert and Hei-VAP
Ultimate variants have an identical
design, but are equipped with different
control panels.

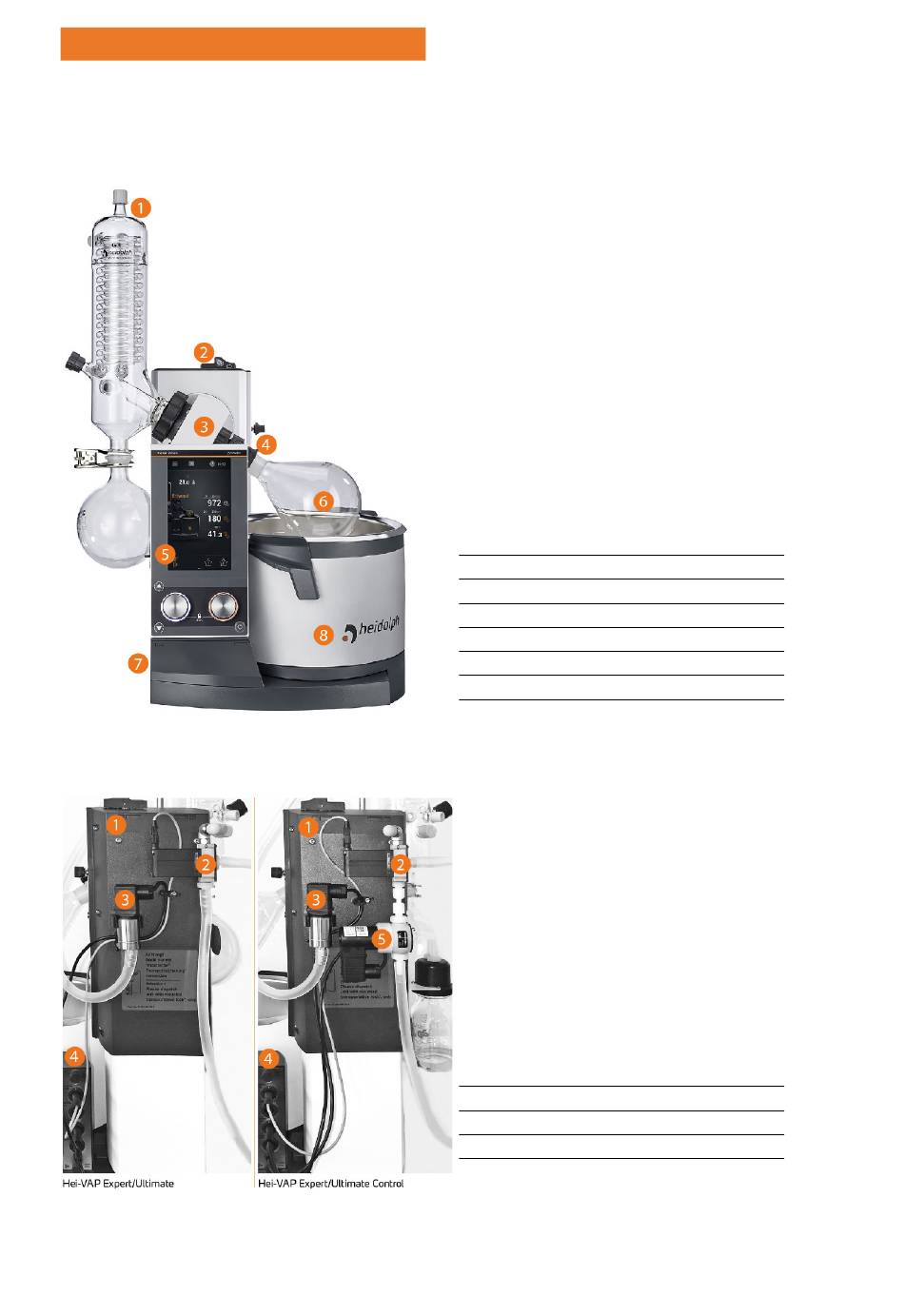

The illustration shows an example of the
Hei-VAP Ultimate model with glassware
G3:
Condenser (example G3) with receiving
1
flask
2
Tilt angle adjustment (evaporation flask)
3
Drive (evaporation flask)
4
EasyClip (evaporation flask)
5
Control panel
6
Evaporation flask
7
On/Off switch (on the side of the device)
8
Heating bath
Device connections
Left: Hei-VAP Expert/Ultimate Control
for the use with a speed-controlled
vacuum pump
Right: Hei-VAP Expert/Ultimate Control
with vacuum valve for the use with a
diaphragm vacuum pump.
The variants Hei-VAP Expert/Ultimate
without control function do not have the
control Box (4)
Vacuum unit with components for vacuum
1
control
2
Venting valve
3
Vacuum sensor
4
Control Box (only device variants [Control])
5
Vacuum valve
72
