Operation
It is not possible to assign designations for ramp profiles twice in the
system. If a desired designation already exists, a warning message
appears on the display.
In this case, change the designation or overwrite the existing ramp
profile. This operation cannot be undone!

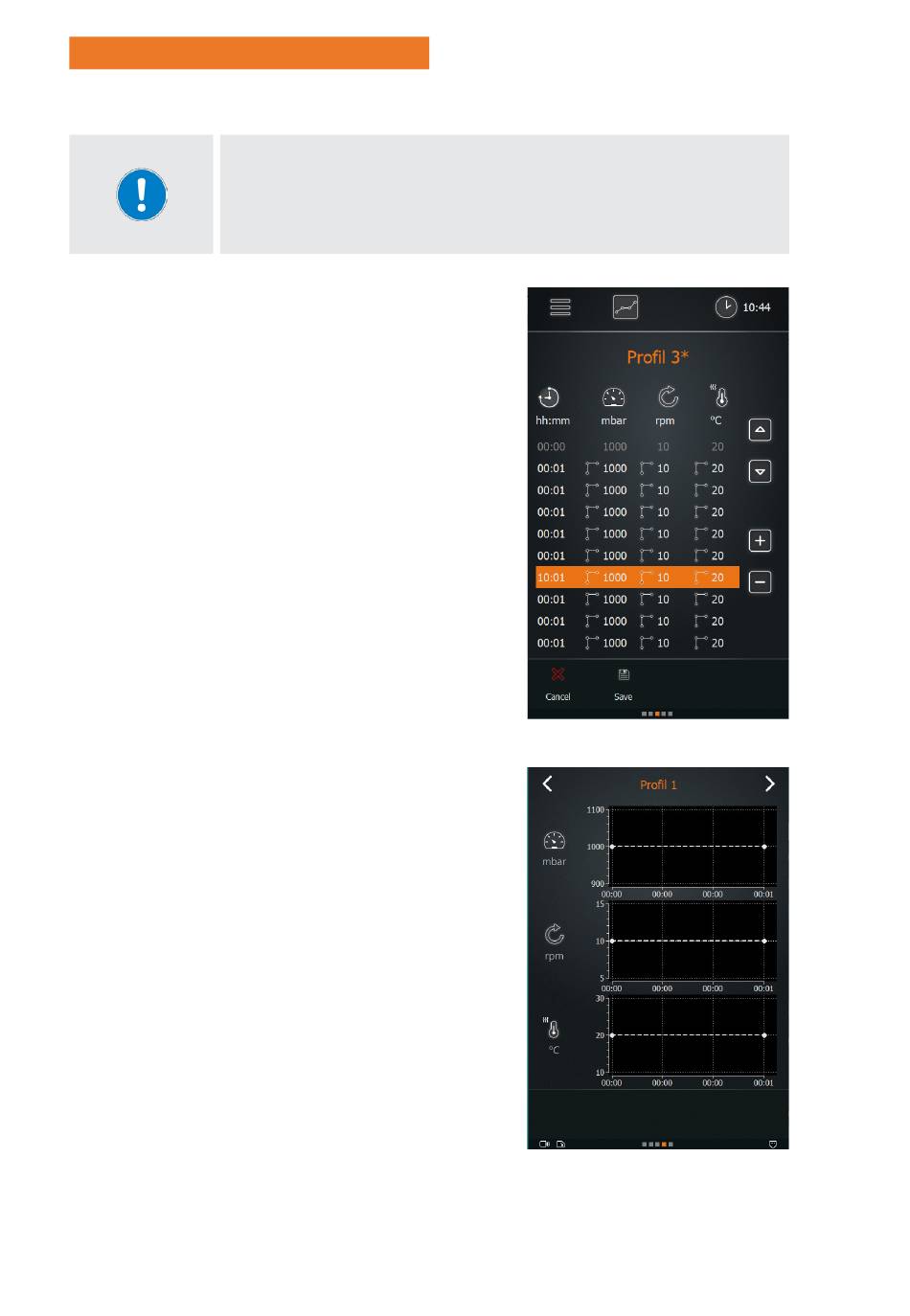

Edit ramp profiles
•
Switch to screen 3 of the operating mode and open
the desired profile.
•
From the list of all process steps of the ramp profile,
select all the affected lines one after the other
(highlighted in yellow) and edit the values as described
above.
–
Several process steps can be modified at the
same time.
–
Modified ramp profile are marked with an asterisk
(*).
•
Finally, confirm all changes with [Save]. The on-screen
keyboard opens.
•
Confirm the designation to store the ramp profile with
the changed values in the system or assign a new
designation to save a new profile.
•
Touch the [Cancel] button to cancel the operation at
any time and at any level. All changes made to the
ramp profile before are discarded.
•
Confirm the additional confirmation prompt with [OK]
to accept all changes definitely.
Graphics (curves)
On screen 4 of the operating mode, the process-specific
graphics (curves) for vacuum pressure, rotation speed and
condenser temperature are displayed in real time.
Color coding: the designed ramp is displayed in gray, real-
time data are displayed in white.
All diagrams are touch-sensitive: tap on a diagram to
zoom the display in and out.
