3. Control-Board and Laser

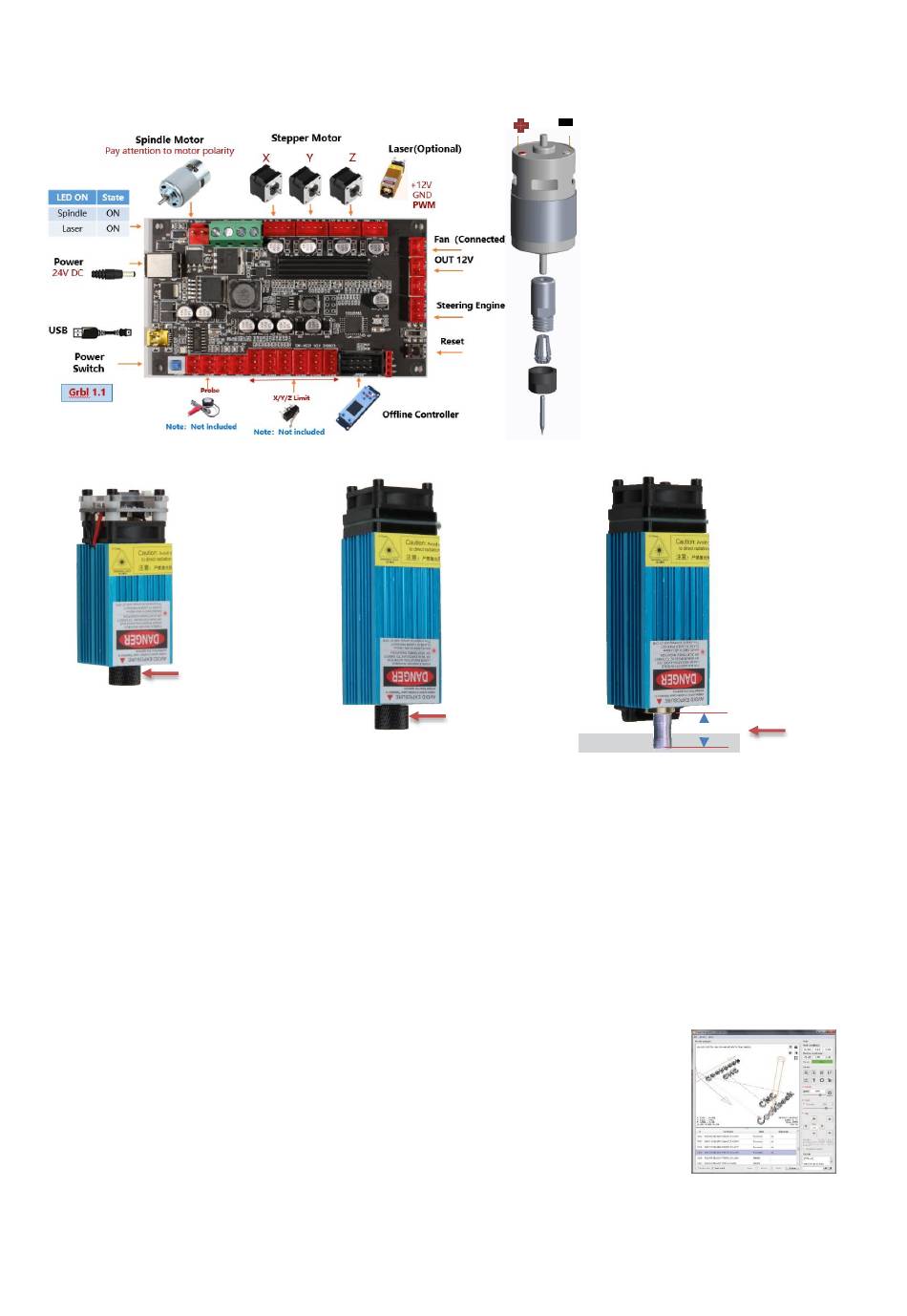

3.1 Instructions for control board connection
XTS05
XTS08
XTS10
Is adjustable
Focusing Ring
3.2 Instructions for laser (Optional).
Please wear the protective glasses before operating the laser!
When all the connections are completed, turn on the power, and the laser is standby for working. The red light on the top of the
laser is continuous lighting in this time.
Turn on the weak light and adjust the focal length (except the Fixed-Focus Laser)
Please lay the materials to be engraved flat under the laser. The recommended distance from laser outlet to materials is 3~10cm.
Out of range may be out of focus.
Turn on the weak light. Rotate the focusing ring slowly on the laser outlet to shrink the laser spots. When the laser spot is smallest
and clearest, it is the optimum state for laser engraving, then turn off the weak light.
If you use the fixed-focus laser XTS15D, please use the focusing measuring column to adjust the distance between the light outlet
and the engraved surface to 18mm.
Note: Laser XTS05/XTS08/XTS10 have a weak light switch on top of the lasers, you also can use the switch to turn on weak light. Be
sure to turn of the switch before you start laser engraving.
4. Candle Software
Candle is a GUI application for GRBL-based CNC-machines with G-Code visualizer.
open-source software suitable for CNC machine tool processing. It supports G code file processing
and visual display.
Supported functions:
(1) Controlling GRBL-based CNC-machine via console commands, buttons on form, numpad.
(2) Monitoring CNC-machine state.
(3) Load, edit, save and send G-code files to CNC-machine.
(4) Visualizing G-code files.
(Laser is optional)
The terminal of the red dot of
the spindle motor is positive,
please plug in the red wire.
The Motor-X/Y/Z interface on board
should be connected to the X/Y/Z motors
correspondingly. The 6Pin plug is for the
motor, and the 4Pin is for the control panel.
Power interface connects to the power
supply and USB connects to the computer.
Connect the spindle motor wire according
to the correct polarity.
the motor driver current.
to the control board with the 3pin wire.
Correctly focus the laser on the materials to
be engraved referring to the laser
instructions below before starting
engraving.
XTS15 Laser
Is adjustable
Focusing Ring
Candle is an
-8-
In general, there is no need to adjust
If using laser, please connect the laser
XTS15D Laser
Is fixed-focus
Can't be adjusted
Focusing Column
18mm
