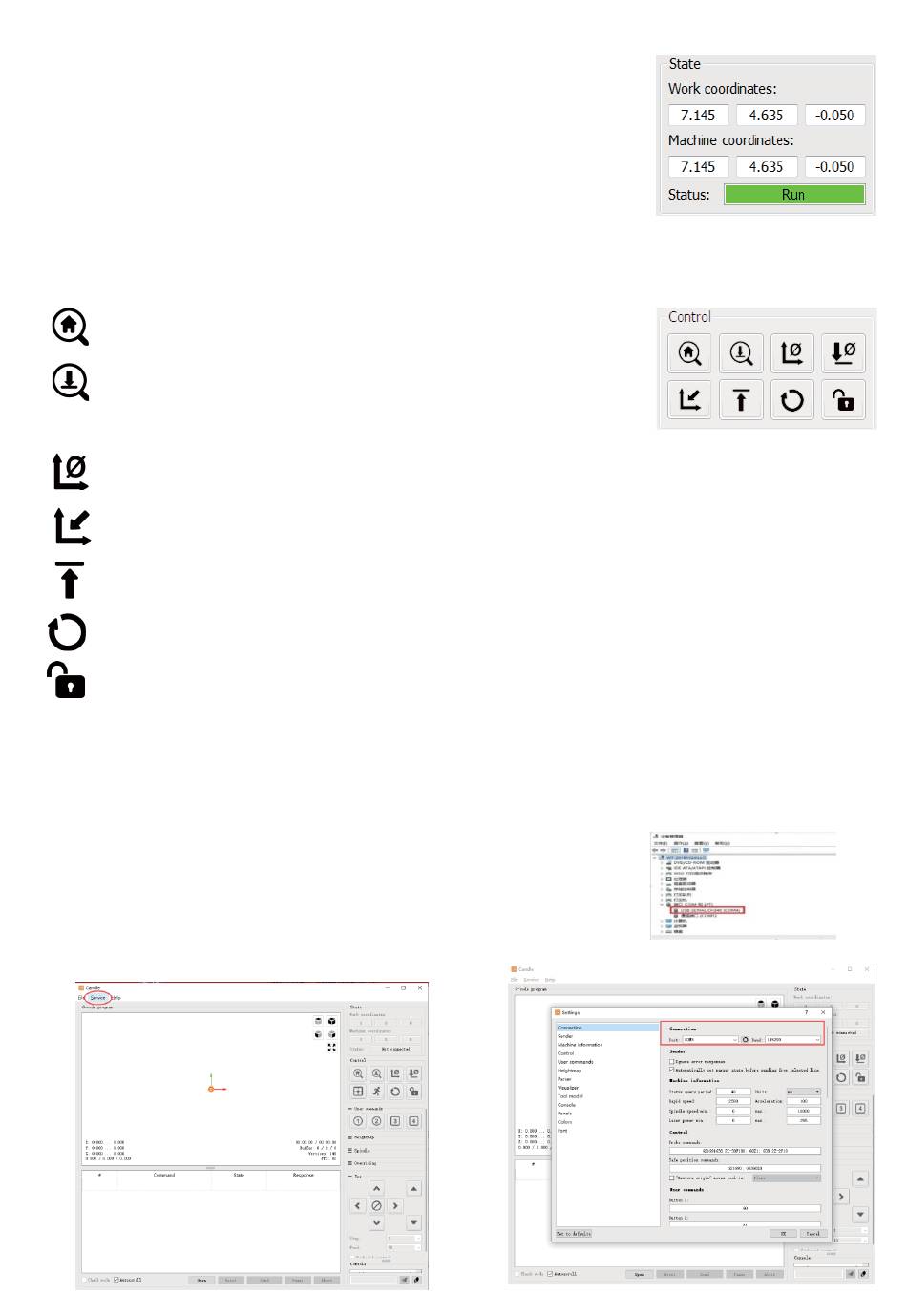

4.1 States
Work coordinates:
Represents current X, Y & Z local coordinates of the CNC.
Machine coordinates:
Represents current X, Y & Z absolute machine coordinates.
One of following CNC status:
◎ Idle - waiting for a G-code command Running - running a G-code command
◎ Home - homing cycle is executing
◎ Check - G-code command check mode is turned on
◎ Hold - paused by a "!" command, need to be restarted by a "~" command
◎ Alarm - CNC doesn't know where it is and blocks all G-code commands
4.2 Control
Home button
Starts the homing cycle procedure with "$H" command
Z-probe
Starts the zero Z-axis search procedure using the command specified in the settings
("Z-probe
commands"
G38.2Z-1F10
Zero X/Y
Zeroes the "X" and "Y" coordinates in the local coordinate system. Also retains an local system offset ("G92") for later use.
Restore X/Y/Z
Restores local system coordinates with "G92" command.
Safe Z
Moves tool by "Z"-axis to safe position. Position coordinate can be specified in the "Safe Z" setting. Position must be specified in
machine coordinates.
Reset
Resets CNC with "CTRL+X" command
Unlock
Unlocks CNC with "$X" command.
4.3 Software using steps
(1). Install the driver
For the first time use, please connect the device to the computer via USB cable, and click the CH341SER.exe file in the driver folder
to install the driver. Under normal circumstances, the Win10 system will automatically identify and install the driver. For Win7 and Win8
systems, please install it manually.
(2)
Set the port and connection
After installing the driver, open the device manager of the computer and click on the port
option to see the content inside the red box on the screen shown in the figure below (the port
information is in brackets).
Remember the port information queried above, switch to the Candle software interface and
click the "Settings" option in the upper left corner. Selecting the setting will pop up the setting
window. Under "Connection", select the port name you queried, select the baud rate 115200, and then click the "ok" to finish the
setting.
box).
Example
command:G91G21;
G38.2Z-30F100;
G0Z1;
-9-
