VEVOR C3A18 Pro Mode D'emploi page 7

07: Connecting plate (right) 1PCS
25: Trapezoidal nut
M5-20 6PCS

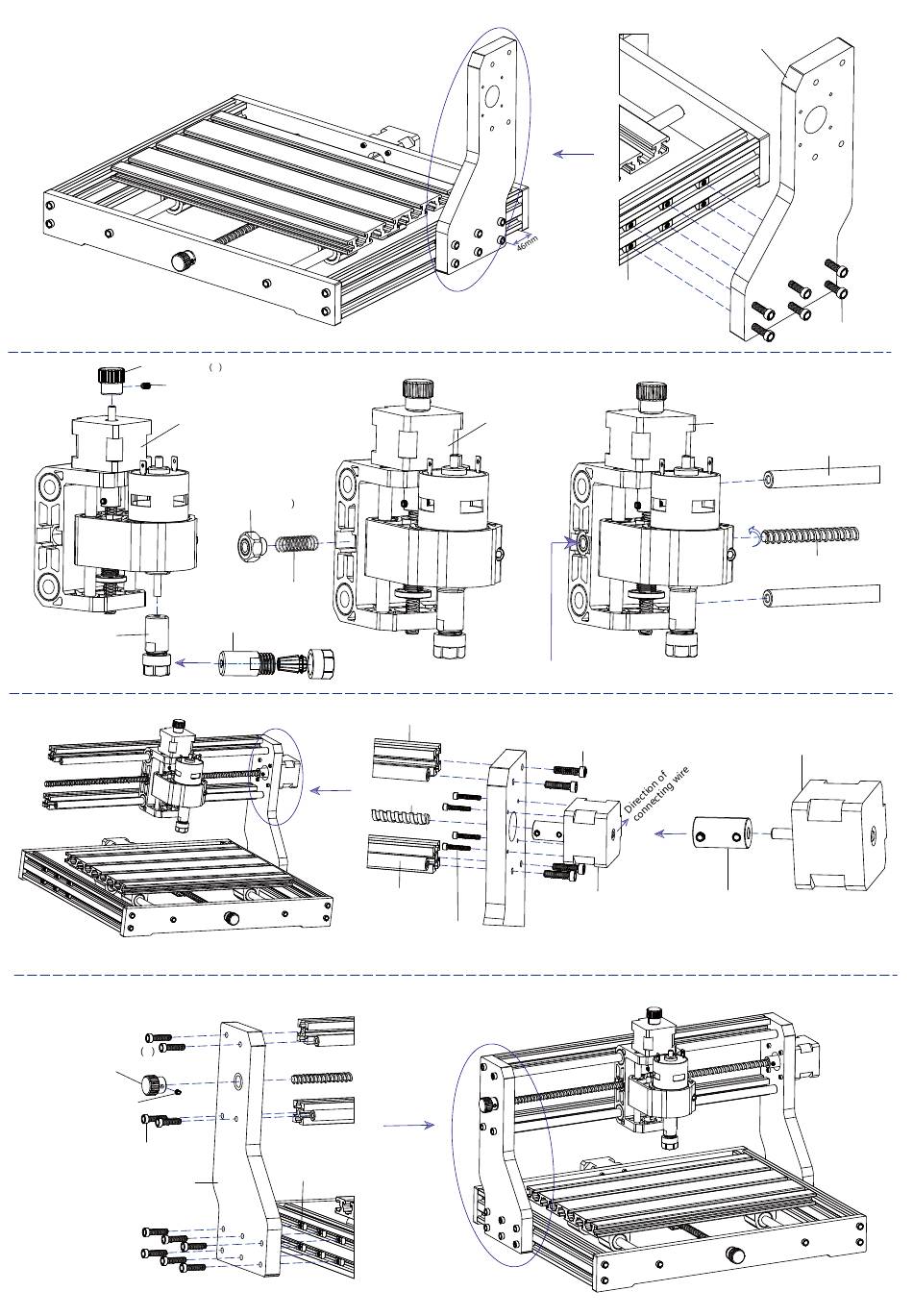

Step ③
21: M5*20 6PCS
Screw
Step ④
19: Hand knob Z Φ5*18mm 1PCS
27: M4*5 1PCS Set Screw for knob
Component A
Component A
Component A
08: X Smooth axis
Φ10*370 2PCS
12: T8 Nut (X 1PCS
10: X Lead screw
T8*393 1PCS
17: Spring 1PCS
28: ER11 assembly
28: ER11 1Set
Press T8 nut to the bottom and turn X Lead screw at the same time
02: Aluminum profile
2020*370mm 2PCS
21: M5*20 Screw 4PCS 13: Stepper motor 1PCS
10: X Lead screw
T8*393mm 1PCS
08: X Smooth axis
14: Muff coupling 1PCS
13: Stepper motor 1PCS
Φ10*370mm 2PCS
23: M3*18 screw 4PCS
Step ⑤
Step ⑥
18: Hand knob X
Φ8*18mm 1PCS
27: M4*5 1PCS
Set Screw for knob
21: M5*20 Screw 10PCS
25: Trapezoidal nut
M5-20 6PCS
06: Connecting plate (left) 1PCS
-6-
