sigfox ANALOG - Guide utilisateur / User guide version V2.0.0
5.
PREPARATION AND START-UP
5.1. Disassembling the casing
The product is delivered disassembled so that you can access the lower part of the electronics. This part enables
the sensor or sensors to be connected to the screw terminals as well as access to the configuration switches.
Once assembly of the sensors has been finalised and the configuration has been carried out, the casing can be
closed.
NB: Once the casing is closed, it will no longer be possible to open it without running the risk of voiding the IP67
protection index guarantee.

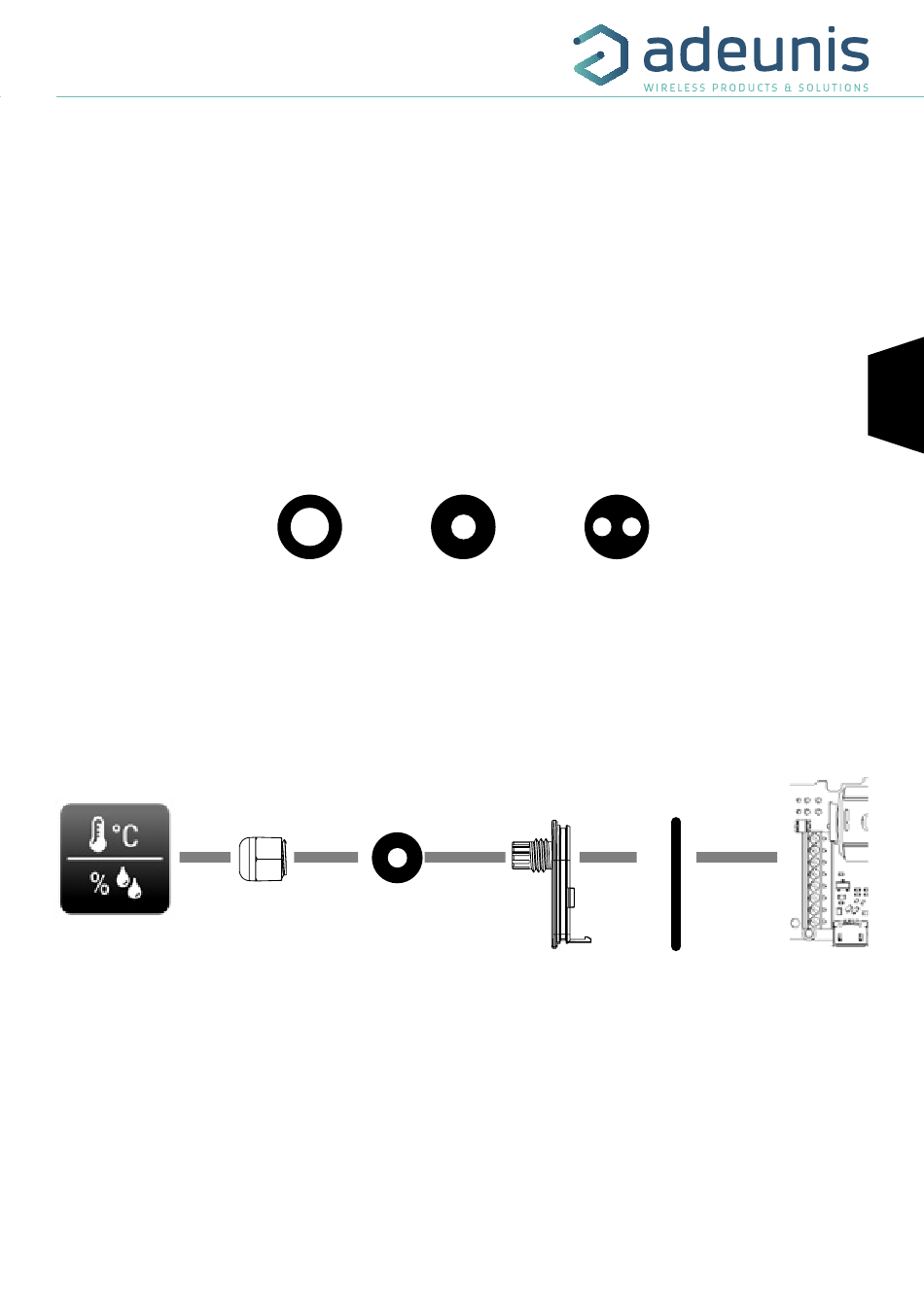

5.2. Fitting the packing gland seal
Before connecting your sensor's cable strands to the product's screw terminals, you must insert the packing
gland's nut and the seal appropriate for your configuration.
Three types of seals are supplied with product: For a cable with a diameter of 5 mm, for a cable with a diameter
of 3 mm, and for two cables with diameters of 2.2 mm.
Assembly procedure:
Seal for 1 x 5 mm
diam. cable
5.3. Mounting the sensor on the screw terminals
Once the nut and the packing gland seal are fitted, the sensor cables' strands can be connected to the product
unit's screw terminals.
Note: A maximum of 2 sensors may be used in parallel.
1 - Your sensor
2 -Pass the cable
and its cable
through the pac-
king gland nut
Analog sensors require an electric power supply that the battery of the product unit is not able to provide. You
must therefore supply the analog sensor via an external electrical source.
Seal for 1 x 3 mm
diam. cable
90
3 - Pass the cable
4 - Pass the cable
through the pac-
through the SEN-
king gland seal
SORS casing base
107
Seal for 2 x 2.2 mm
diam. cables
27
5 - Fit the O-ring
onto the seal of
the casing base
FR
EN
6 - Connect the
sensor cable
strands to the
screw terminals
Page
75
of 86
