sigfox ANALOG - Guide utilisateur / User guide version V2.0.0
To optimise fastening onto a tube or mast, we recom-
mend you remove the Rail-DIN locking/unlocking lever.
To remove it, pull the lever down until the locking pins
are opposite a freed-up part and then remove the
lever
FR
EN
6.2.2
Fixing with screws
The product is delivered with 2 CBLZ 2.2 x 19 mm screws and 2 SX4 wall plugs. Use these products or equivalent
products in order to fasten your product onto a flat support.
Two positions may be selected: Laid flat or on its edge.
•
Placing it on its edge enables the product to be placed at a distance from its support and helps achieve better
propagation of the radio waves.
•
If you opt for laying it flat, make sure you remove the Rail-DIN locking/unlocking lever, as explained above
49,50

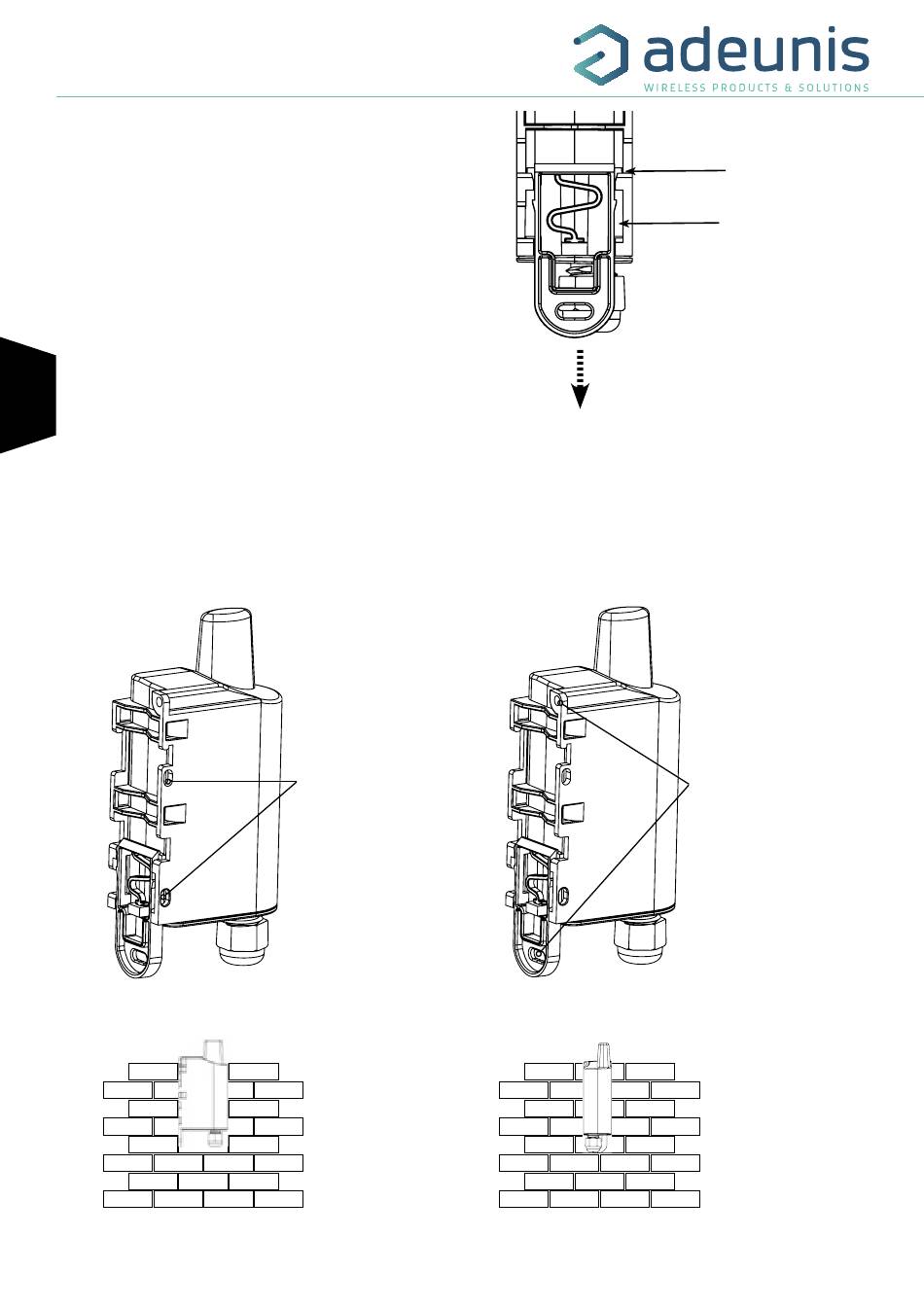

Fastening laid flat
Location of the screws
for fastening it laid flat
Location of the screws
for fastening it on its
edge
49,50
Fastening on its edge
Pins
Freed up part
49,50
Page
80
of 86
