LoRaWAN 863-870 ANALOG PWR - Guide utilisateur / User guide version V2.0.2
5. PREPARATION AND CONFIGURATIONS
5.1. Disassembling the casing
The product is delivered disassembled so that you can access the lower part of the electronics. This part enables the sensor or sensors to be
connected to the screw terminals as well as access to the configuration switches.
Once assembly of the sensors has been finalized and the configuration has been carried out, the casing can be closed.
NB: Once the casing is closed, it will no longer be possible to open it without running the risk of voiding the IP67 protection index guarantee.
FR
5.2. Fitting the packing gland seal
Before connecting your sensor's cable strands to the product's screw terminals, you must insert the packing gland's nut and the seal appropriate
for your configuration.
Three types of seals are supplied with product: For a cable with a diameter of 5 mm, for a cable with a diameter of 3 mm, and for two cables
EN
with diameters of 2.2 mm.

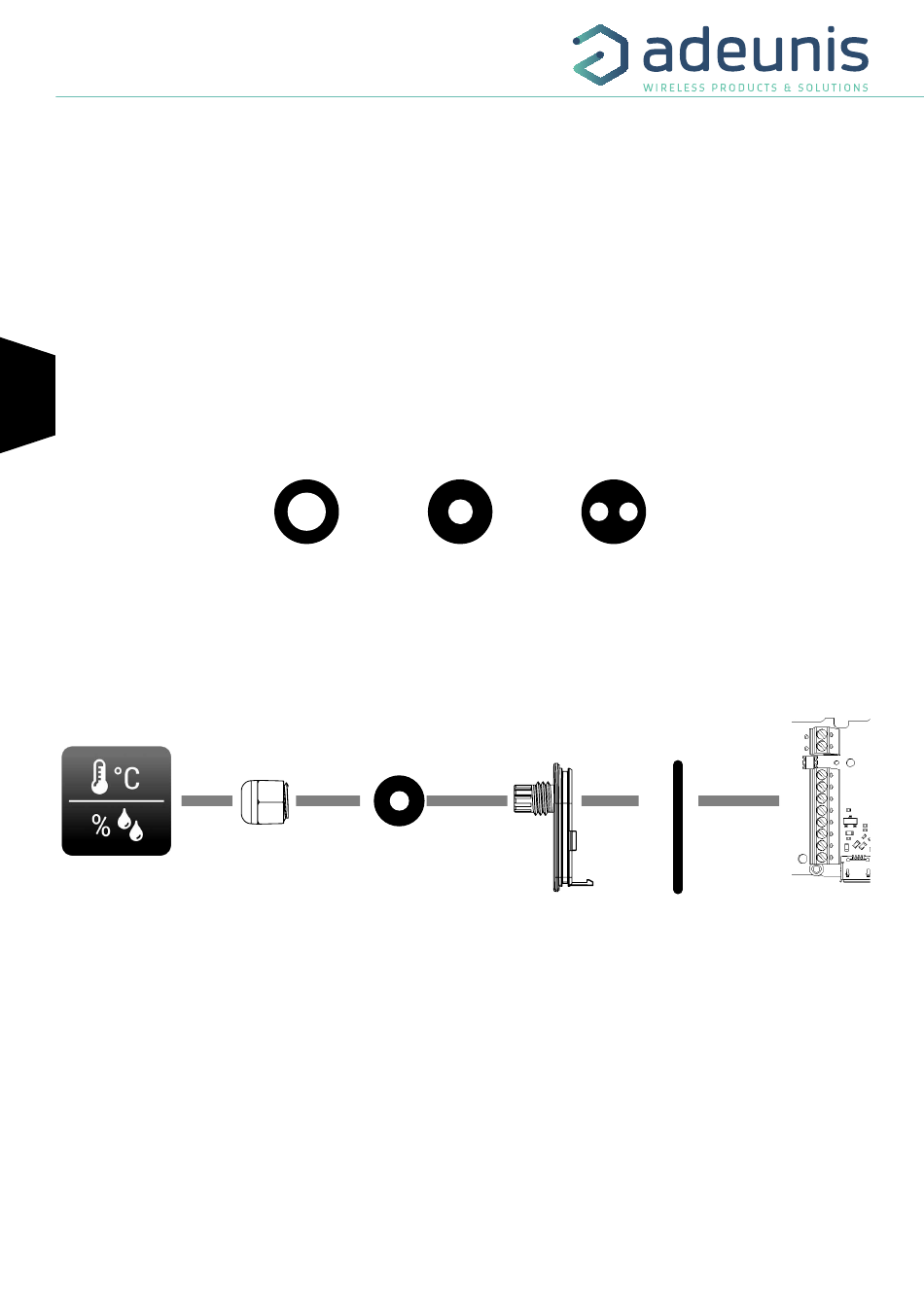

Assembly procedure:
5.3. Mounting the sensor on the screw terminals
Once the nut and the packing gland seal are fitted, the sensor cables' strands can be connected to the product unit's screw terminals.
1 - Your sensor and
its cable
Note: A maximum of 2 sensors may be used in parallel.
Analog sensors require an electric power supply. The power supply of the sensor may be the same as that of the
LoRaWAN 863-870 ANALOG PWR, provided that the supply voltage is compatible with both.
Seal for 1 x 5 mm diam. cable
2 -Pass the cable
3 - Pass the cable
through the packing
through the packing
gland nut
gland seal
Seal for 1 x 3 mm diam. cable
90
4 - Pass the cable
through the LoRaWAN
105
SENSORS casing base
Seal for 2 x 2.2 mm diam. cables
27
5 - Fit the O-ring
onto the seal of the
casing base
6 - Connect the sen-
sor cable strands to
the screw terminals
Page
76
of 87
