REpARATION
Before the first start, some basic adjustments must be carried out or checked and the necessary accessories and auxiliaries must be prepared.
Go through the various points of the check list one after the other, and your model is then ready to run.
Tuning measures on the chassis and/or the installation of another RC system necessitate various tools. The latter are listed below.
4.2
T
OOLs AND AuXILIARIEs
T
OOLs
- Socket wrench (or flat wrench) 7 mm
- Flat wrench 5.5 mm
- Allen wrench 1.5 mm
- Phillips head (Ph Nr. 1)
A
uXILIARIEs
- Cable fastener
- Low viscosity machine oil for the air filter,
for lubrication and to protect the combustion
chamber against corrosive residues in the engine,
after operation („After Run")
The instructions specific to position front / back / right / left
always refer to the longitudinal axis of the vehicle
4.3 c
HEck ALIGNMENT AND TOOTH BAckLAsH Of DRIvE
The engine transmits its capacity via the pinion on the clutch bell to the main pinion at the center differential.
Both rotary axes, i.e. the crank shaft, engine-sided, and the axis of the drive section to the front and rear axis, must be aligned so that they are exactly
in parallel. This prevents tensions in the drive section, premature wear of the pinions and bearing journals as well as loss of power.
The parallel alignment of crankshaft and drive section must be checked every time before using the vehicle and, if necessary, must
be readjusted!
When the alignment is in parallel, the pinion on the clutch bell and the main pinion will run smoothly.
If there is too much play, this will destroy the toothed wheels in the long run; too little play destroys the bearing in clutch and engine.

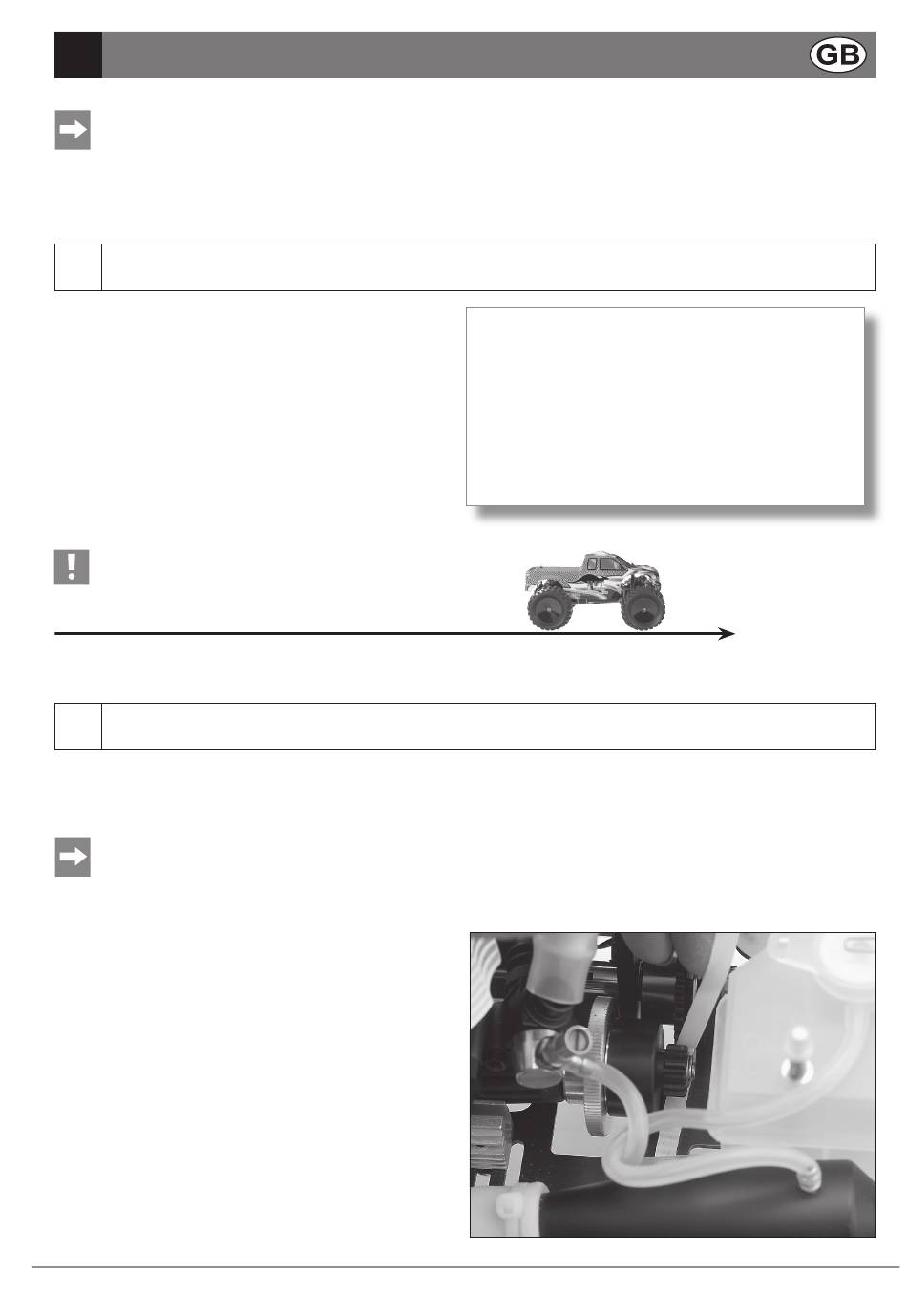

Checking the tooth backlash
- Place thin strips of paper between the pinion on the clutch bell
and the main pinion in the drive section.
- Move toothed wheel by hand;
the paper strips must not rip apart when the wheel turns!
Readjusting
- Unscrew four screws of the engine mount fastener on the lower
side of the the mounting plate (chassis)
- Align engine laterally and fasten screws again tightly
- Unscrew four screws, at the top, on the engine support and
adjust the engine lengthwise
40
,
cHEck LIsT fOR puTTING INTO OpERATION
NOTE!
in drive direction "forward"!
Operating Instructions WD Monster Truck HOTLANDER NEXT GENERATION Item No. 3 49 65 / 3 49 67
c
HEck LIsT fOR puTTING INTO OpERATION
What must be done:
- Check alignment and tooth backlash of drive
- Function control of servos
- Check the range of the remote control transmitter
- Check basic carburettor setting
- Screw in glow plug
- Fill in model fuel
- Let engine runP
