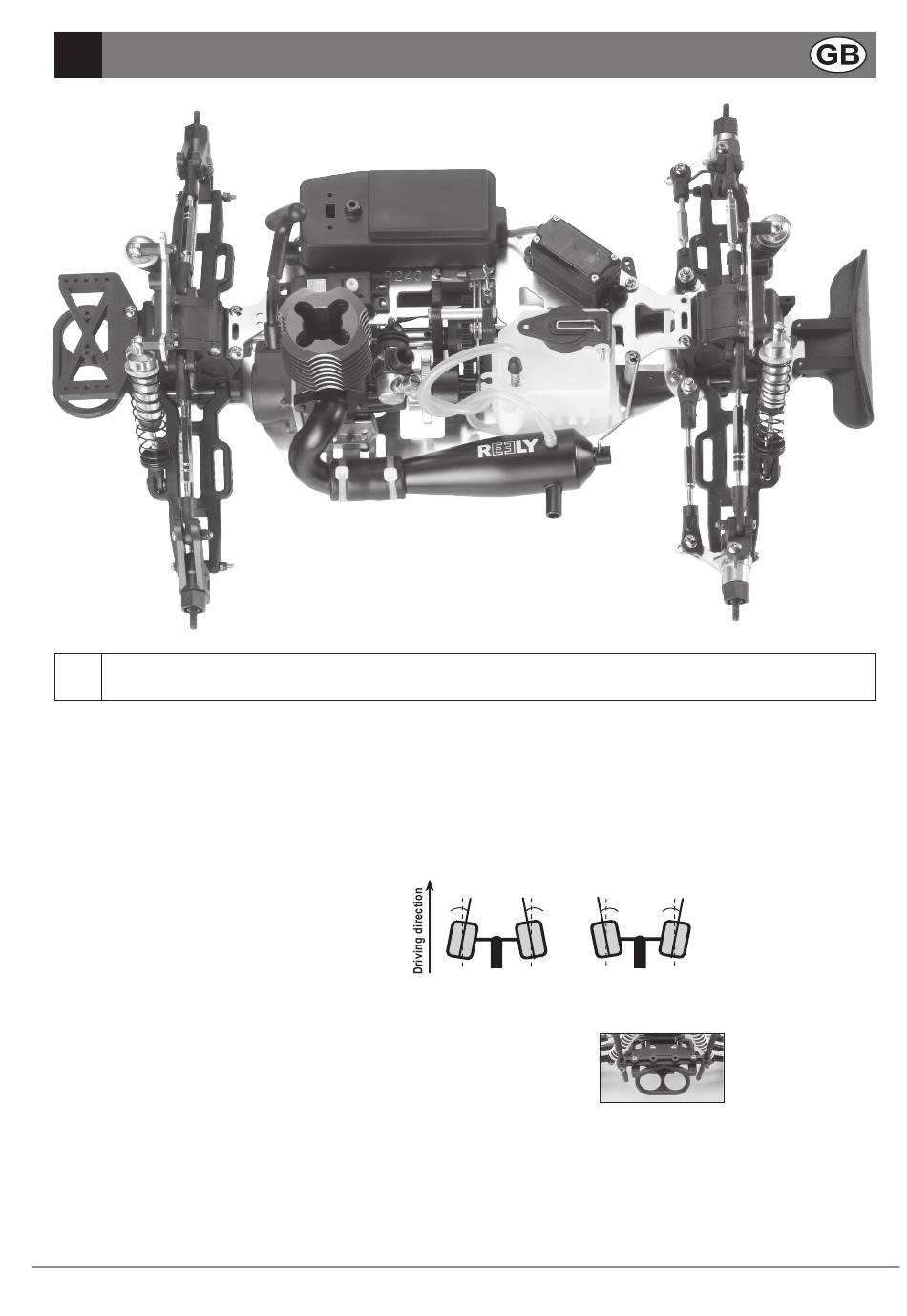

EscRIpTION Of THE MODEL
3.2
2WD M T c
ONsTER Ruck HAssIs
2/4 WD
2/4 Wheel Drive driven by  or 4 wheels.
ABC assembly
ABC means "Aluminum", "Brass" and "Chrome". Aluminum with its small thermal expansion and small weight serves as material for pistons, the cylin-
der is made of brass with chrome-plated contact surface.
Air filter
The air filter is made of foam and prevents the penetration of dust and dirt particles through the suction hole into the carburettor and in the engine.
Alignment
a b
Position of the wheel level to the driving direction:
a) Toe-in – Wheels point inwards
b) Toe-out – Wheels point outward
Axle leg
This is where the axle turns. The steering levers are located on the front axle legs.
Bumper
Made of impact resistant synthetic material for excellent damping in case of a frontal crash.
The back bumper is also a practical carrying handle.
Chassis
nachspur.eps
vorspur.eps
The "frame" of the vehicle, to be precise, only the bottom support plate.
Damper plate
The upper end of the shock absorber of an axle right and left is screwed to the damper plate at the front or at the rear.
The shock absorbers are thus somehow interconnected via the damper plate.
Differential
Differential gear. Equalizes the different revolution speeds, e.g. between the wheel on the inside of a bend and the outside of a bend.
36
