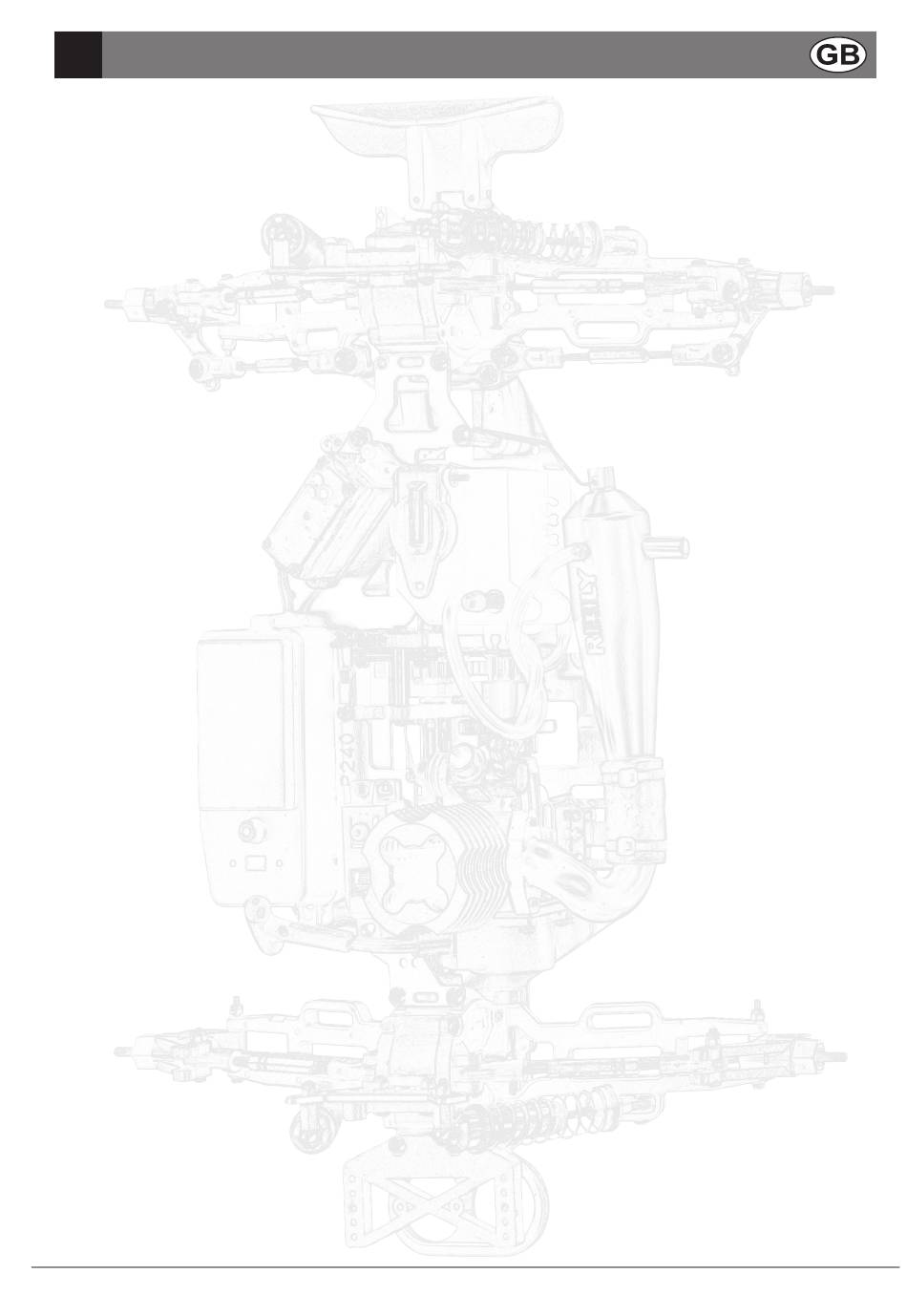

EscRIpTION Of THE MODEL
Steering knuckle pin
Steering axle of the wheel. Connects the axle leg so that it is rotary with the axle leg support (between the top and bottom transverse control arm).
Steering link
Generally consists of three flexible interconnected levers. The outer steering links (adjustable in length with adjustable alignment) connect the steering
knuckle arm at the axle leg so that it is rotary with the middle steering link part, which is tilted right / left by the steering servo lever.
Steering link lever (=steering lever)
Lever on the axle leg. Moving the steering link via this lever towards the right or left causes the wheels to swivel in.
Steering servo
Servo-motor, that carries out mechanical control functions via a lever.
This servo effects steering via the steering links. A servo saver integrated in the servo control lever protects the servo from damages, which can cause
strong shocks against the wheels via the steering links at the servo transmission.
Throttle/brake servo
This servo controls the slide carburettor as well as the disk brakes
Throttle stop screw
Regulates the minimum air supply to the carburettor in idle speed
Transverse link
Half axle transverse to the direction of motion, connects the wheel suspension (spindle, axle leg and steering knuckle pin) with the chassis.
Trim
To fine tune the neutral position of the servo. The trim is superposed by the turns of the remote control lever.
Thus, the neutral position of the servo can be switched in one direction or the other.
