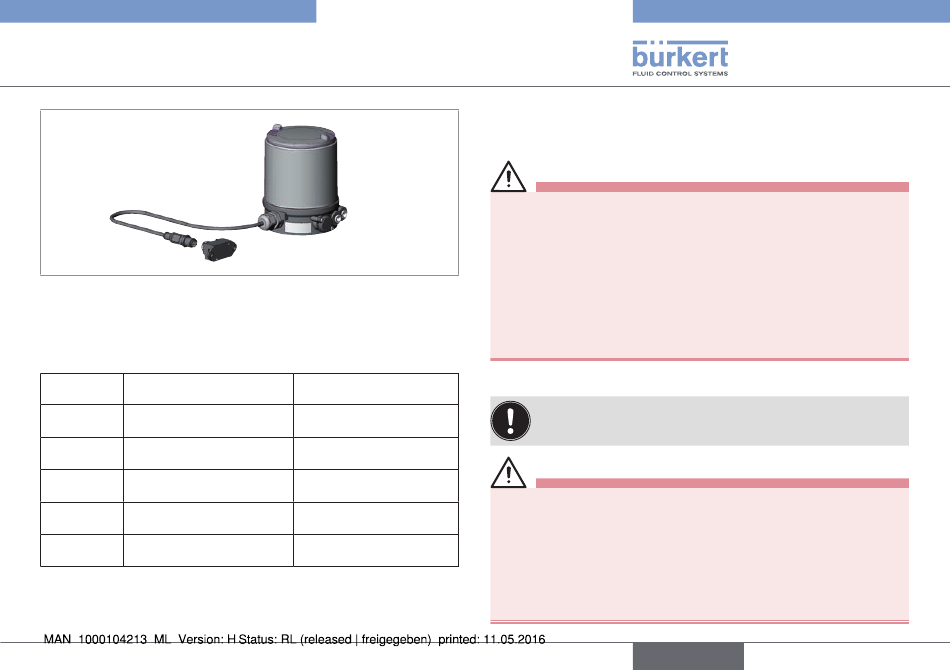

Fig. 17: Positioner 8694 with multi-pole cable and ribbon cable terminal
9.3.3 Programming data AS Interface
Version Profile S-7.3.4
I/O con-
7 hex
figuration
ID code 3 hex (analog profile)
Extended F hex (Default value, can
ID code 1 be changed by the user)
Extended
4 hex
ID code 2
Profile S-7.3.4
Tab. 10: Programming data
Type 8694

Start-up

Version Profile S-7.A.5
7 hex
A hex
7 hex
5 hex
S-7.A.5
10 START-UP

10.1 Safety instructions

WARNING!
Risk of injury from improper operation.
Improper operation may result in injuries as well as damage to the
device and the area around it.
▶ Before start-up, ensure that the operating personnel are familiar
with and completely understand the contents of the operating
instructions.
▶ Observe the safety instructions and intended use.
▶ Only adequately trained personnel may operate the equipment/
the device.

10.2 Automatic adjustment X.TUNE

To adjust the positioner to local conditions, the X.TUNE
function must be run following installation.
WARNING!
Danger due to the valve position changing when the X.TUNE
function is running.
When the X.TUNE is running under operating pressure, there is an
acute risk of injury.
▶ Never run X.TUNE while a process is running.
▶ Take appropriate measures to prevent the equipment from being
accidentally actuated.
