3. Installation and Wiring

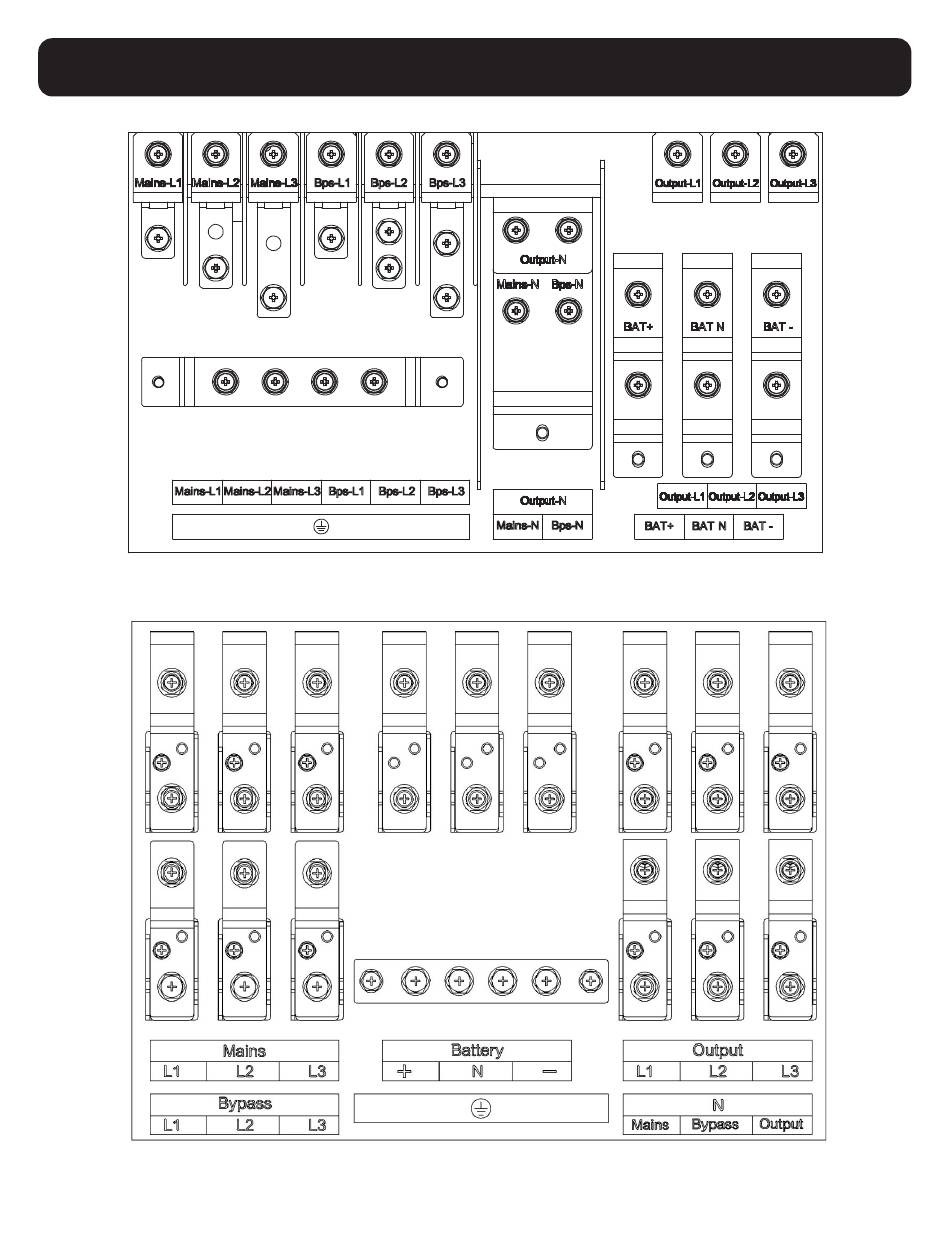

Figure 3-14: Dual Input Connection, Models S3M50K and S3M60K
Note: The UPS unit is defaulted to single input mode, as shown in Figure 3-11. Remove the shorting jumpers to use in dual input mode.
Figure 3-15: Dual Input Connection, Models S3M80K and S3M100K
Note: The UPS unit is defaulted to single input mode, as shown in Figure 3-12. Remove the shorting jumpers to use in dual input mode.
