Description of the pump

5 Description of the pump

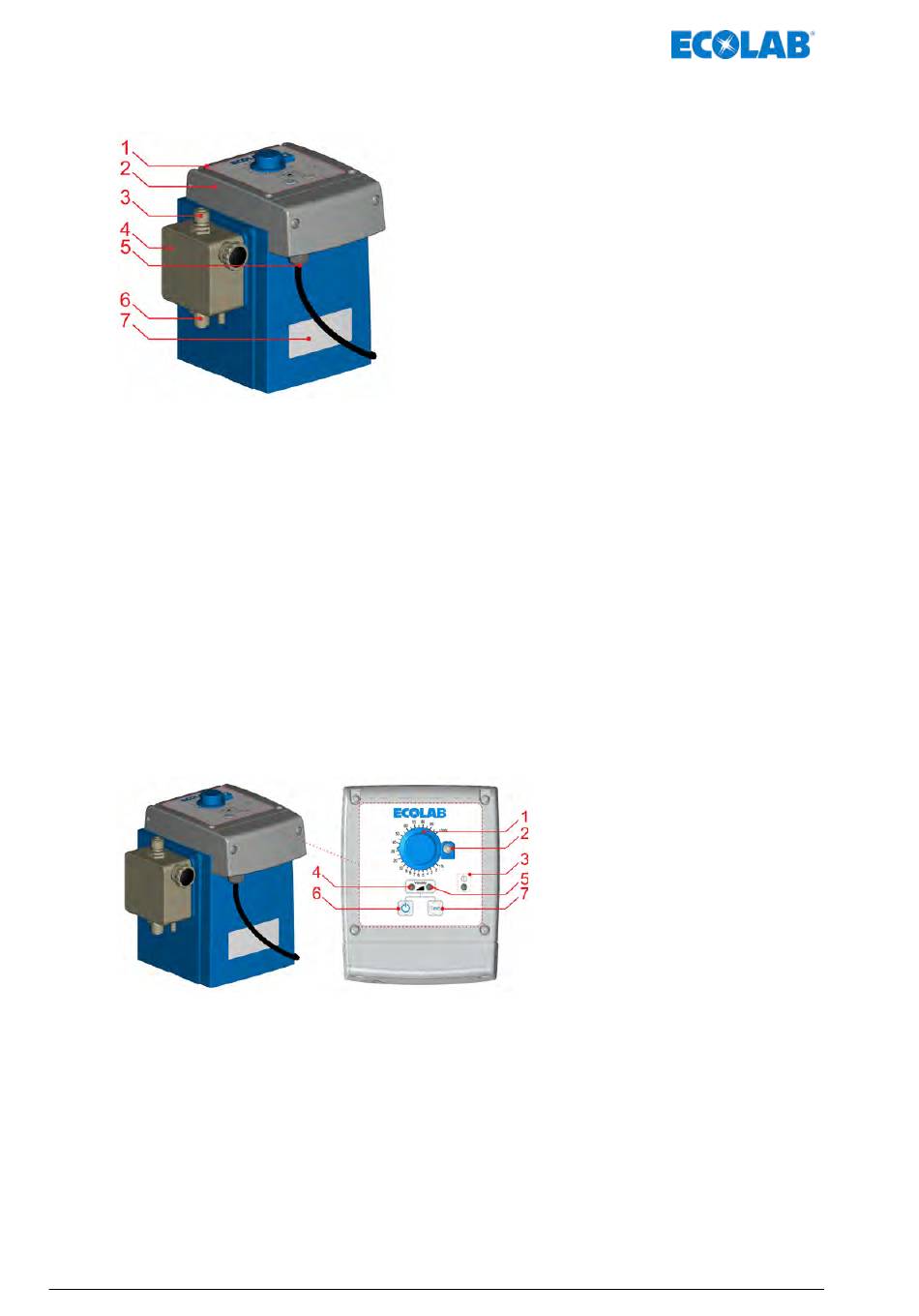

Fig. 3: Construction 'EcoPro'
1 Operator panel
2 Rotary operating device
3 Pressure connection / pressure valve
4 Pump head
5.1

Identification of the pump - Type plates

The pump is equipped with a type plate which provides the pump-specific data for
identification.
The type plate is located on the underside of the pump at the front (Fig. 3, 7) and is
explained in the
5.2

Control elements 'EcoPro'

Fig. 4: Control elements 'EcoPro'
1 Rotary button for stroke adjustment
2 Locking mechanism for fixing the rotary button in place
3 LED - alarm signal, colour: red flashing
4 LED - dosing mode "low", colour: Yellow
417102264 Rev. 5-01.2019
Ä Chapter 13.2 'Equipment marking / Type plate' on page 74.
5 Mains cable bushing / mains power supply
6 Suction connection / suction valve
7 Position of type plate
LED - when starting the pump: Green (standby)
5 LED - Dosing mode "high", colour: Yellow flashing
6 On/off switch
7 Test button
8 Cable bushing for the mains connection cable
