6.2

Assembly variants

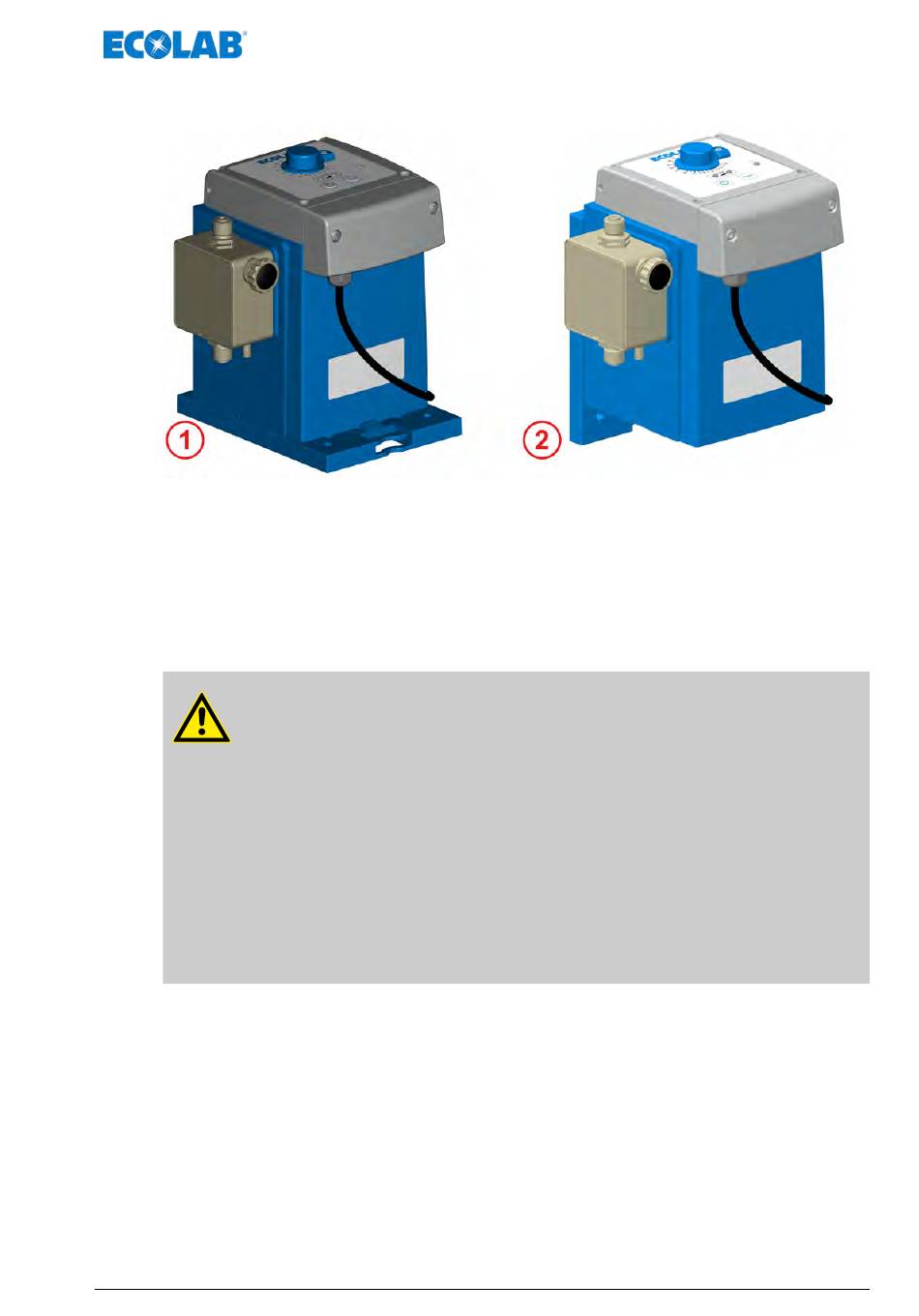

Fig. 7: Stand mounting (pos. 1) and wall mounting (pos. 2)
The pump can be mounted using the mounting plate both upright (e.g. on a bracket or on
the metering container, pos. 1), and on a wall (suspended, pos. 2).
For further variable use, the operating part of the pump can be turned to produce variable
connection variants.
The dimensions of the pump and of the mounting plate can be seen in
Ä Chapter 13.8 'Dimensions' on page 79 .
CAUTION!
– The mounting plate must be properly secured to the relevant surface and
the pump must be locked securely into the mounting plate.
– Fit the mounting plate only to suitable surfaces that are able to withstand
any vibrations that may arise.
– The stability of the pump must be ensured.
– The pump must not be subjected to additional (weight) forces.
– Additional components may not be set up or deposited there, and people
must not stand on or attach items to pumps which have already been
installed.
– The fastening elements are marked with an embossed number 1 and 2 and
the design ensures that they will only fit into the recess in the mounting
plate in one direction.
Assembly, installation, modification and upgrades
31 417102264 Rev. 5-01.2019
