WARNING
To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
opening the access panel, making any adjustments, or
removing or installing attachments or accessories.
1. Keep the motor clean and the machine base free of wood chips
and dust. When used without a shop vacuum, routinely remove
waste material from inside the cabinet or mount the machine on
an open stand that prevents waste-material accumulation.
2. Periodically lubricate the guide rods with a dry-film lubricant.
A dry film lubricant will not collect wood chips and dust and will
extend the life of the bearings and the guide rods. The motor link
and linkage associated with the clamping mechanism should be
lubricated periodically to ensure free movement.
Motor service
To ensure product safety and reliability, all motor repairs should be performed by the Kreg Tool Company factory service center.
Call Kreg Customer Service (1.800.447.8638) for return authorization and shipping instructions.
Replacement parts
For a diagram and list of replacement parts and assemblies, go to www.kregtool.com and view the online version of this manual.
45
22
11
12
25
45

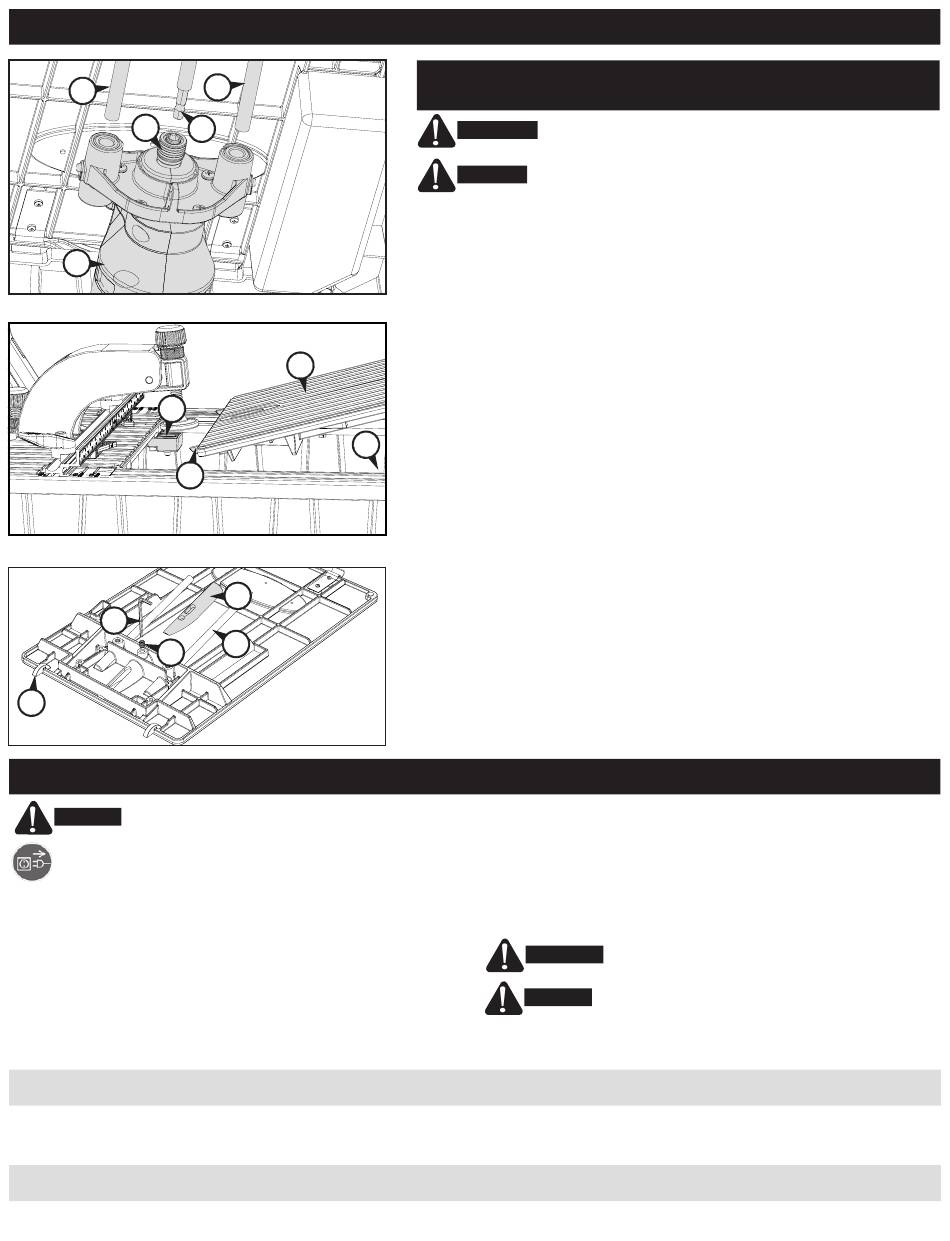

Operation
Replacing a drill bit or installing a drill bit and
drill-guide set
ATTENTION
Use the appropriate procedure below when replacing a
drill bit or installing the optional Micro or HD drill bits and drill guides.
WARNING
Drill-bit edges are sharp. Wear gloves when replacing or
changing the drill bit.
To protect the workpiece stops (35) when opening the access panel
(11), release the fence-lock handles (15) and move the fence (16) all
the way back. Turn the clamp adjustment knob (29) counterclockwise
to raise the clamp pad (28). Unlock the access panel using the 3mm
hex wrench (13), open the panel and engage the panel support (42).
Remove the link-release pin (43) and slide the motor (44) off the
guide rods (45).
To replace the drill bit (22), pull the quick-change chuck (46) collar
forward and remove the drill bit. Insert the new drill bit hex shank
into chuck, and release the collar. Slide the motor onto the guide
rods, inserting the drill bit into the drill guide (25). Align the motor link
(47) with the link hole on the motor, and insert the link-release pin.
Disengage the access panel support and close and lock the panel.
When switching to the optional Micro or HD drill and guide, change
the drill bit as instructed above. Then disconnect the vacuum hose
(10) from the vacuum shroud (7). Lift the access panel off the
machine, disengaging the hinge pivots (48) on the access panel from
the pivot sockets (49) on the machine top (12).
Place the access panel upside down on a flat surface (for example,
a tablesaw table). Loosen the drill-guide set screw (50) with the
3mm hex wrench (13) and remove the drill guide. Firmly holding the
access panel against the flat surface, slide the new drill guide into the
opening, rotate it so the angled face is against the flat surface, and
tighten the set screw.
Install the access panel on the machine and engage the panel
support. Reconnect the vacuum hose to the vacuum shroud. Slide
the motor onto the guide rods, inserting the drill bit into the drill guide.
Connect the motor link (47) to the motor with the link-release pin and
close and lock the panel.
Maintenance
3. Use a sharp drill bit. You can drill between 4,000 and 5,000
holes in oak before replacing the bit. Adjust your replacement
schedule for your settings and the material that you are drilling.
Keeping the drill bit clean and free of pitch, resin, and glue
significantly extends the life of the bit. Periodically clean the drill
bit with a cutting-tool cleaner and apply a dry lubricant. Even
a dirty drill bit can be very sharp, so exercise caution when
handling the cutting edges.
ATTENTION
replacement bits.
WARNING
attempt to repair it. A damaged cord must be replaced by a
specially prepared cord available through the Kreg service
organization.
When replacing the drill bit, use only Kreg
If the power supply cord is damaged, do not
12.
