CONNECTION EXAMPLES
CONTINUOUS PNEUMATIC FLOW CONTROL

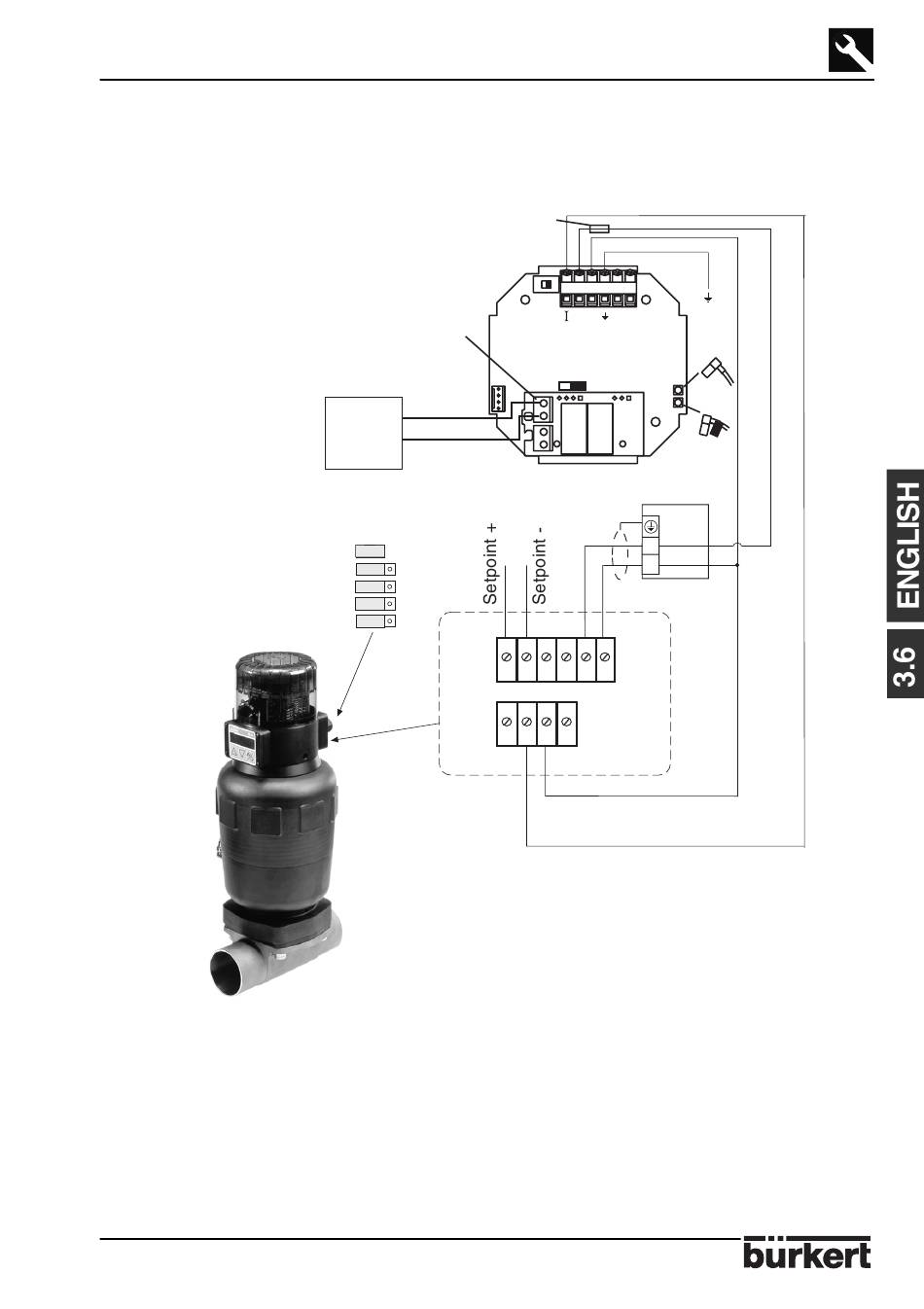

Connection between the 8045 flow transmitter 18-36VDC and the 8630 Top Control
mounted on a diaphragm valve 2031.
8045
INSTALLATION
REL 1
PLC
Jumper
1 2
7 8
15
300 mA
1
2
3
4
5
6
+
-
P+
P-
24 V=
+
-
+
-
+
-
+
-
3 4
5
6
R1
9
10
4-20 mA
