ENGINE BAFFLE PLATE CLEANING

WARNING!
If the engine was running, the silencer will be
very hot. Let it cool down before operating on the
baffle plate.
1. Drive the machine on a level ground and engage the
parking brake.
2. Turn the ignition key (61) to "0".
3. Open the engine compartment hood (18) with the handle
(41) and fasten it with the support rod (53).
4. Lift and disassemble the right side bulkhead (45).

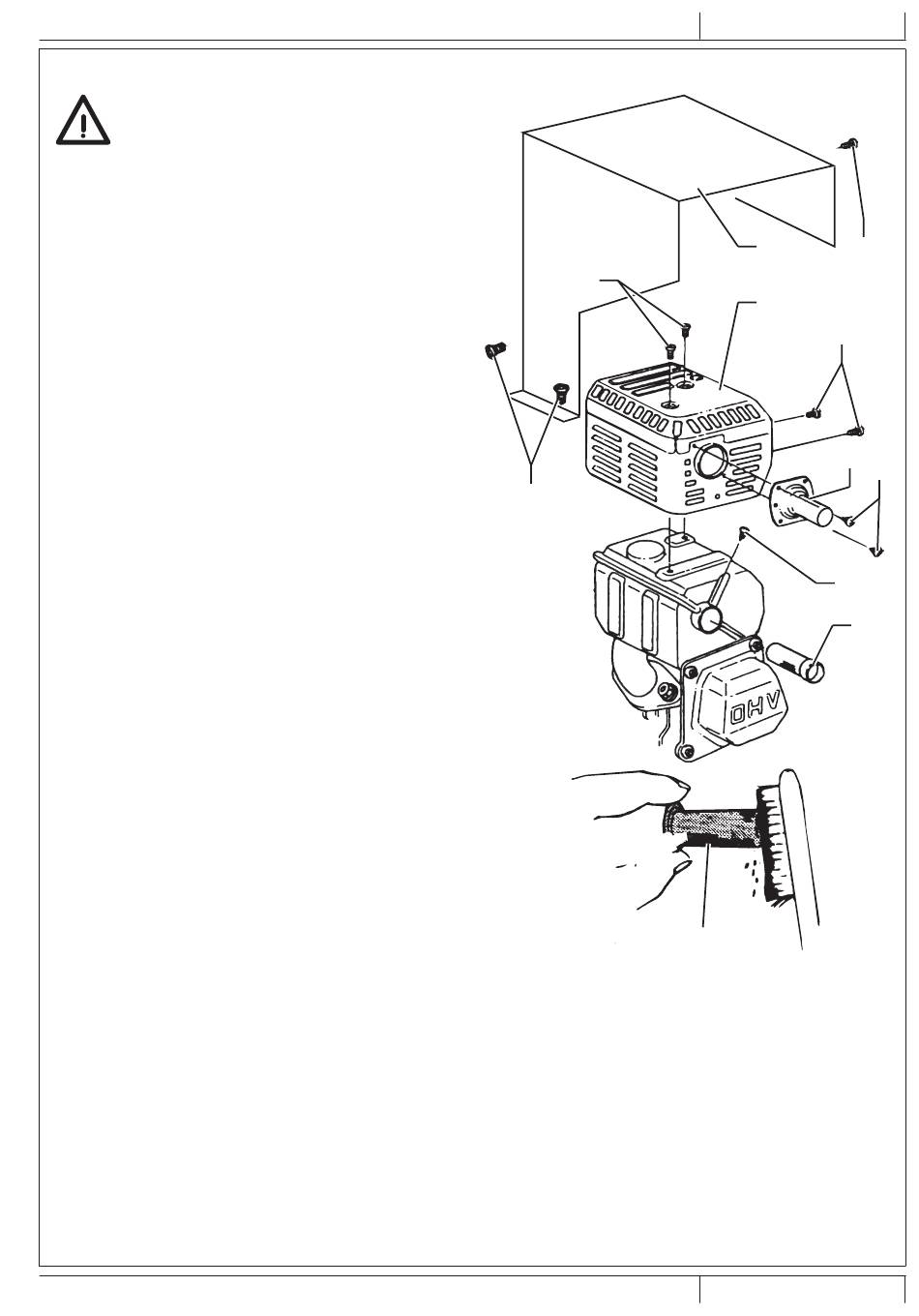

5. Remove the screws (A, Fig. 25) and carefully remove
silencer guard (B).
6. Remove the screws (C) and remove the exhaust manifold
(D).
7. Remove the screws (E) and carefully remove silencer
guard (F).
8. Remove the screw (G) and remove the baffle plate (H)
from the silencer.
9. Use a brush to remove the carbon deposits from the baffle
plate shield (I). Take care not to cause damage to the
shield. Replace the baffle plate if it cracked or perforated.
10. Install the baffle plate (H), the silencer guard (F) and the
exhaust manifold (D).
11. Assemble the components in the reverse order of
disassembly.
03/2013
INSTRUCTIONS FOR USE
A
1464815000 - SW4000, FLOORTEC R 870
E
I
Figure 25
ENGLISH
B
A
F
E
D
C
G
H
P100619
