NOTE: The charge LED will illuminate.When charging
is complete, the charge LED will stop illuminating.
NOTE: A battery needing to be fully recharged will take
approximately four (4) hours.
4. Lift UP on the handle on the top of the battery.
5. Lift the battery UP and OUT away from the battery
charger.
WARNING
Make sure there is an audible click when mount-
ing battery on the control box to confirm proper
mounting. Otherwise, injury or damage may oc-
cur. Refer to FIGURE 5 for correct mounting.
6. Reinstall the battery onto the control box as shown
in FIGURE 5. Make sure there is an audible click.
Handle
(STEPS 1, 2,
4 and 5)
Battery

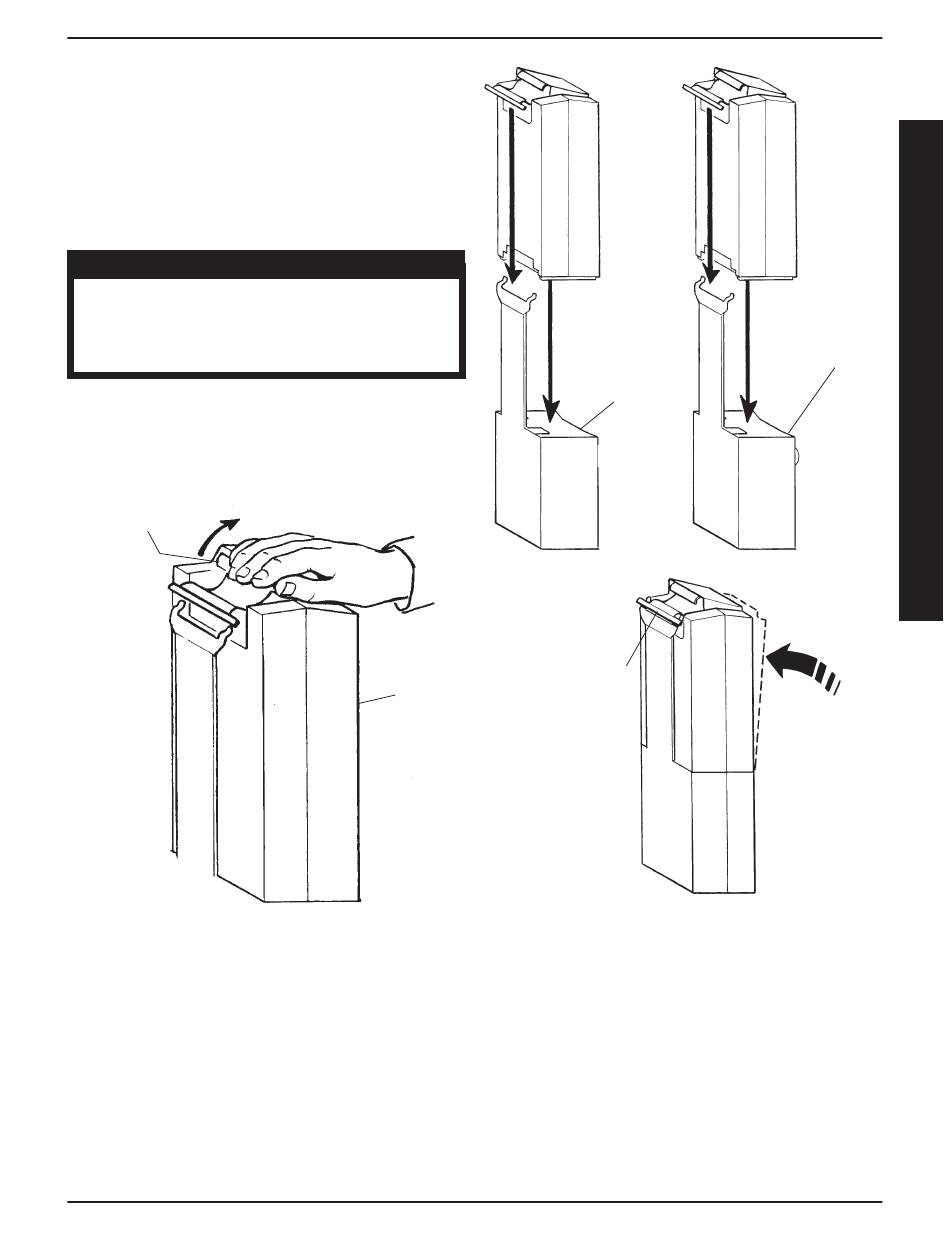

FIGURE 5 - CHARGING BATTERIES
9
Battery
Charger
(STEP 3)
Audible Click
(STEPS 3
and 6)
