OPERATION
UP Button
O
P
E
R
A
T
Red Emergency Stop Button
I
O
N
Control
Box
Press IN to Stop
Lift Arms

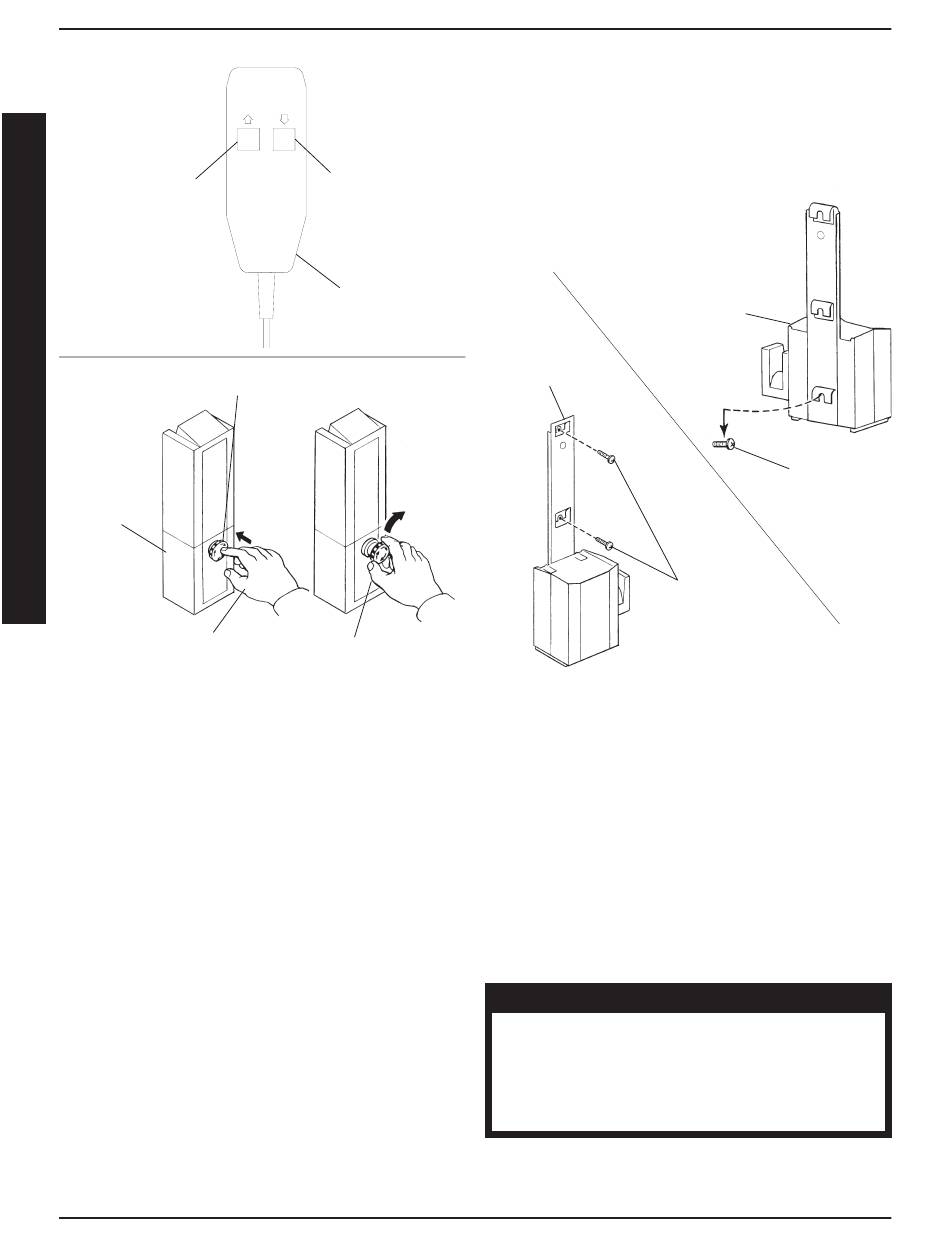

FIGURE 3 - RAISING/LOWERING

MOUNTING BATTERY CHARGER

(FIGURE 4)
NOTE: Refer to your local regulations concerning
proper mounting procedures.
1. Place the battery charger with mounting bracket
on the wall at the desired position.
2. With a pencil, mark the MIDDLE hole position.
3. Measure down 6-1/2-inches (16.5 cm) from the pen-
cil mark and drill one (1) mounting hole.
4. Install the BOTTOM mounting screw until there is
an approximate 1/8-inch (3 mm) gap between the
screw head and the wall.
5. Install the battery charger with mounting bracket
onto the bottom mounting screw.
6. Drill the remaining two (2) mounting holes.
DOWN Button
Hand Control
Rotate CLOCKWISE to
Disengage Emergency Stop
STAND UP LIFT
7. Install the two (2) remaining mounting screws
through the mounting bracket and into the wall.
Tighten securely.
8. Plug the battery charger into the wall electrical outlet.
NOTE: ON LED should illuminate.
Mounting
Bracket
(STEP 6)
FIGURE 4 - MOUNTING BATTERY CHARGER

CHARGING BATTERIES

(FIGURE 5)
NOTE: Invacare recommends the battery be recharged
daily.
NOTE: An audible alarm will sound (horn will beep) when
battery is low.
1. Lift UP on the handle on the top of the battery.
2. Lift the battery UP and OUT away from the control
box.
WARNING
Make sure there is an audible click when
mounting battery on the battery charger
to confirm proper mounting. Otherwise,
injury or damage may occur. Refer to FIG-
URE 5 for correct mounting.
3. Place the battery on the battery charger as shown in
FIGURE 5. Make sure there is an audible click.
8
Battery
Charger with
Mounting
Bracket
(STEP 5)
BOTTOM
Mounting
Screw
(STEP 4)
Mounting
Screws
(STEP 7)
