Invacare® Robin®

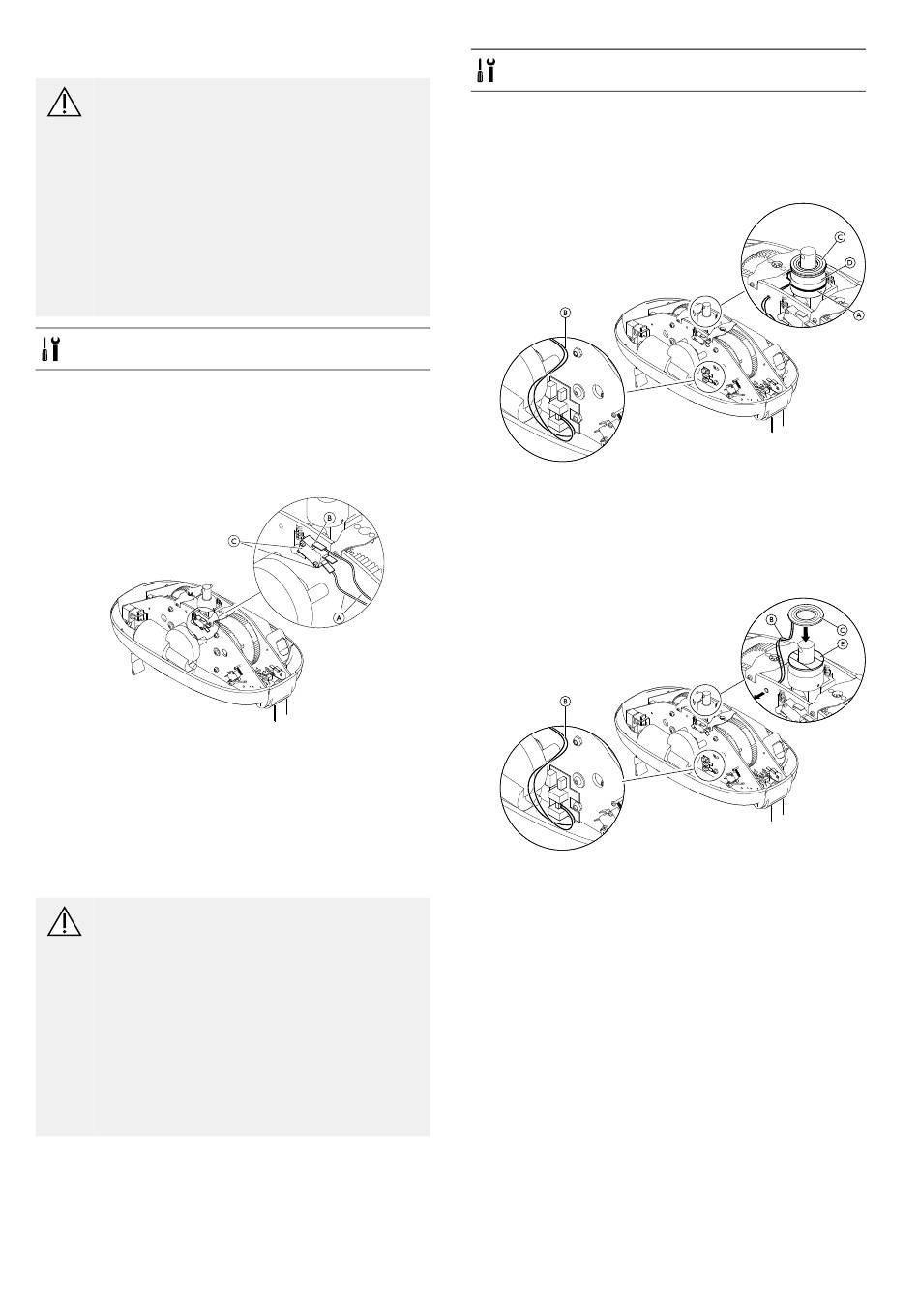

6.10 Replacing the Twin Speed Switch

CAUTION!
Static electricity can damage the PCBs inside
the hoist.
Before working in the inside of the hoist:
– Pull the red emergency strap to turn off the
hoist.
– Remove the hoist from the track system.
(Refer to 6.1 Dismounting the ceiling hoist,
page 12)
– Remove the cover from the hoist. (Refer to
6.3 Removing the hoist cover, page 13)
– An anti-static mat must be used when
working inside the ceiling hoist.
T10 Torx screwdriver
1. Place the hoist on a surface (such as the corner of a
table) so that the hoist is supported yet the straps
and hand control are free hanging. Ensure the hoist is
safe and cannot slip/fall of the table.
2. Remove the two yellow cables A from the twin speed
switch B.
3. Remove the two screws C.
4. Attach the new twin speed switch with screws C.
Connect the yellow cables A. Ensure, they are
connected to the bottom and top terminals.
5. Re-assemble the hoist and reset the emergency stop.
6.11 Replace Contact Disc for Robin®
Mover
CAUTION!
Static electricity can damage the PCBs inside
the hoist.
Before working in the inside of the hoist:
– Pull the red emergency strap to turn off the
hoist.
– Remove the hoist from the track system.
(Refer to 6.1 Dismounting the ceiling hoist,
page 12)
– Remove the cover from the hoist. (Refer to
6.3 Removing the hoist cover, page 13)
– An anti-static mat must be used when
working inside the ceiling hoist.
18
Screwdriver
1. Remove the cable tie A.
2. Remove the contact disc cables B from the Mover
PCB, using a terminal screwdriver. Note brown cable
top and blue cable bottom.
Feed the cables through the chassis plate.
3. Carefully separate and remove the complete contact
disc C from the suspension base D by releasing the
self-adhesive tape.
4. Remove, clean off the remains of the self-adhesive
tape.
5. Fit the new self-adhesive tape E and the new contact
disc C.
6. Feed the cables B through the chassis plate and
connect them to the Mover PCB.
7. Re-assemble the hoist and reset the emergency stop.
1586747-E
