Inverter welding machine 120 A
3
2
4
6
19
7
8
5
9
12
24
22
23
27
22
23 26
20
15
1
14
12
13
10
11
17
27
25
26
28
26
GB
GB
Important: read this instruction manual carefully to become familiar with the device before connecting it to the gas. Keep
the instructions in a safe place so that you can read them again. Hand over the instructions when providing the device to
third parties.
KEEP OUT OF THE REACH OF CHILDREN!
18
Intended use
This welding device is suitable for arc welding without gas with self-protective ux-cored welding wire. It can be used with a variety of me-
tals such as carbon steel, alloy steel, stainless steel and other stainless steels. With the included electrode holder, the device can also be used
for electrode welding with stick electrodes. It features an indicator lamp, a thermal protection indicator and a cooling fan. It is also equipped
with a carrying strap that enables the product to be lifted and moved in a safe manner. Exclusively for use by quali ed personnel or persons
who are trained in the tasks to be completed and who are fully aware of the potential dangers of careless behavior.

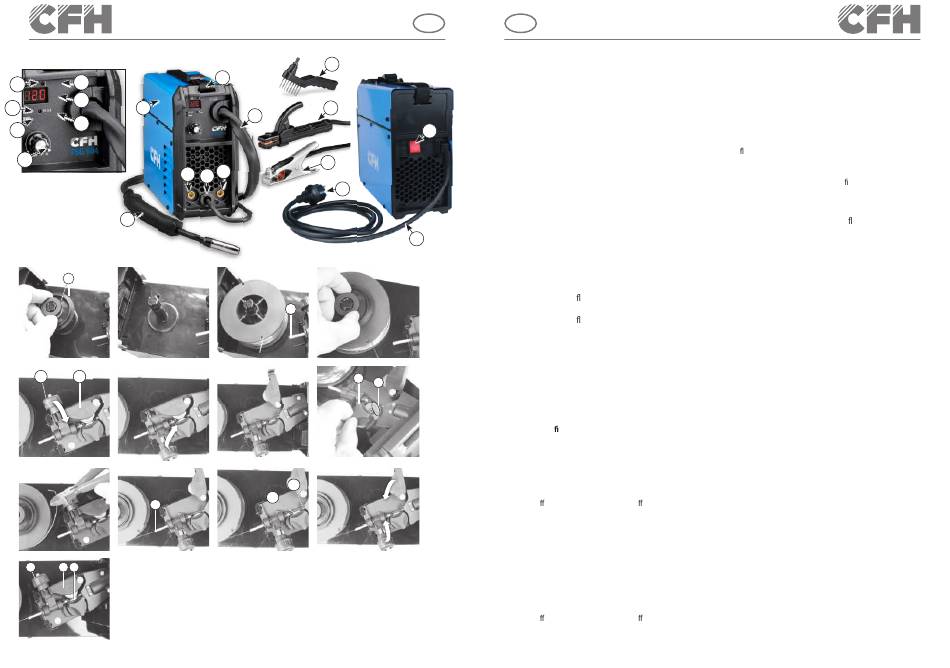

Equipment
(1) Carrying strap
(2) Control lamp for operation (input
16
voltage)
(3) Overheat control lamp (overload
protection)
(4) Output voltage in amperes
(5) Rotary knob function (synergistic)
(6) Display for 0.8 mm ux-cored
welding wire
(7) Display for 0.9 mm ux-cored
welding wire
(8) MMA display
Delivery
1 Flux-cored wire welding machine with
hand torch and hose package
1 burner nozzle (pre-assembled)
2 contact tips (1 x 0.9 mm pre-assemb-
Technical speci cations
MMA
Mains connection:
Max. welding current and the corresponding
rated operating voltage:
Rated value of mains voltage:
Maximum rated value of mains current: I1max: 23 A
Maximum e ective input current:
Rated value of open-circuit voltage:
Protection class:
Weldable material thickness:
Flux-cored welding wire
Mains connection:
Max. welding current and the corresponding
rated operating voltage:
Rated value of mains voltage:
Maximum rated value of mains current: I1max: 19.5 A
Maximum e ective input current:
Rated value of open-circuit voltage:
Protection class:
Inverter welding machine 120 A
(9) Output ground terminal (-)
(10) Electrode holder output (+)
(11) Supply cable hand torch hose
package
(12) Manual torch for arc welding with
hose package
(13) Ground clamp MK 300 A
(14) Electrode holder EH 200 A
(15) Slag hammer
(16) Power cable
(17) Mains plug
(18) ON/OFF switch
led; 1 x 0.8 mm)
1 Electrode holder EH 200 A
1 Ground clamp MK 300 A
1 Carrying strap
230 V ~ 50-60 Hz (AC)
15 A / 20.4 V to 120 A / 24.8 V
U1: 230 V
I1e : 7.3 A
U0: 86 V
IP21S
max. 4.0 mm
230 V ~ 50-60 Hz (AC)
30 A / 15.5 V to 120 A / 20 V
U1: 230 V
I1e : 6.2 A
U0: 86 V
IP21S
(19) Maintenance ap
(20) Burner nozzle
(21) Contact nozzle
(22) Adjusting screw
(23) Pressure feed unit
(24) Coil holder
(25) Feed roller holder
(26) Feed roller
(27) Wire entry
(28) Cable assembly bracket
1 Slag hammer with wire brush
1 User manual
21
