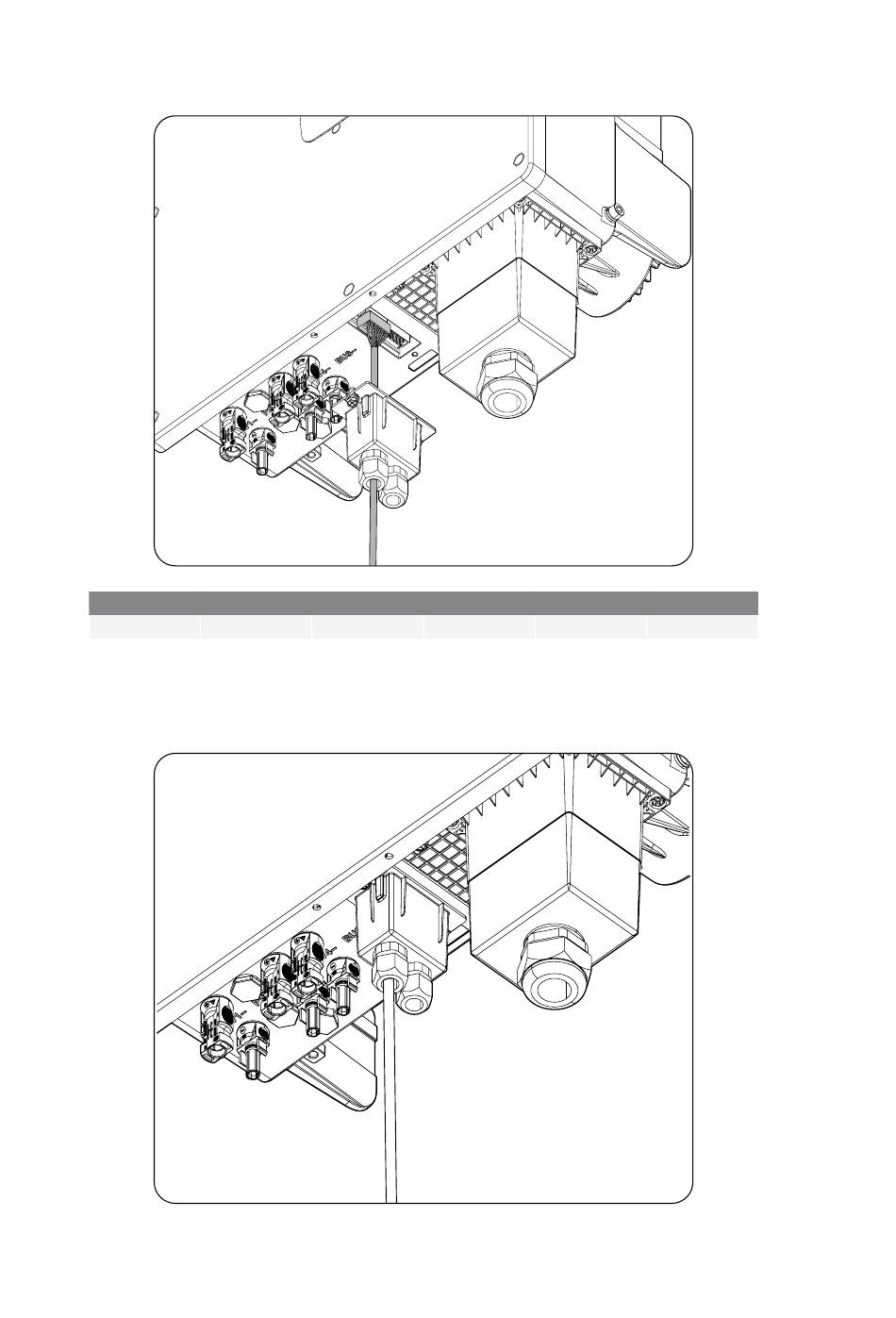

2. Wire the aerial connector in the positions described and connect it to the female connector as shown.
1 A
+
The connector has the positive and negative pins and the shield of the RS-485 communication duplicated in order
to continue with another node if necessary. In case of a single communication, use pins 1, 2 and 5 only.
3. Mount the cover to protect the connection and secure it with the two bolts (torque 0.8 Nm). Tighten the
cable gland.
32
2B 3 A
- +
Connection of communications
3B 5PE
- Shield
ACL2012IQM01_A - Installation and Operation Manual
6PE
Shield
