Installing the unit
1.

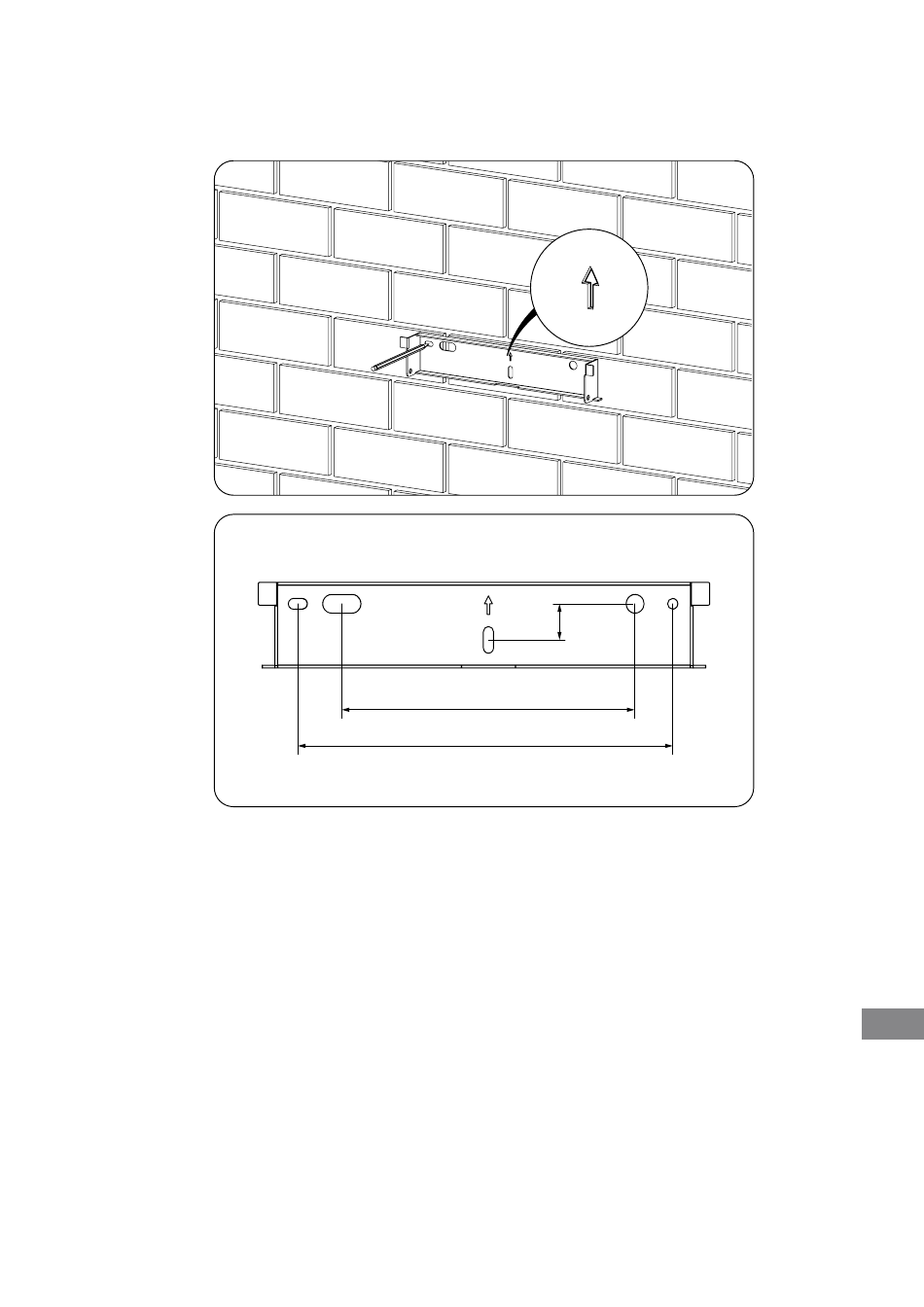

Mount the plate on the wall, using a level to ensure it is horizontally aligned, and mark the holes.
B
Select one of the upper pairs of holes (A or B), in addition to the lower hole C.
2.
Drill holes in the wall with a suitable bit for the screws to be used to secure the inverter to the wall later.
The diameter of the holes in the plate and inverter is 8 mm.
ACL2012IQM01_A - Installation and Operation Manual
A
C
246
294
A
B
27
