2. Unit description

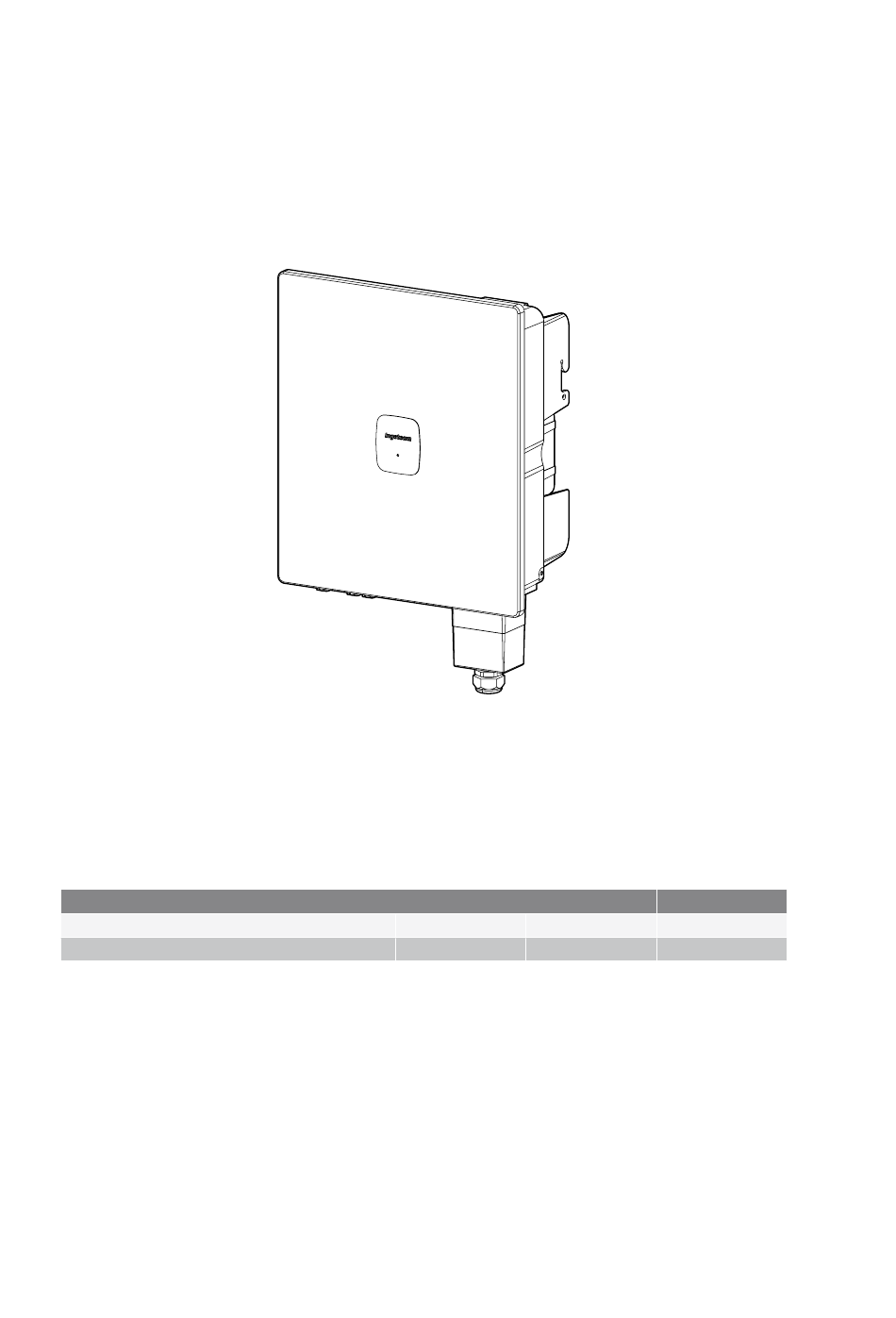

2.1. Overview
The basic purpose of an inverter is to convert the direct current generated by up to two PV arrays into alternating
current to feed into the electricity grid.
Additionally, its purpose is to find the maximum power points of these photovoltaic arrays and comply with the
minimum requirements for the different electricity grid support regulations.
These inverters do not have a transformer for the connection of PV arrays isolated from the electricity grid.
Some of the main characteristics of these inverters:
• Measurement of MPPT input currents.
• DC switch.
• Type-2 AC and DC surge arresters.
They have the following maximum power point trackers at the DC input. The connection uses quick connectors.
DC inputs
No. of maximum power point trackers
No of pairs of quick connectors
10
IS 10TL M2 IS 15TL M2
2 2
2 3
ACL2012IQM01_A - Installation and Operation Manual
Unit description
IS 20TL M2
2
4
