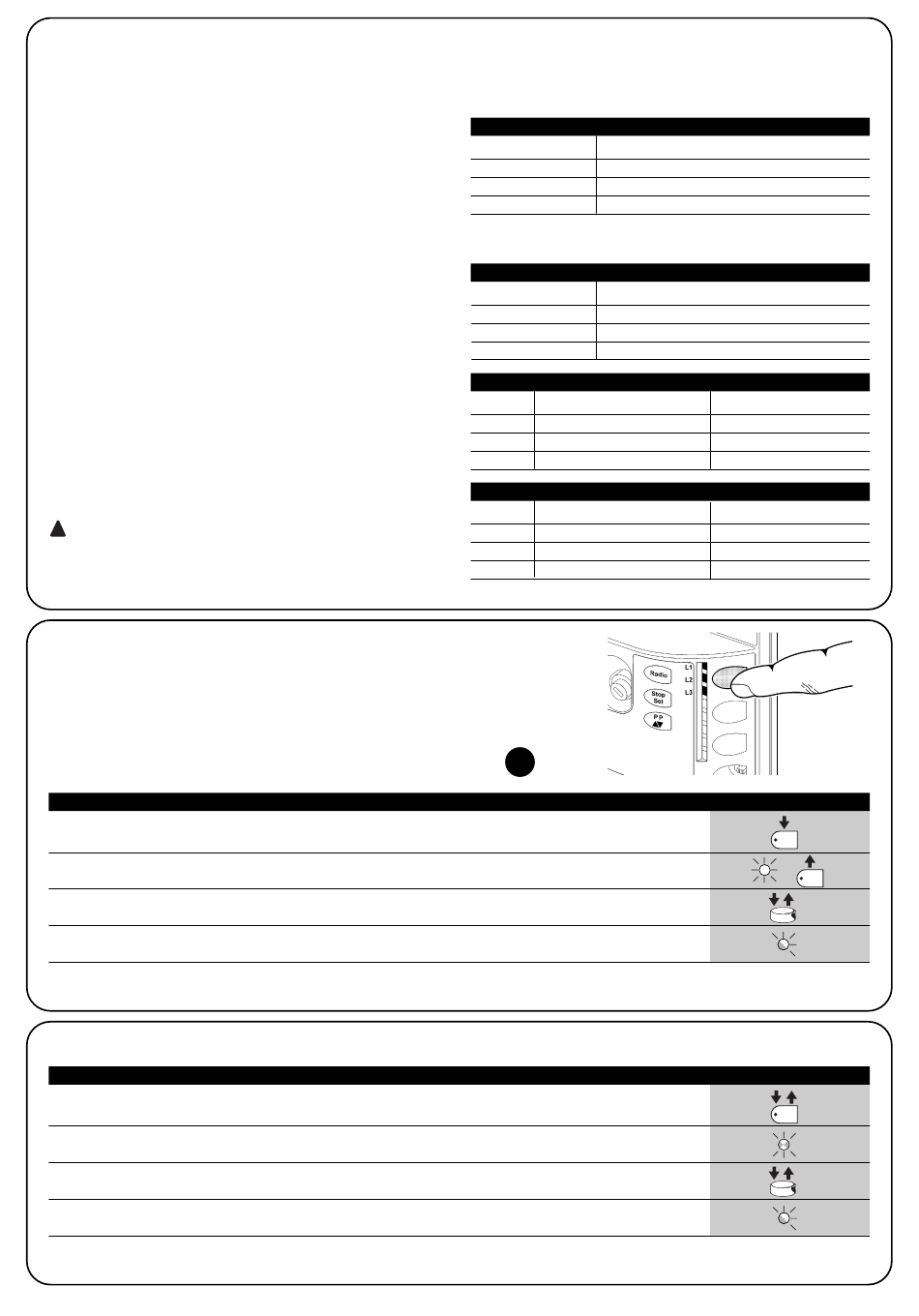

4.7) Memorization of radio transmitters
Each radio transmitter is recognised by the said receiver by means of a "code" which is different from that of any other transmitter. A "mem-
orisation" phase must therefore be performed in order to allow the receiver to recognise each single transmitter. Transmitters can be mem-
orised in 2 modes:
Mode I: in this mode the function of the transmitter buttons is fixed
and each button corresponds to the command in the control unit
shown in Table 5. A single stage is carried out for each transmitter,
during which all the transmitter buttons are memorised. It does not
matter which button is pressed during this stage and only one place
in the memory is used. A transmitter can normally only control a sin-
gle automation in Mode I.
Mode II: in this mode, each transmitter button can be associated
with one of the 4 possible control unit commands shown in Table 6.
Only one button is memorised for each stage, namely the one which
was pressed during memorisation. One place in the memory is
occupied for each button memorised.
In Mode II; different buttons on the same transmitter can be used in
order to give the same automation more than one command or to
control more than one automation. For example, in Table 7, only
automation "A" is controlled, and the T3 and T4 buttons are associ-
ated with the same command. Alternatively, three automations are
controlled in the example shown in Table 8, namely "A" (buttons T1
and T2), "B" (button T3) and "C" (button T4).
!
Since the memorization procedures are timed (10s),
you must read the instructions in the following paragraphs
before you proceed with their execution.
4.7.1) Memorization Mode I
Table 9: to memorize a transmitter in mode I
1.
Press the button on the receiver and hold it down (approx. 4 s)
2.
Release the button when the radio LED on the control unit lights up
3.
Within 10s, press any button on the radio transmitter to be memorized and hold it down for at least 3s
4.
If the memorization procedure is successful, the LED on the receiver will flash 3 times.
If there are other transmitters to be memorized, repeat step 3 within the next 10s.
If no new codes are received within 10 seconds, the memorisation phase terminates.
4.7.2) Memorization Mode II
Table 10: to memorize the button of a transmitter in mode II
1.
Press the radio button on the control unit as many times as the number corresponding to the desired
command, according to table 5
2.
Make sure that the radio LED on the control unit makes as many flashes as the number corresponding
to the selected command
3.
Within 10s, press any button on the radio transmitter to be memorized and hold it down for at least 3s
4.
If the memorization procedure is successful, the LED on the receiver will flash 3 times.
If there are other transmitters to be memorized for the same command, repeat step 3 within the next 10s.
If no new codes are received within 10 seconds, the memorisation phase terminates.
10
Table 5: Memorization Mode I
T1 button
"Step-by-step" command
T2 button
"Pedestrian gate" command
T3 button
"Open" command
T4 button
"Close" command
Note: single-channel transmitters only have a T1 button,
two channel transmitters only have T1 and T2 buttons.
Table 6: commands available in Mode II
1
"Step-by-step" command
2
"Pedestrian gate" command
3
"Open" command
4
"Close" command
Table 7: example of memorization in Mode II
T1 button
"Open" command
T2 button
"Close" command
T3 button
"Pedestrian gate" command
T4 button
"Pedestrian gate" command
Table 8: example of memorization in Mode II
T1 button
"Open" command
T2 button
"Close" command
T3 button
"Step-by-step" command
T4 button
"Step-by-step" command
19
Automation A
Automation A
Automation A
Automation A
Automation A
Automation A
Automation B
Automation C
Example
4s
3s
x3
Example
1....4
1....4
3s
x3
