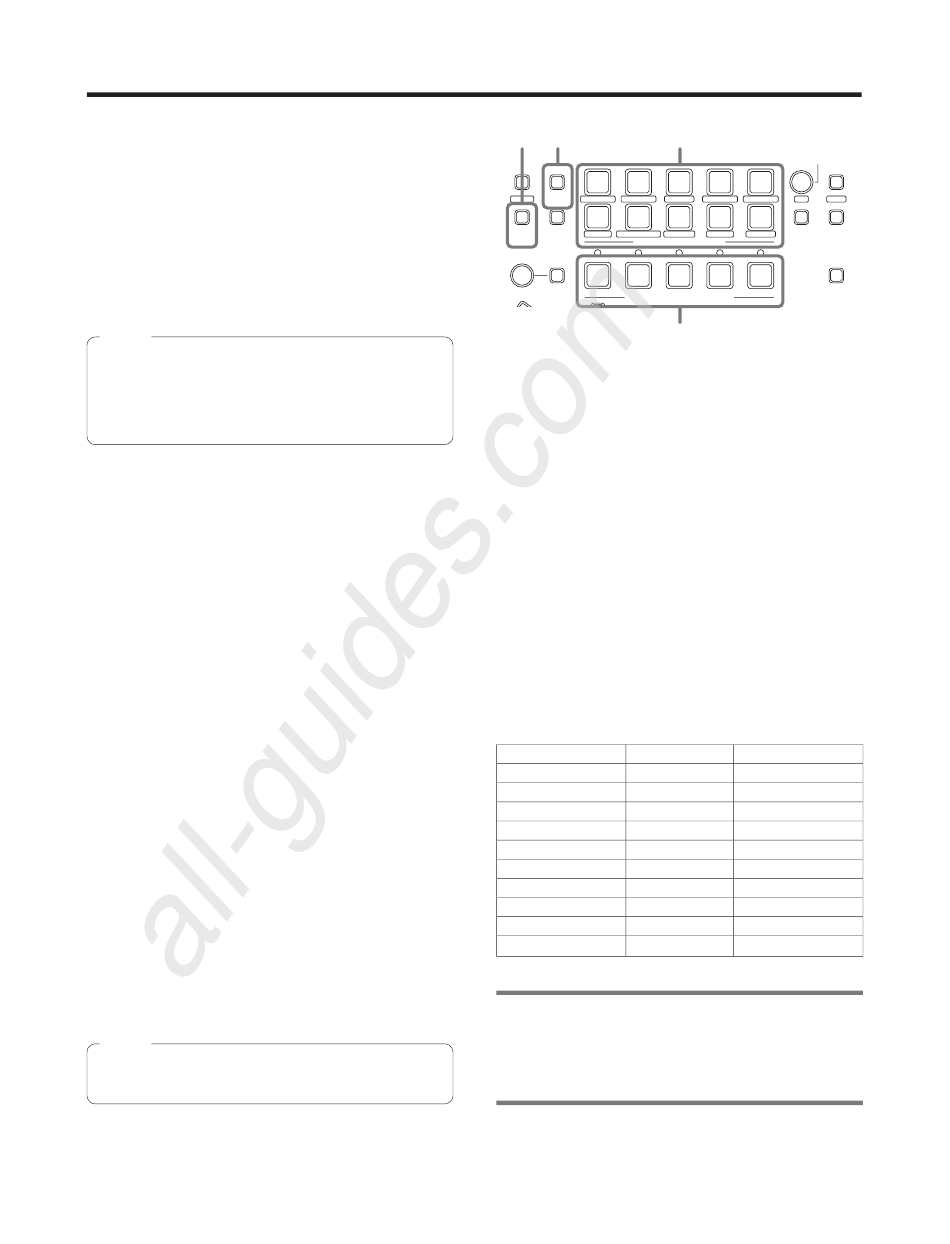

Setting and operating the preset memories
This unit is provided with a function for registering the
positions to be shot by the remote cameras and the settings
of the remote cameras in the remote cameras themselves.
Up to 100 sets of data (presets) can be registered in these
memories.
The positions and settings listed below can be registered.
  Pan/tilt positions   Lens iris settings
  Zoom positions
  Focus positions   White balance mode
Note
The number of position and setting data which can be
registered as preset memory data differ from one remote
camera to another.
For further details, check the Operating Instructions of
the model concerned.
 Registering data in the preset 
memories
1
Press one of the CAMERA STATUS/SELECTION
buttons 1 to 5 to select the remote camera to
be operated.
2
Output the images to be shot by the camera to
the monitor.
The camera angle to be registered is determined by
operating the PAN/TILT lever and ZOOM button.
If necessary, adjust the focus and iris as well.
3
Press the STORE button.
4
After pressing the PAGE button, press the
PRESET MEMORY/MENU button to specify the
"Page number" to be registered.
In this step, the "Page number" to be registered as the
preset memory is specified.
  For details on the relationship between the "Preset
number", "Page number" and "Number on the page",
refer to the section entitled <Preset numbers and
registered pages>.
5
Hold down the PRESET MEMORY/MENU
button to specify the "Number on the page".
The preset memory data is registered at the same time
as the "Number on the page" is specified.
Note
When specifying the "Number on the page", hold down
the PRESET MEMORY/MENU button.
All manuals and user guides at all-guides.com
(manual iris only)
settings
3 4
1 2
MENU PAGE GAIN/PED R/B GAIN
6 7
STORE DELETE
DETAIL SCENE/MODE
PRESET MEMORY / MENU
1 2
IRIS AUTO
CAMERA STATUS / SELECTION
To register more data, repeat steps
  When specifying a different "Number on the page" on the
same "Page number", it is registered by skipping step
and carrying out the operation in step
  The PRESET MEMORY/MENU button corresponding to
the preset number lights when preset memory data has
been registered in the AW-HE50.
<Preset numbers and registered pages>
Preset number
1 to 10
11 to 20
21 to 30
31 to 40
41 to 50
51 to 60
61 to 70
71 to 80
81 to 90
91 to 100
 Memo 
Example: When specifying preset 21
Press the following buttons in the order given:
PAGE button  PRESET MEMORY/MENU 3 button 
PRESET MEMORY/MENU button 1.
5 (E)
4, 5
3 4 5
R/B PED AWB/ABB SHUTTER F2
8 9 10
USER1
CAMERA SETUP SYSTEM
3 4 5
PT ACTIVE
1
2 5
to .
5
only.
Page number Number on the page
1 1 to 10
2 1 to 10
3 1 to 10
4 1 to 10
5 1 to 10
6 1 to 10
7 1 to 10
8 1 to 10
9 1 to 10
10 1 to 10
EXIT
USER2
