Setting the functions when the unit is linked with the switcher
 Setting for the information to 
be displayed on the OSD
This setting displays the remote camera information on the
OSD of the monitor which is connected to the switcher to be
linked to the unit.
The setting is established using the [SETUP] menu.
Before taking the steps here, the steps for "Switcher network
settings" and "Setting the image output and image input"
described earlier must be taken.
First, the basic menu operations will be described.
1
Set the MENU button to ON.
Press the MENU button to light its indicator.
2
Set PRESET MEMORY/MENU 9 button (SETUP)
to ON.
When the button is pressed and its indicator is lit, the
[SETUP] menu is displayed on the LCD panel.

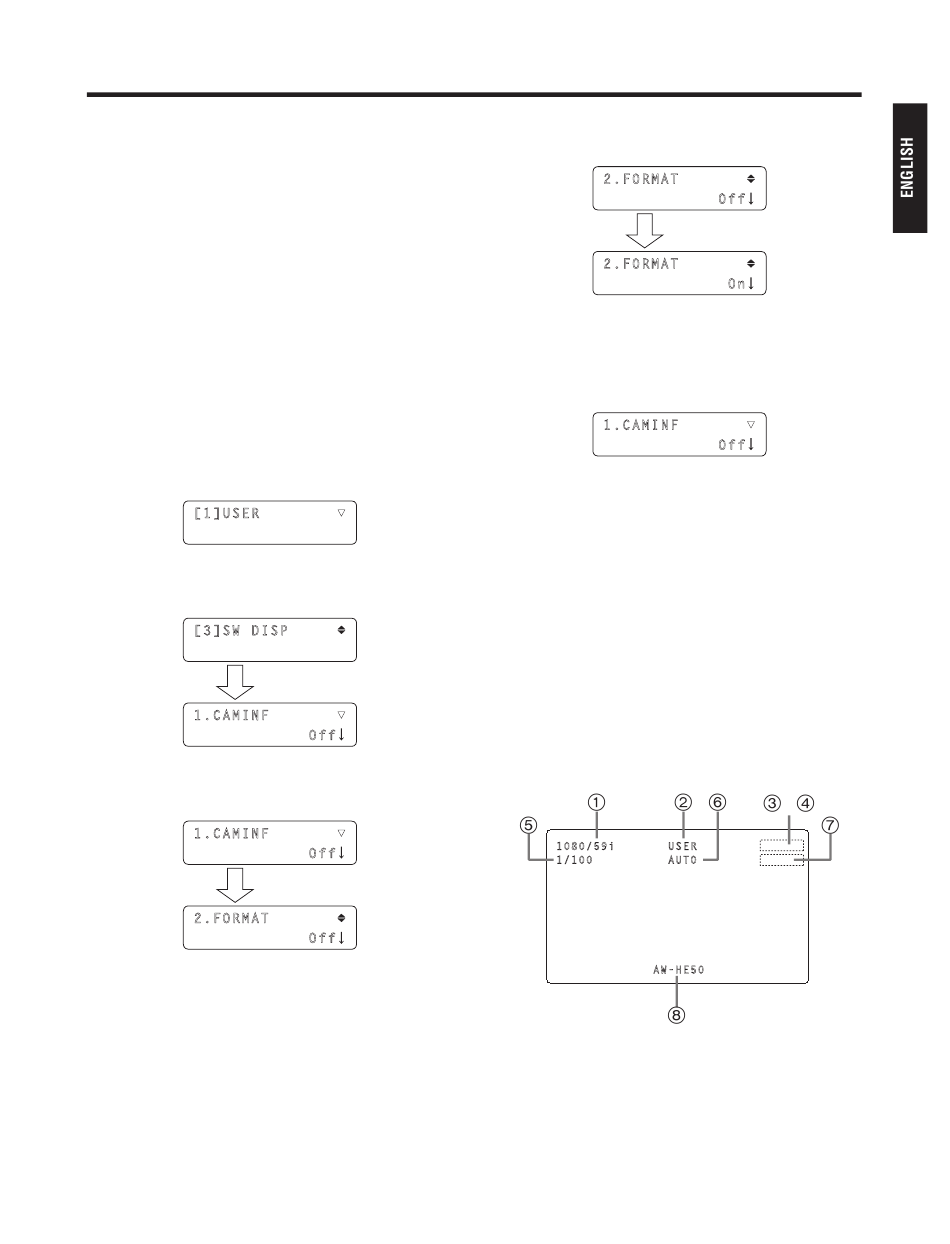

[1]USER
3
Turn the F1 dial to display the SW DISP menu,
and press the F1 dial.
[3]SW DISP
Press the F1 dial.
1.CAMINF
4
Turn the F1 dial to and select the menu item to
be set.
1.CAMINF
Turn the F1 dial.
2.FORMAT
