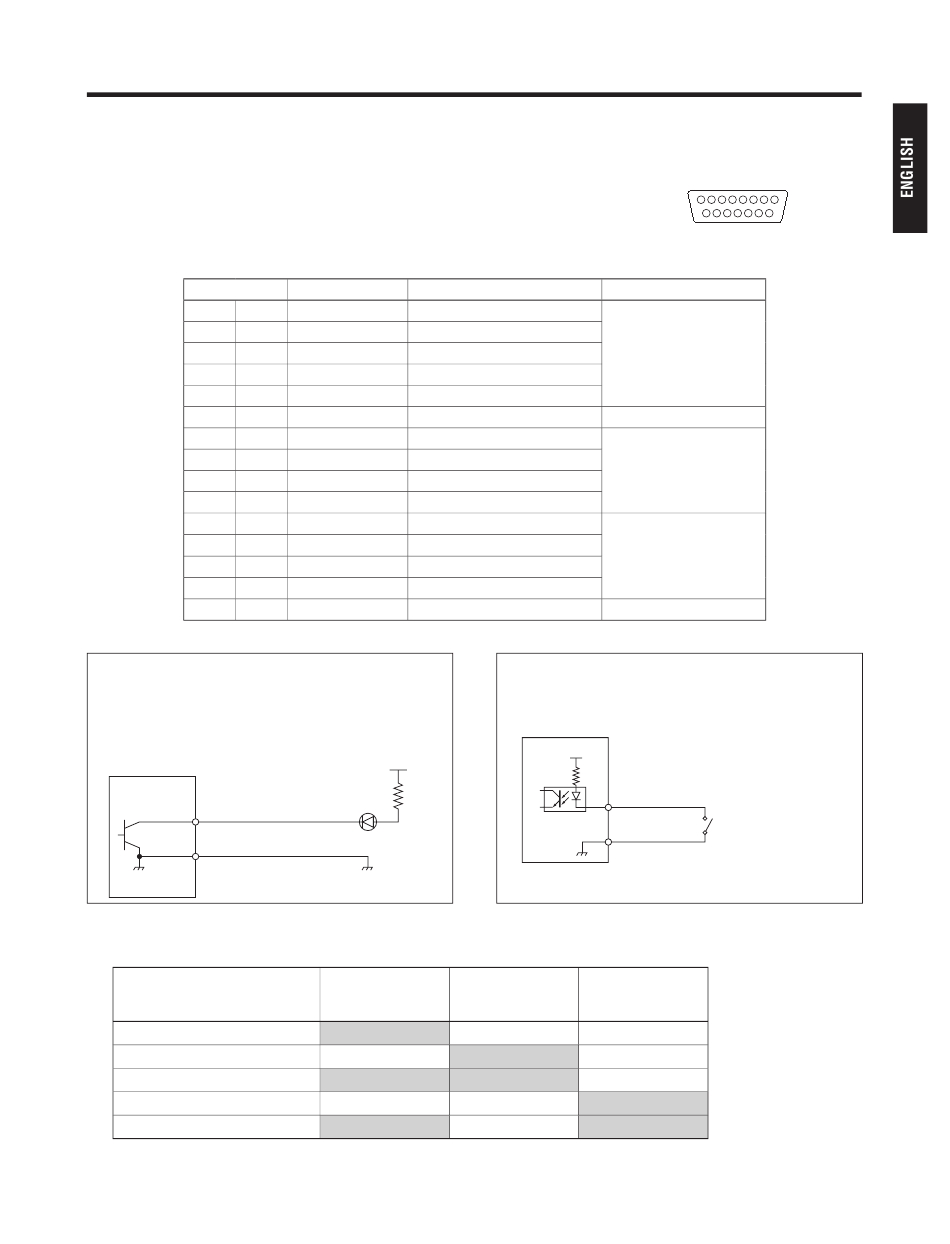

Control interface for external devices
 TALLY/GPI 
TALLY IN 1 to TALLY IN 5 are contact input ports which are used to light the unit's
tally indicators (above the CAMERA STATUS/SELECTION buttons).
The tally lamps light with contact input.
GPI IN 1 to GPI IN 4 are contact input ports which are used to control the unit from
an external source.
GPI OUT 1 to GPI OUT 4 are open output ports which are used to output the
statuses to an external source.
Pin No.
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
Example of GPI OUT connections
Ensure that the conditions given below are satisfied.
Dielectric strength: Max. DC 24 V
Current: Max. 50 mA
AW-RP50
GPI OUT
(Max. current: 50 mA)
GND
: The selection statuses (CAMERA STATUS/SELECTION buttons 1 to 5) of the remote cameras can be monitored at
GPI OUT 1 to GPI OUT 3.
CAMERA STATUS/SELECTION
button
1
2
3
4
5
