Setting the functions when the unit is linked with the switcher
Set the various functions to be used when the unit is linked
with the switcher.
Setting the image output and
image input
This setting establishes the correlation between the image
output (remote camera) and image input (switcher).
By establishing the setting, the switcher is notified if a
remote camera which has been set is selected when the
remote cameras have been selected by the unit.
1
Set the MENU button to ON.
Press the MENU button to light its indicator.
2
Set PRESET MEMORY/MENU 10 button (SYSTEM)
to ON.
When the button is pressed and its indicator is lit, the
[SYSTEM] menu is displayed on the LCD panel.

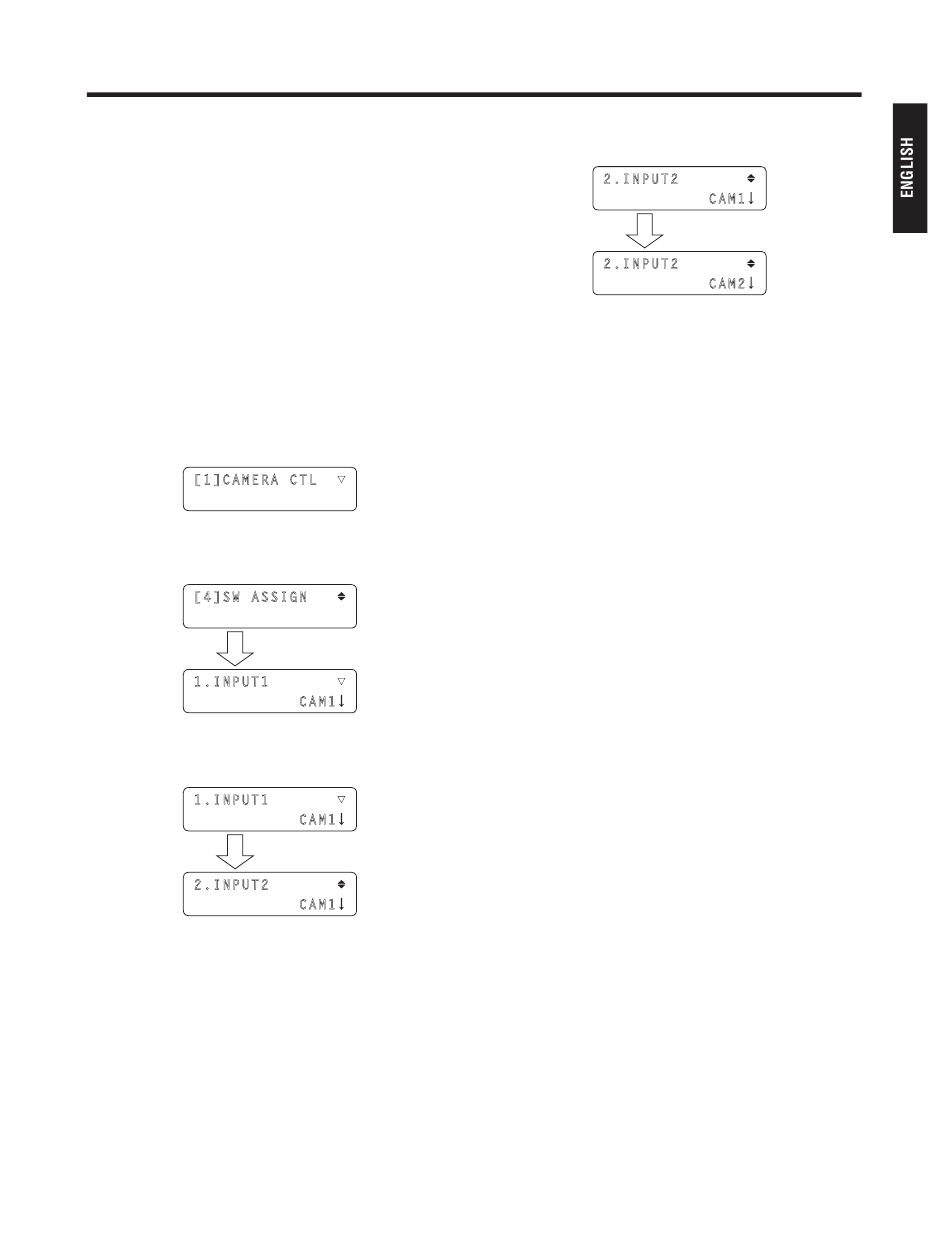

[1]CAMERA CTL
3
Turn the F1 dial, display the SW ASSIGN menu,
and press the F1 dial.
[4]SW ASSIGN
Press the F1 dial.
1.INPUT1
4
Turn the F1 dial to select the input line of the
switcher.
1.INPUT1
Turn the F1 dial.
2.INPUT2
All manuals and user guides at all-guides.com
▼
▼
CAM1
▼
CAM1
CAM1
28 (E)
5
Turn the F2 dial, select the remote camera, and
then press the F2 dial to enter the selection.
2.INPUT2
Turn the F2 dial, and then press
it.
2.INPUT2
The switcher has five input lines: INPUT1 to INPUT5.
Take the above steps to set the remote cameras for the input
lines, and then operate the remote cameras.
Select "NoAsign" if the switcher is not to be notified of the
correlation setting when the remote cameras have been
selected.
CAM1
CAM2
