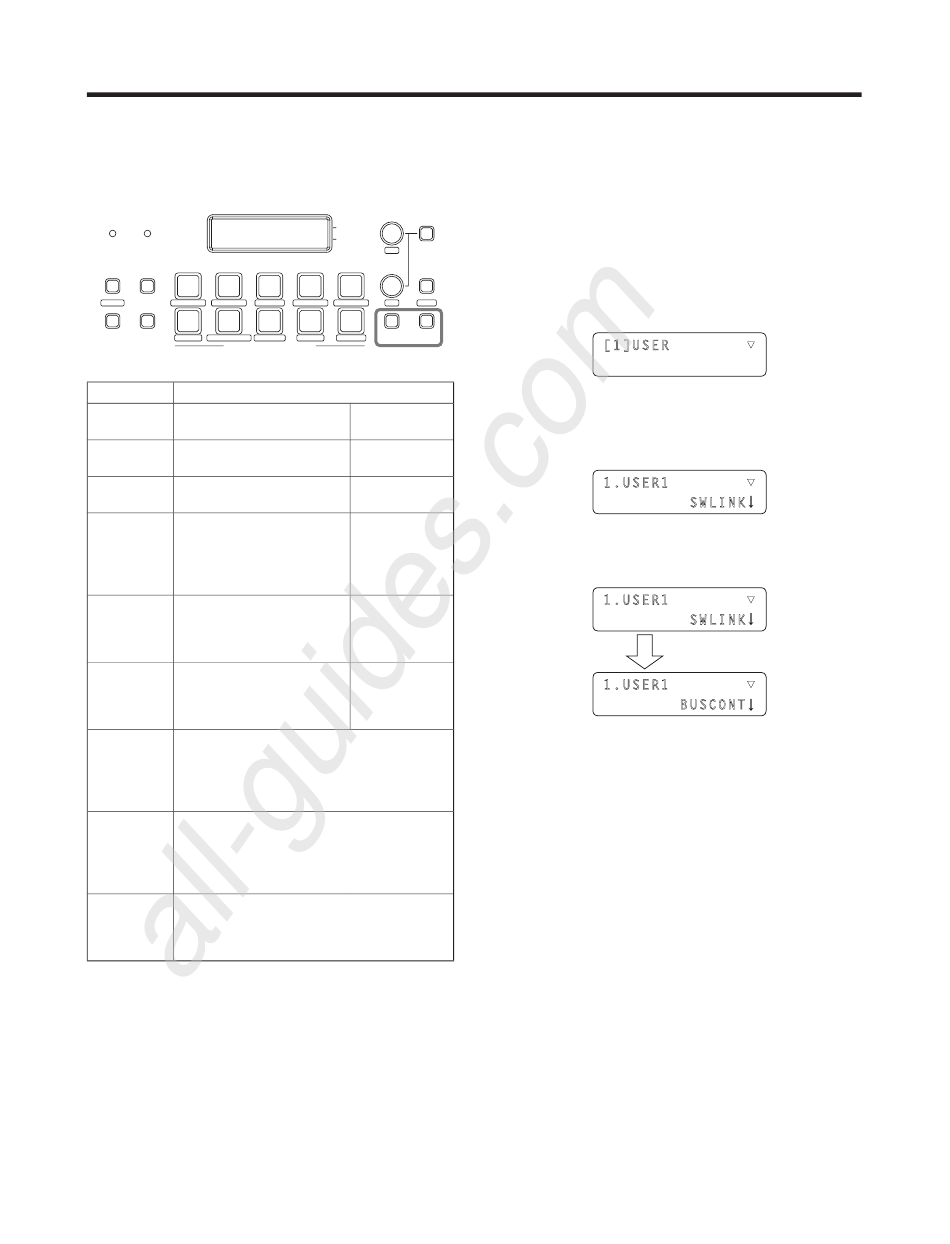

Setting the USER buttons
Menu items can be assigned to the two USER buttons
(USER1, USER2).
The target function can be activated simply by pressing the
USER button (USER1 or USER2).
POWER ALARM
1 2
MENU PAGE GAIN/PED R/B GAIN R/B PED
6 7
STORE DELETE DETAIL SCENE/MODE CAMERA
PRESET MEMORY / MENU
Menu item Details of operation performed
SWLINK This sets the link control
between the unit and switcher.
BUSCONT This is the bus switching
setting.
FASIST This sets the focus assist
function.
CAMSEL This displays icons at the
bottom left of the images from
the remote camera selected
by the unit on the multi view
display of the switcher.
TALLY_IP This sends the tally information
sent periodically by UDP from
the switcher to the remote
camera.
CAMINF This sends the camera
information of the remote
camera selected to the
switcher.
AWB AWB is executed when the USER button, in which
AWB has been assigned, is pressed.
When AWB is executed successfully, the indicator
of the button goes off; conversely, when it is not
executed successfully, it blinks.
ABB ABB is executed when the USER button, in which
ABB has been assigned, is pressed.
When ABB is executed successfully, the indicator
of the button goes off; conversely, when it is not
executed successfully, it blinks.
POWER OFF When the USER button in which POWER OFF
has been assigned is held down, the indicator of
the button lights for an instant, and power OFF is
requested for all the remote cameras connected.
All manuals and user guides at all-guides.com
F1
F2
F1 CAMERA
OSD
3 4 5
AWB/ABB SHUTTER F2 EXIT
8 9 10
SETUP SYSTEM USER1 USER2
On: Enable
Off: Disable
On: Enable
Off: Disable
On: Enable
Off: Disable
On: Display
Off: Non-display
On: Enable
Off: Disable
On: Enable
Off: Disable
 Registering functions in the 
USER buttons
1
Set the MENU button to ON.
Press the MENU button to light its indicator.
2
Set the PRESET MEMORY/MENU 9 button
(SETUP) to ON.
When the button is pressed and its indicator lights, the
[SETUP] menu is displayed on the LCD panel.
[1]USER
3
Press the F1 dial.
4
Turn the F1 dial to display [USER1] or [USER2].
1.USER1
5
Turn the F2 dial to select the item to be
assigned, and press the F2 dial.
1.USER1
1.USER1
15 (E)
▼
▼
SWLINK
▼
SWLINK
Turn the F2 dial, and then press
it.
▼
BUSCONT
