Setting the functions
 Setting the movement range 
of the remote camera (limiter
function)
This unit has a limiter function which is a function that limits
the movement range of the remote cameras.
There are four limiter positions: the upper, lower, left and
right limits of the movement range.
When the AW-HE50 is used:
Depending on the nature of the AW-HE50's installation
location, there may be some subjects inside its movement
range which it is not desirable or necessary to shoot.
In cases like this, the shooting range of the AW-HE50 can
be limited by setting limiters in front of those subjects which
are not to be shot.
When any other remote camera is used:
Depending on the installation position, there may be an
obstruction in the movement range, and the remote cameras
may come into contact with this obstruction.
If the remote cameras come into contact with an obstruction,
trouble or accidents may result.
In cases like this, a limiter can be set in front of the
obstruction to prevent contact.
 Setting the upper limit 
From the [SETUP] menu, select [PTZ ADJ] and display
[LIMIT UP]. Then set the upper limit.
The setting that is displayed differs between the AW-HE50
and other remote cameras.

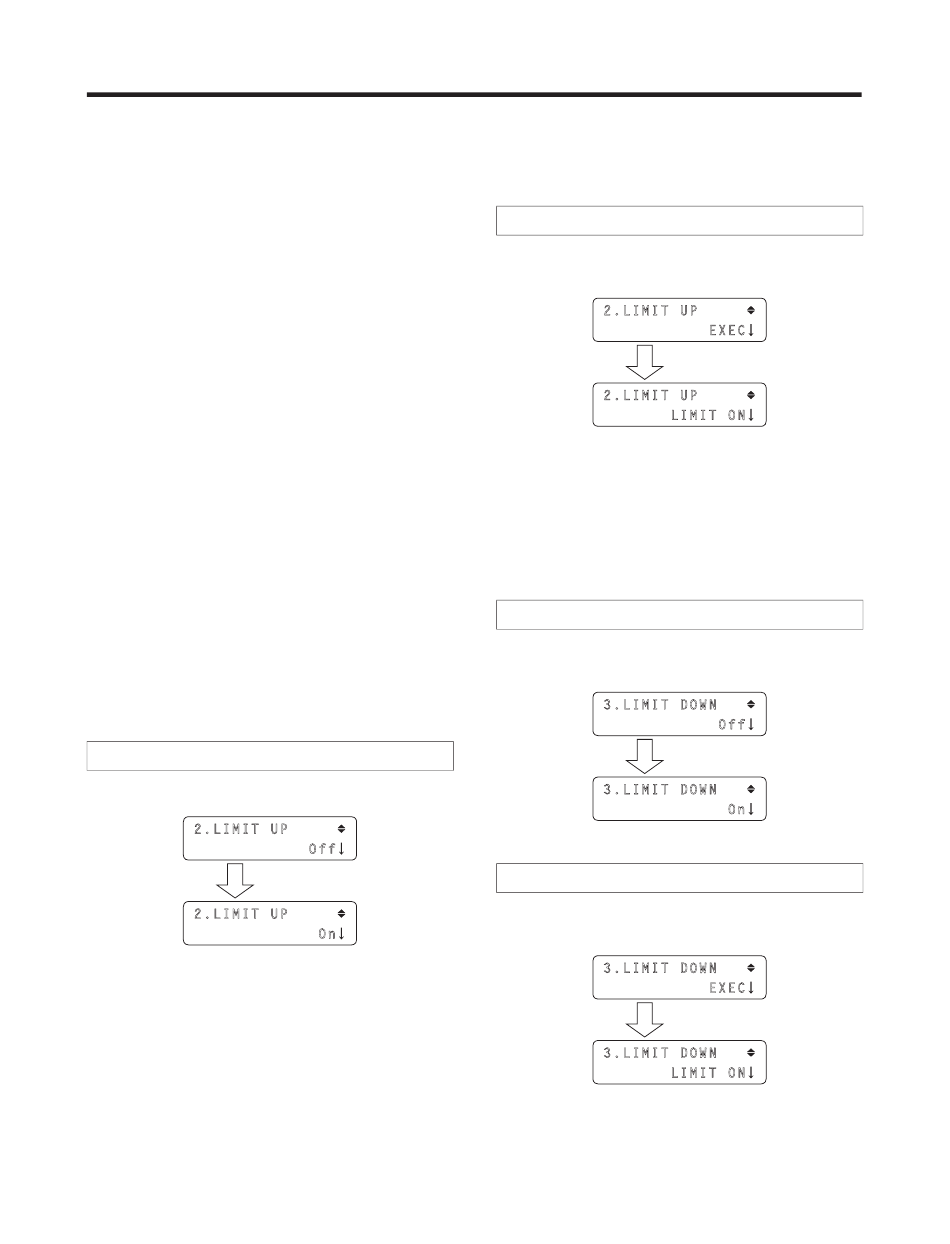

Display that appears with the AW-HE50
The current setting status is displayed in the LIMIT UP item.
2.LIMIT UP
Turn the F2 dial, and then press
it.
2.LIMIT UP
All manuals and user guides at all-guides.com
Off
On
21 (E)
Display that appears with other remote cameras
The setting status is displayed after the completion of the
setting in the LIMIT UP item.
2.LIMIT UP
Press the F2 dial.
2.LIMIT UP
LIMIT ON
 Setting the lower limit 
From the [SETUP] menu, select [PTZ ADJ] and display [LIMIT
DOWN]. Then set the lower limit.
The setting that is displayed differs between the AW-HE50
and other remote cameras.
Display that appears with the AW-HE50
The current setting status is displayed in the LIMIT DOWN
item.
3.LIMIT DOWN
Turn the F2 dial, and then press
it.
3.LIMIT DOWN
Display that appears with other remote cameras
The setting status is displayed after the completion of the
setting in the LIMIT DOWN item.
3.LIMIT DOWN
Press the F2 dial.
3.LIMIT DOWN
LIMIT ON
EXEC
Off
On
EXEC
