Setting linkup with the switcher
This setting is used to link the unit with an optional switcher
(AW-HS50).
To link the unit with the switcher, the following settings must
be established in the unit.
IP address (switcher) setting
[SYSTEM] menu  [SW IP ADR]
Assign information setting
[SYSTEM] menu  [SW CTL]
Link connection setting
[SETUP] menu  [SW LINK]  [SWLINK]
Settings at the switcher
For details on the settings selected at the switcher,
refer to the Operating Instructions of the switcher.
 Switcher network settings 
1
Set the MENU button to ON.
Press the MENU button to light its indicator.
2
Set PRESET MEMORY/MENU 10 button
(SYSTEM) to ON.
When the button is pressed and its indicator is lit, the
[SYSTEM] menu is displayed on the LCD panel.

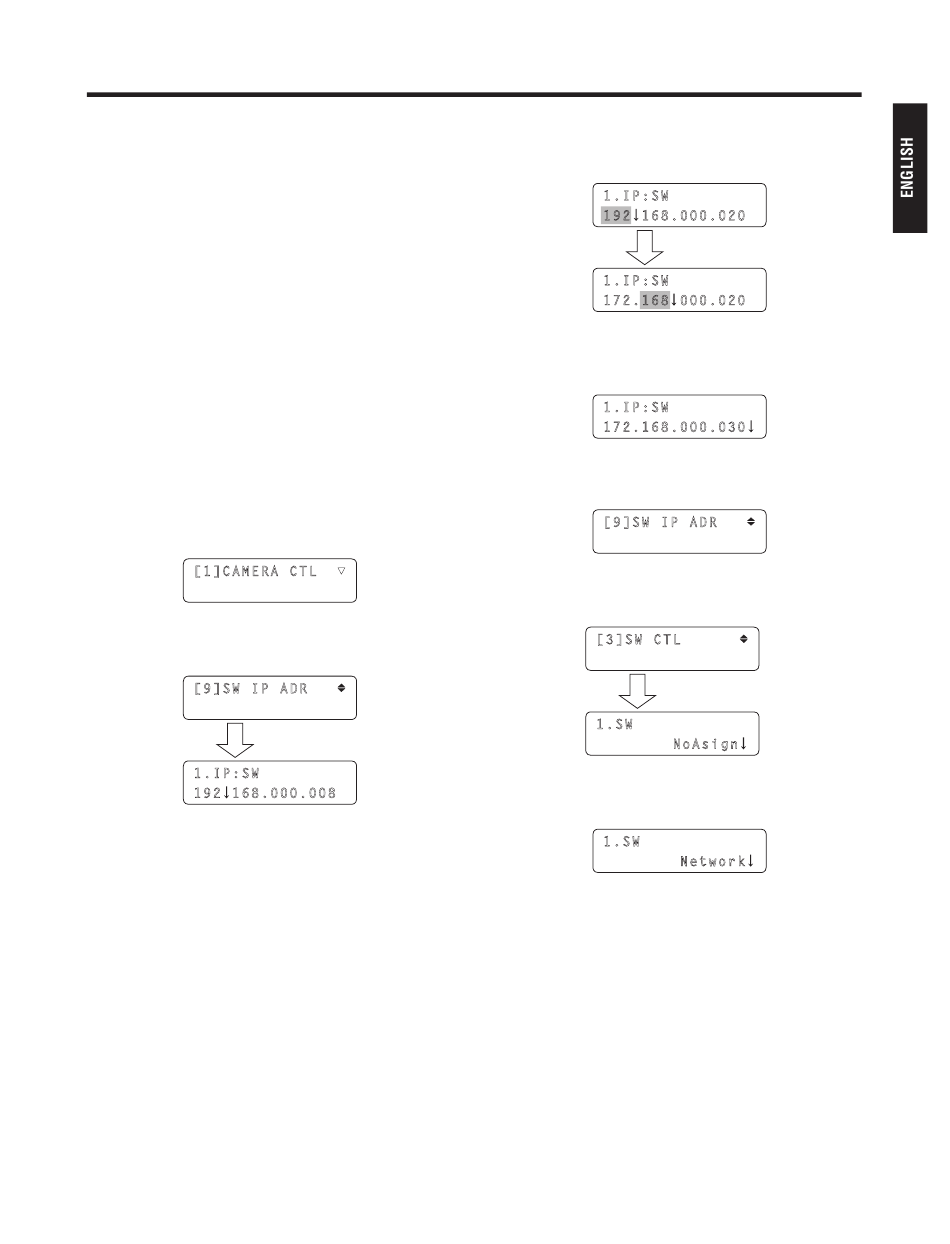

[1]CAMERA CTL
3
Turn the F1 dial, display the SW IP ADR menu,
and press the F1 dial.
[9]SW IP ADR
Press the F1 dial.
1.IP:SW
192 168.000.008
All manuals and user guides at all-guides.com
▼
26 (E)
4
Turn the F2 dial, select the IP address, and then
press the F2 dial to enter the selection.
Set the IP address which has been set in the switcher.
1.IP:SW
192 168.000.020
Turn the F2 dial, and then press
it.
1.IP:SW
172.168 000.020
Input the IP address in four blocks of numerals.
When input advances to the last block and the F2 dial is
pressed, the IP address is entered.
1.IP:SW
172.168.000.030
5
Press the EXIT button.
Operation now returns to the SW IP ADR menu.
[9]SW IP ADR
6
Turn the F1 dial to display the SW CTL menu,
and press the F1 dial.
[3]SW CTL
Press the F1 dial.
1.SW
NoAsign
7
Turn the F2 dial to select "Network", and then
press the F2 dial to enter the selection.
1.SW
Network
