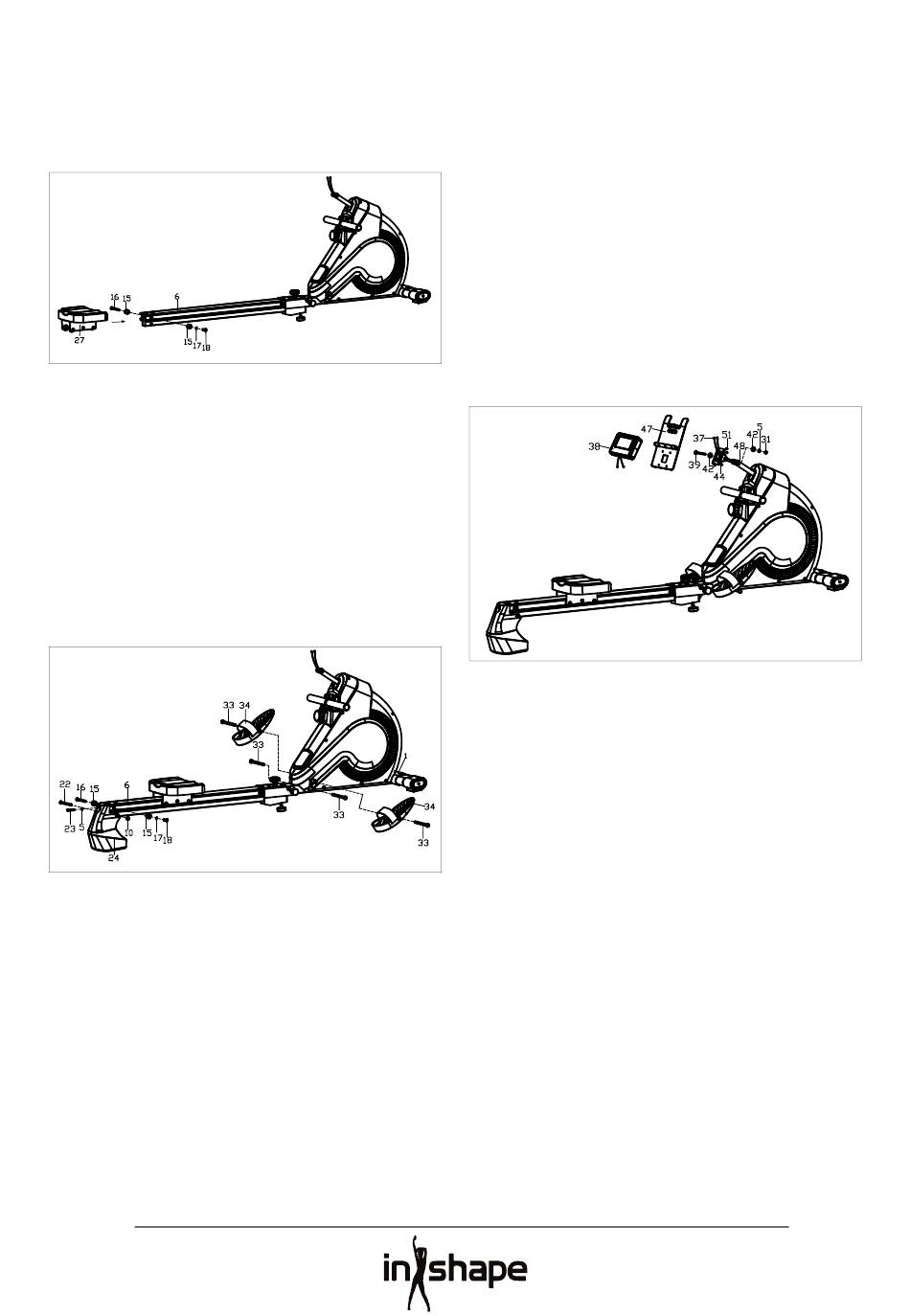

Step 3:
First remove the axle for the end stop (16),
the end stop (15), washer (17) and star screw
(18) and then attach the sliding seat (27) to
the guide rail (6) as shown by the arrow.
Step 4:
A: Tighten the base (24) securely to the guide
rail (6) using the internal hexagonal screw
(22), nylon nut (10), the internal hexagonal
screw (23) and washer (5).
B: Attach the end stop (15) to the guide rail
(6) with the axle for the end stop (16), the
washer (17) and star screw (18).
C: Attach the base support (34) to the main
frame (1) using the long bolt (33).
36
Step 5:
A: Feed the sensor
the console bracket (44),
and then secure the console bracket (44) and
crank (48) using the bolt (39), buff er 1 (42),
washer (5) and nylon nut (31).
B: Feed the sensor
cable (37) through
the iPad holder (47),
sensor cable (37) to the console's cable (38).
Feed the cables into the console's screening
and � nally secure the console (38) and the
iPad holder (47) to the console bracket using
the screw (51).
cable (37) through
and then connect the
