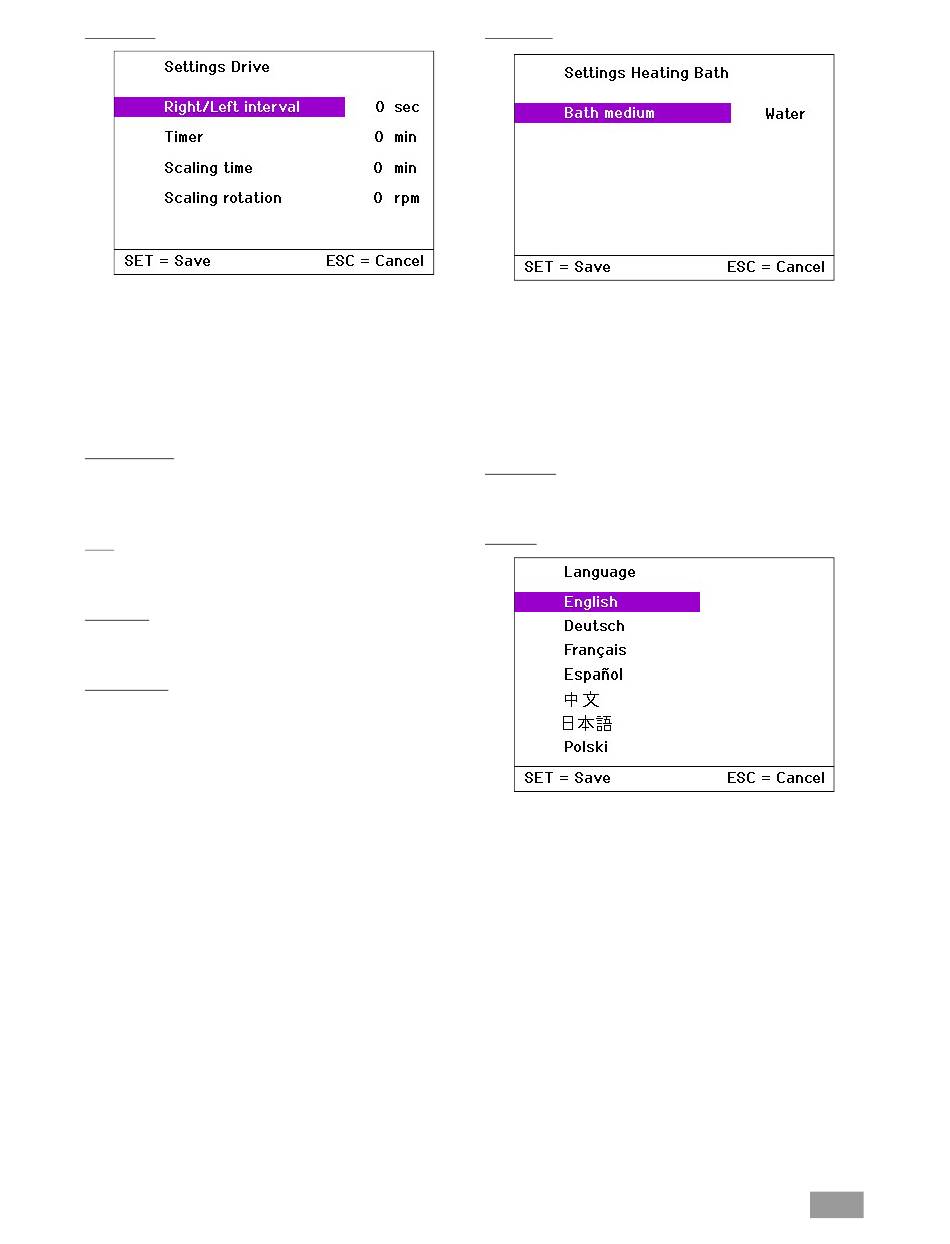

Drive settings
 Turn the Rotating/ Pressing knob to the right/left to select a menu
option.
 Press the Rotating/ Pressing knob.
 Turn the Rotating/ Pressing knob to change the value (the magnitude
of the change is dependent on the speed at which the knob is turned).
 Press the Rotating/ Pressing knob again to complete the process.
SET key: Exit menu and save changes.
ESC key: Exit menu without saving changes.
Right/left interval
Setting a particular value X for the right/left interval will cause the drive
to change the direction of rotation every X seconds.
Note: In interval mode the maximum speed is limited to 200 rpm.
Timer
The timer value determines the time after which a manual distillation will
be stopped.
Time scaling
The time axis of the vacuum-rotation-time graph is scaled using the value
specified here. If the value = 0, then the time axis is scaled automatically.
Rotation scaling
The rotation axis of the vacuum-rotation-time graph is scaled using the
value specified here. If the value = 0, then the rotation axis is scaled
automatically.
All manuals and user guides at all-guides.com
Bath settings
 Turn the Rotating/ Pressing knob to the right/left to select a menu
 Press the Rotating/ Pressing knob.
 Turn the Rotating/ Pressing knob to change the value (the magnitude
 Press the Rotating/ Pressing knob again to complete the process.
SET key: Exit menu and save changes.
ESC key: Exit menu without saving changes.
Medium bath
Select either water or oil as the medium for the heating bath.
Language
 Turn the Rotating/ Pressing knob to the left/right to select the langua-
 Confirm the selection by pressing SET.
option.
of the change is dependent on the speed at which the knob is turned).
ge.
