Water

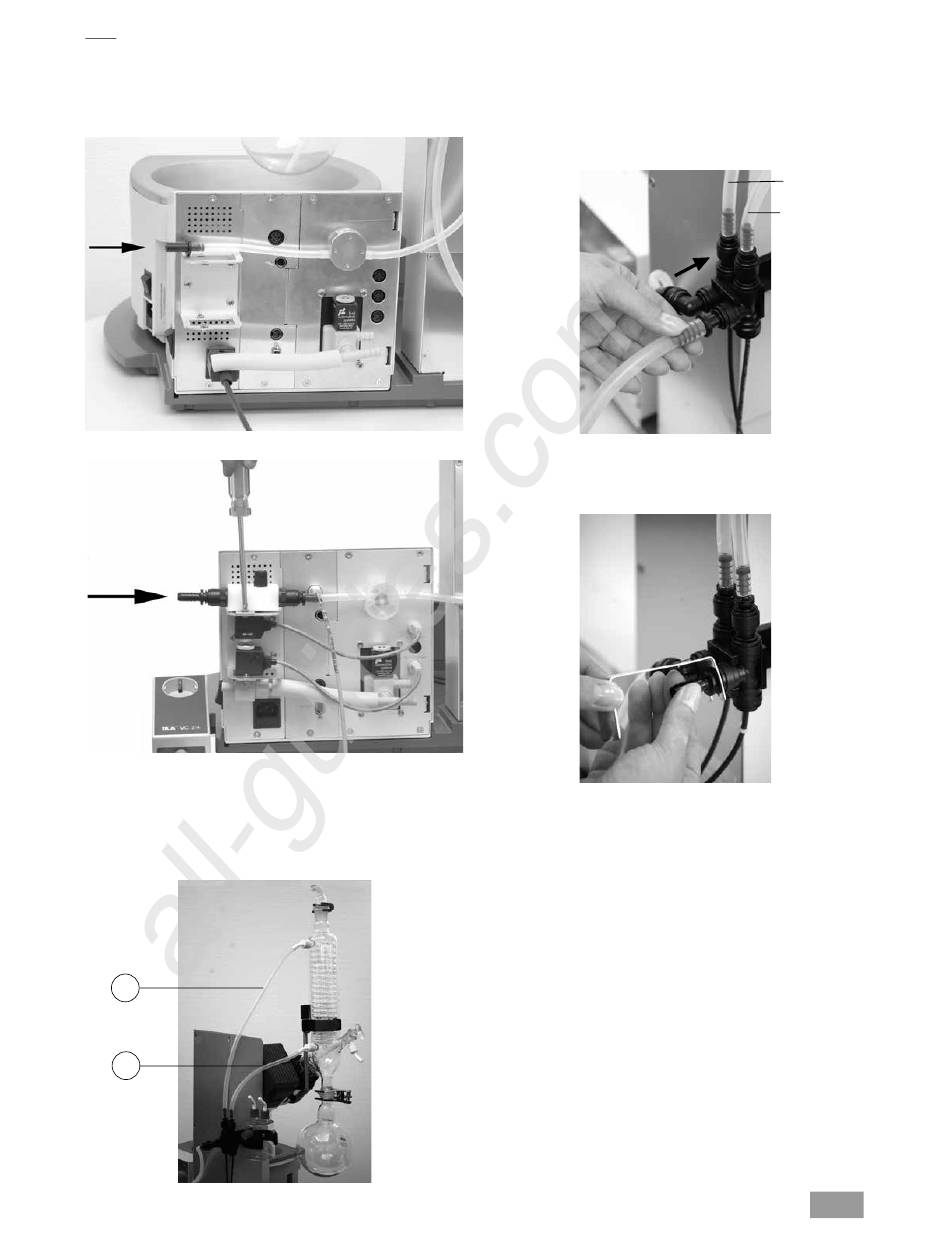

 Connect the water inlet to the water supply (Figure 16a; Figure 16b with
optional RV 10.5001 water regulator valve). Please refer to the technical
specifications relating to the water supply.
The RV 10.5001 water regulator valve is not suitable for use on the
condenser unit because it would reduce the flow rate too greatly
Water
inlet
Water
inlet
 Connect the water hoses to the glass condenser (short hose (O) = lower
outlet, long hose (P) = upper inlet) and fix hoses in place (fig. 17).
Note: For special condensers see "Description of special condensers" section.
P
O
All manuals and user guides at all-guides.com
 Connect the water outlet hose (supplied) by pushing it onto the nipple
Fig. 16a
 Release the hose connection using the supplied tool.
Fig. 16b
Fig. 17
until the stop inside the connection socket is reached (fig. 18).
Caution! Ensure that the condenser inlet and condenser outlet are con-
nected correctly.
Automatic distillation cannot be carried out if the water inlet and outlet
hoses are not fitted according to the instructions and illustrations acc.
fig. 14, since this would cause the temperature readings for the inlet and
outlet to be measured incorrectly.
Inlet
condenser
Outlet
condenser
Fig. 18
Fig. 19
