2.3

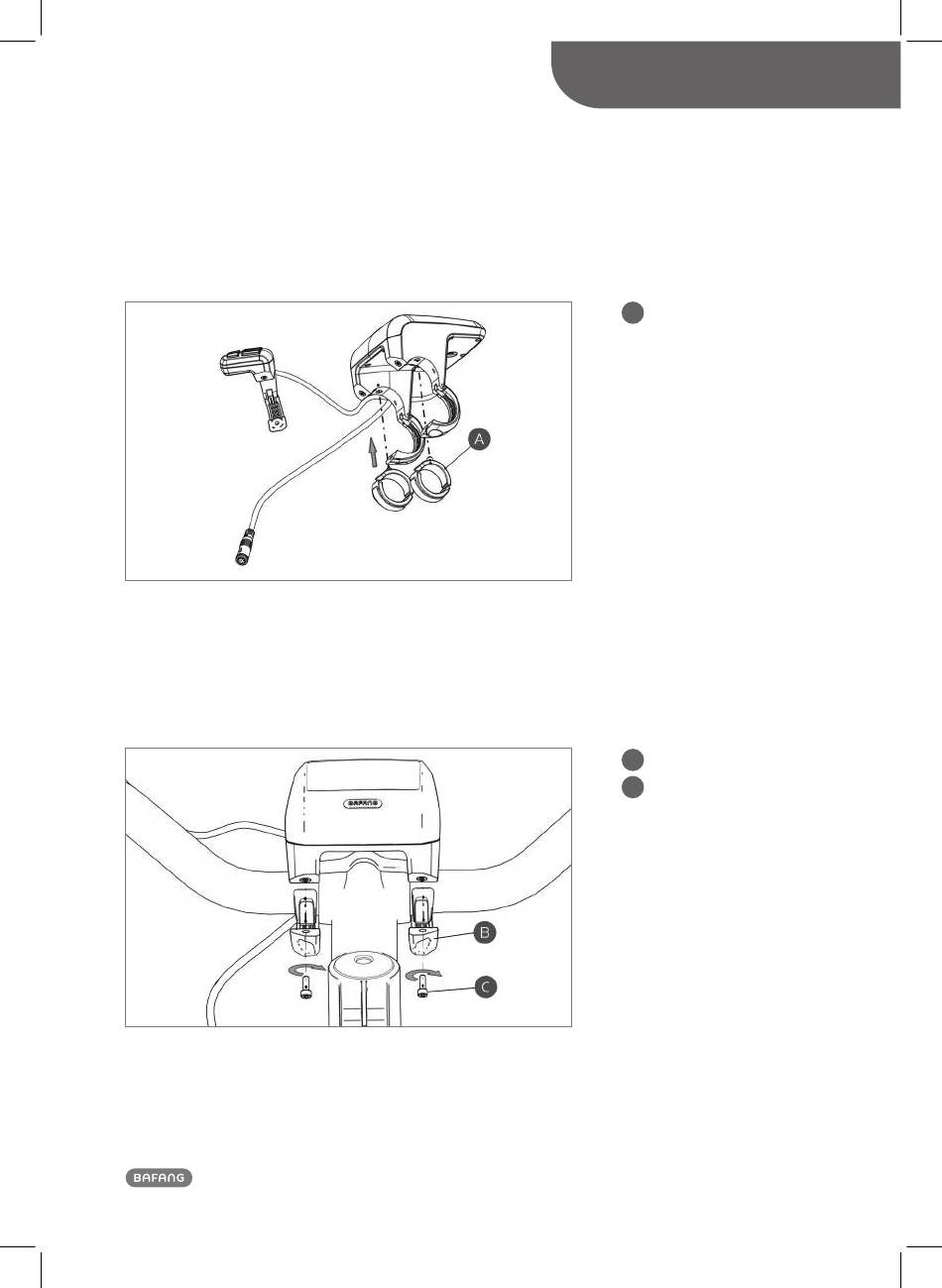

Display installation (Dp C01.rS232.7)

one or two rubber clamping rings may be needed depending on the diameter of the
handlebar (the applicable handlebar specifications are Ø 22.2, Ø 25.4 and Ø 31.8).
open the left or right display clamp, and insert one or two clamping rings into the
right position of the display clamp as shown in the picture above.
Insert the clamping ring(s) to each of the two display clamps and mount them onto the handlebar. use an internal hex
wrench to fasten the left and right clamps onto the handlebar.
DEALER MAnuAL Max Drive SySteM
SyStEM InStALLAtIon
Rubber clamping ring
A
(whose inner diameter is
Ø 22.2 or Ø 25.4)
2316020400007
2316020400008
Left and right display
clamps for the Ø 22.2
handlebar:
Left clamp
-2316020400017
Right clamp
-2316020400018
Left and right display
clamps for the Ø 25.4
handlebar:
Left clamp
-2316020400007
Right clamp
-2316020400008
display clamp
b
hex socket head cap
C
screws M4×8
12
