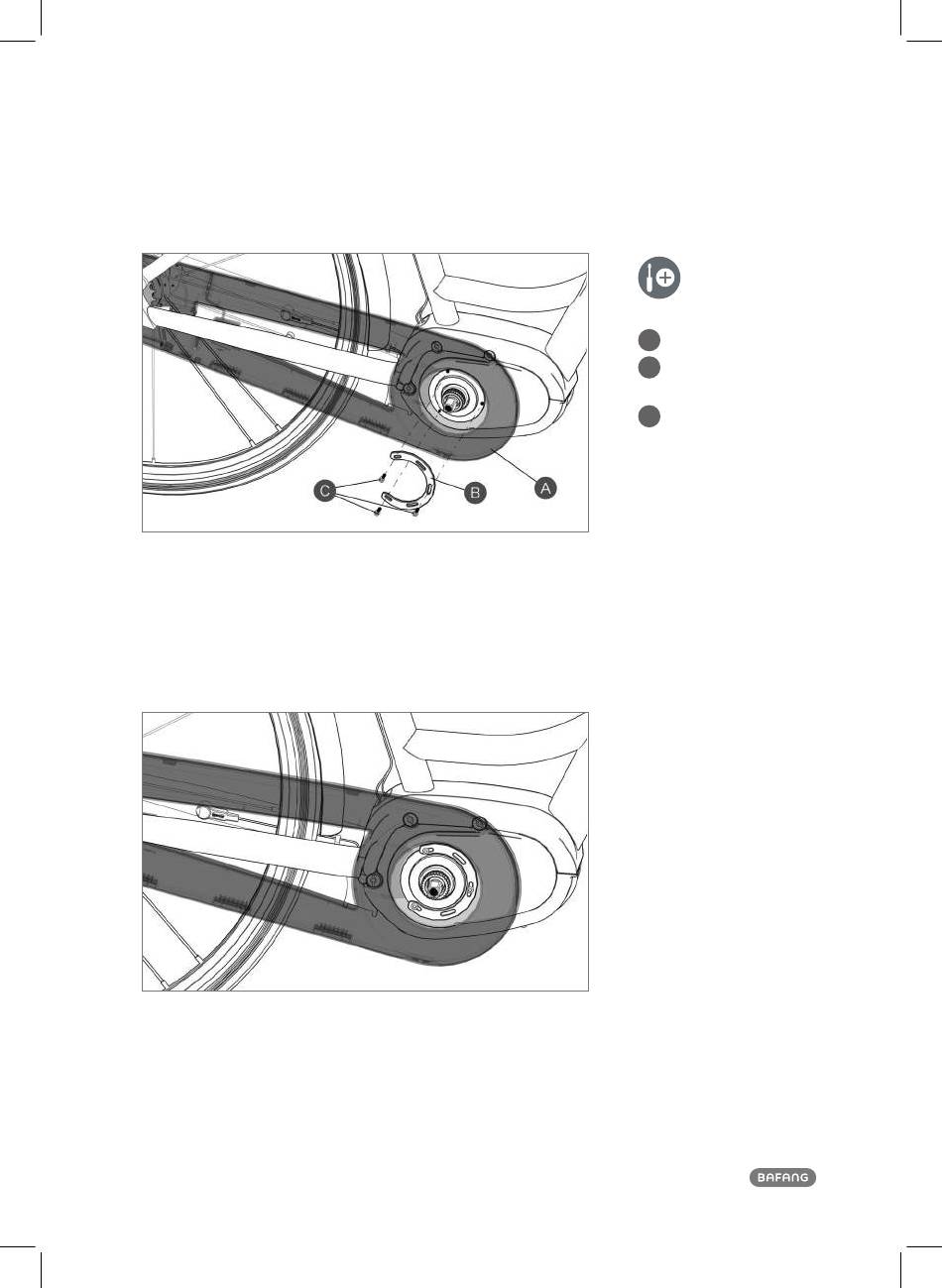

open the full chain guard and adjust it by following the instruction book. Make sure the outer wall of the full chain
guard is aligned with the boss on the outer side of the drive unit. then press the inner wall of the full chain guard
onto the binder plate and fasten them with screws.
tightening torque: 2 nm
31
full chain guard
A
binder plate
b
1401150100004
screws M4
C
1401020000111
