2 SySteM inStallation

2.1

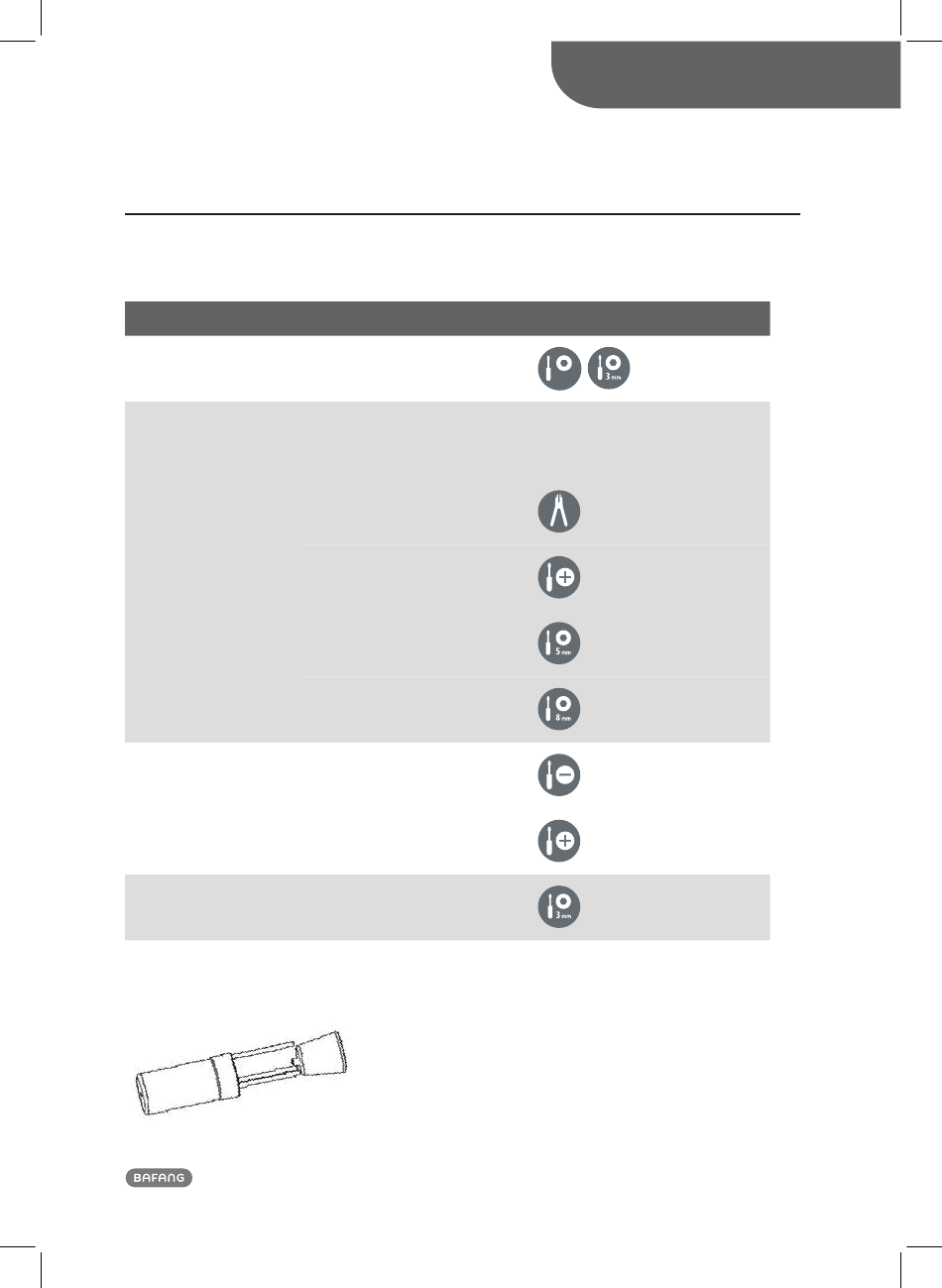

list of tools to be used

Components
Display
Drive unit
Speed Sensor
Battery
the tool used to install the retaining ring onto the hub
tool code (GZ-MM G31-5025)
DEALER MAnuAL Max Drive SySteM
Use of the Tools
to tighten M3 & M4 screws
to fix the chain
wheel retaining
ring
to remove the chain wheel retaining
ring
to tighten M4 screws on the chain
guard
to fasten M6 bolts and nuts onto the
frame adapter and the drive unit
to fasten M8 screws on the crank
mounting
to install the iron magnet
to tighten M5 screws of the speed
sensor
to fasten the battery plate onto the
carrier using M5 screws
SyStEM InStALLAtIon
Tools
Internal hex wrench
2,5
mm
Special tool
Plier for the
retaining ring
Cross screwdriver
Internal hexagonal
wrench
Internal hexagonal
wrench
Straight slot
screwdriver
Phillips screwdriver
Internal hex wrench
10
