3 SySteM CaBlinG

3.1

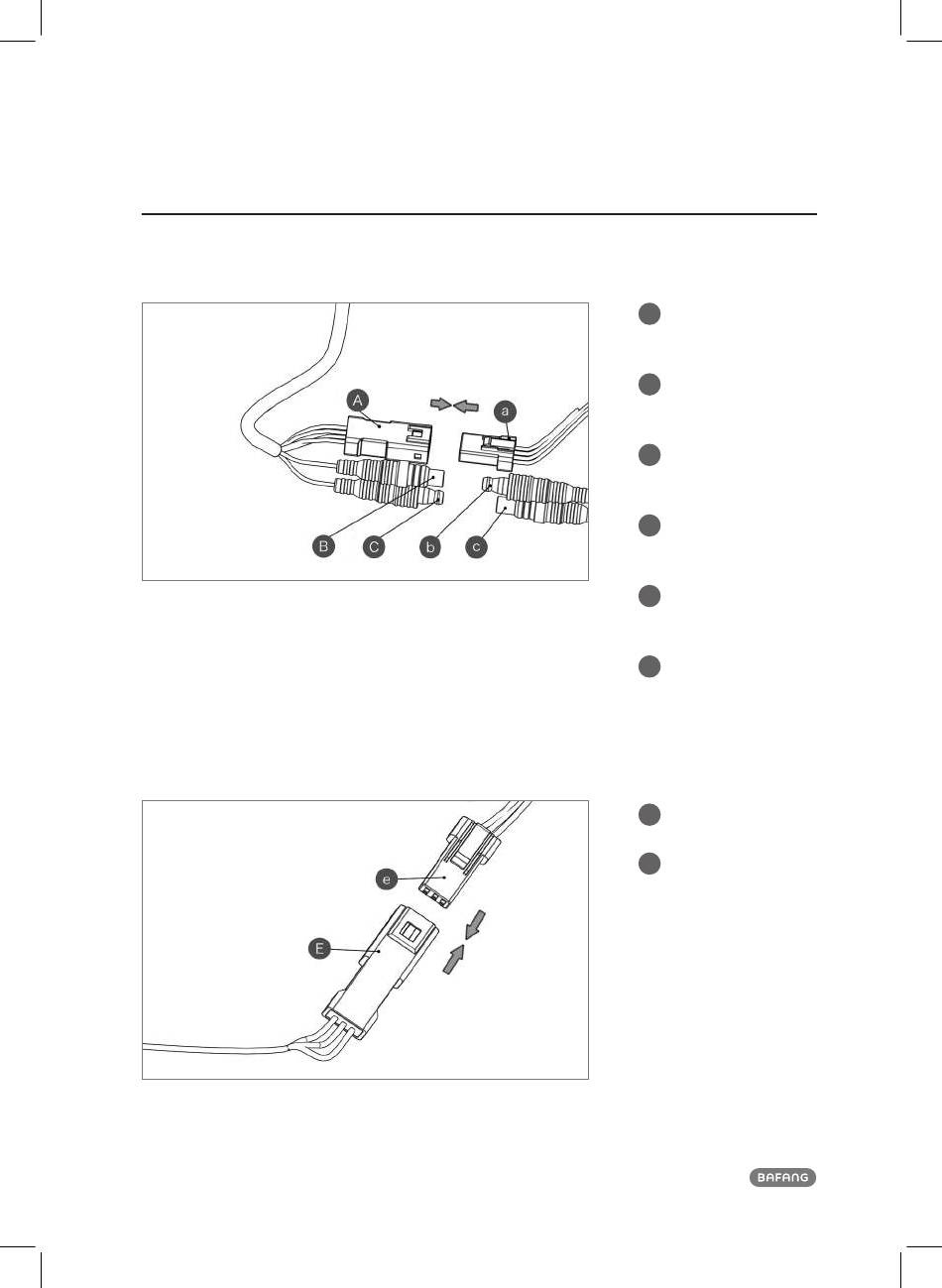

Connection of the Battery Cable to the Drive unit

the power bus, which is made up of a positive battery cable, a negative battery
cable and battery communication cables, is connected to the battery cables at the
drive unit.
3.2

Connection of the Speed Sensor to the Drive unit

Link the male connector at the external speed-detecting sensor to the female connector for the external speed-
detecting sensor cable at the drive unit.
25
female connector for the
A
communication cables at
the battery
a male connector for the
communication cables at
the drive unit
female connector for
b
the positive cable at the
battery
male connector for the
b
negative cable at the
drive unit
male connector for the
C
negative cable at the
battery
c female connector for the
negative cable at the
drive unit
male connector at the
e
speed sensor
e
female connector at the
drive unit for connection
to the speed sensor
