SyStEM InStALLAtIon

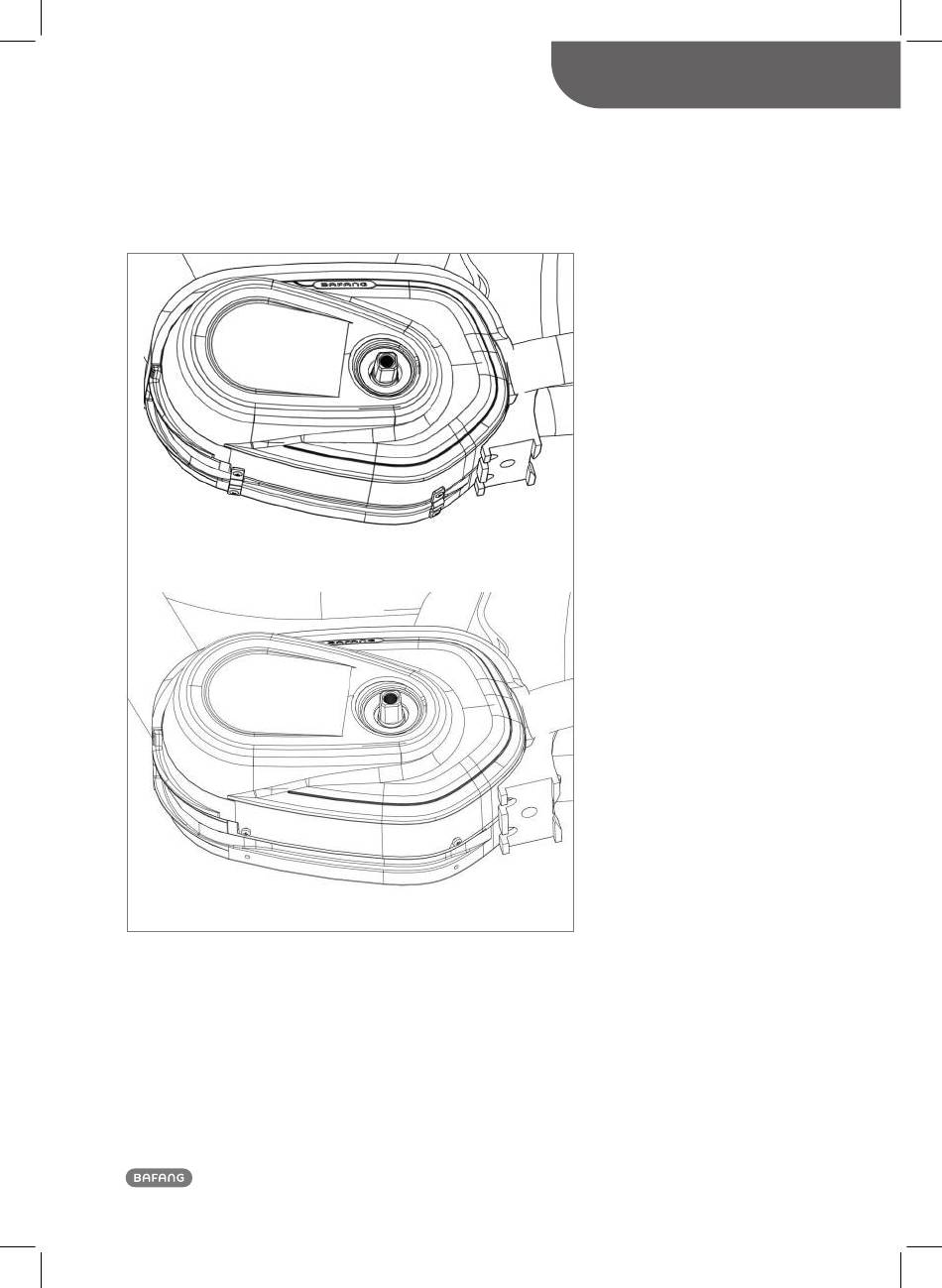

Figure 3
Figure 4
Figures above show how the drive unit looks like when the drive unit cover has been affixed.
Brake cables and gear cables can either be arranged in the channel at the bottom of the drive unit (see Figure 3
where cable gatherers are provided) or within the inner space of the frame adapter (see Figure 4 where no cable
gatherers are provided).
