Crank installation

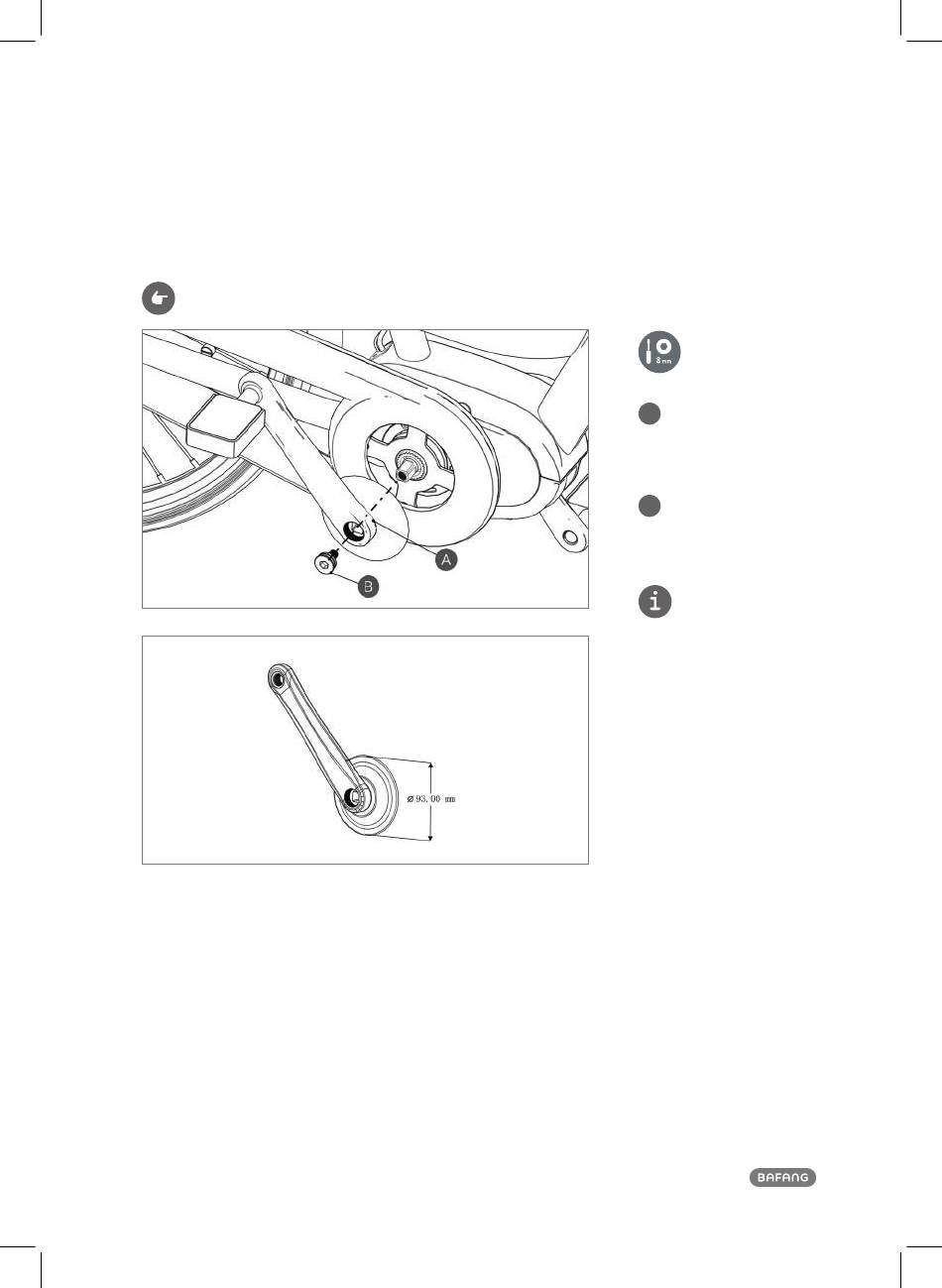

Installation of the crank with a chain guard
Fasten the right crank onto the bottom bracket on the right with a screw M8. Install the left crank in the same way.
torque: 35 – 40 nm
37
right straight crank with
A
a cap 1327040000001
left straight crank
1327020000001
screws M8 for mounting
b
the crank
1401020000109
Different right cranks are
used depending on the
chain guard.
